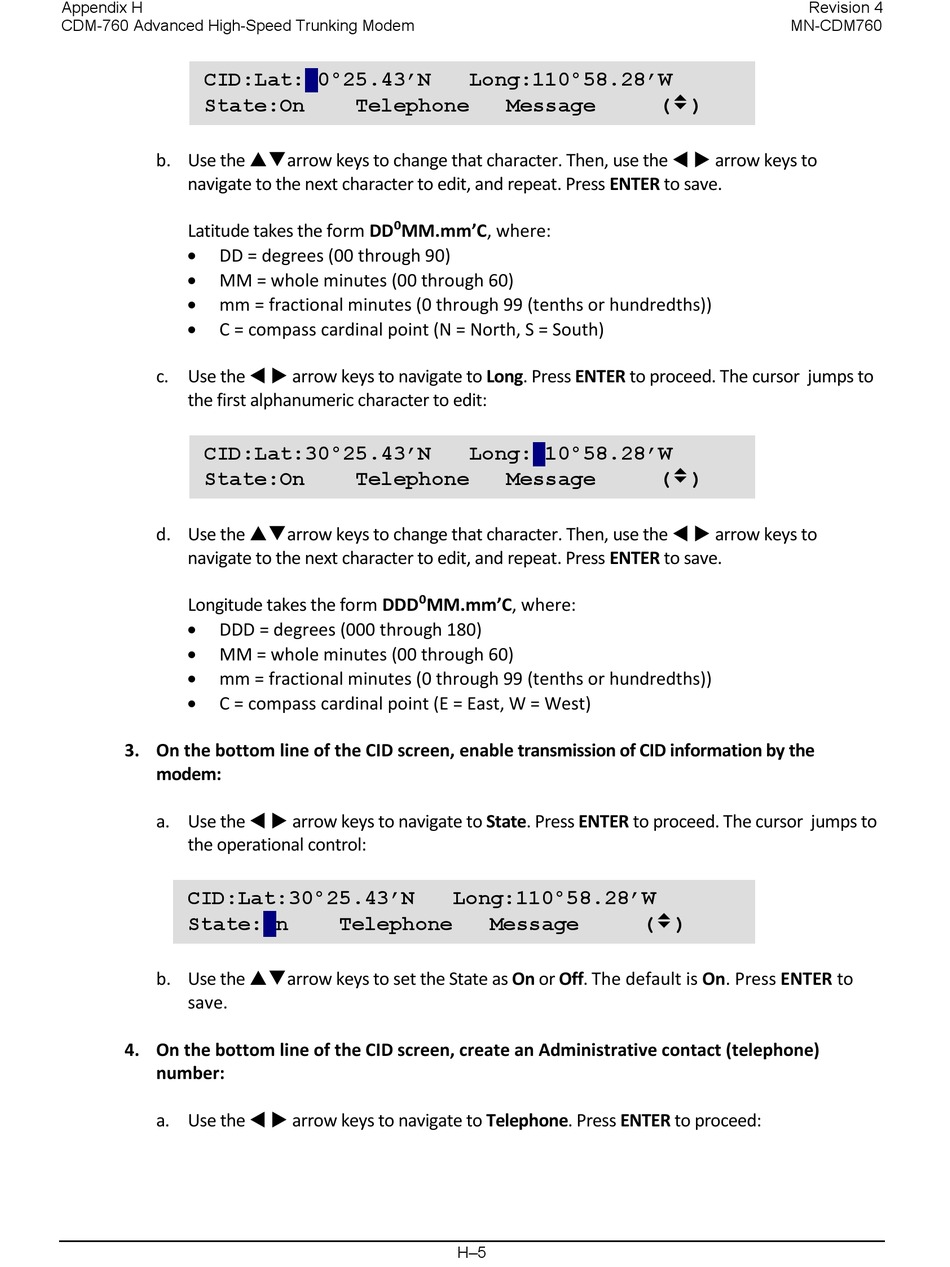

Comtech EF Data CDM-760 Installation And Operation Manual page 386

Appendix H
CDM-760 Advanced High-Speed Trunking Modem
CID:Lat: 0°25.43'N
State:On
b. Use the arrow keys to change that character. Then, use the   arrow keys to
navigate to the next character to edit, and repeat. Press ENTER to save.
Latitude takes the form DD⁰MM.mm'C, where:
•
DD = degrees (00 through 90)
•
MM = whole minutes (00 through 60)
•
mm = fractional minutes (0 through 99 (tenths or hundredths))
• C = compass cardinal point (N = North, S = South)
c. Use the   arrow keys to navigate to Long. Press ENTER to proceed. The cursor jumps to
the first alphanumeric character to edit:
CID:Lat:30°25.43'N
State:On
d. Use the arrow keys to change that character. Then, use the   arrow keys to
navigate to the next character to edit, and repeat. Press ENTER to save.
Longitude takes the form DDD⁰MM.mm'C, where:
•
DDD = degrees (000 through 180)
•
MM = whole minutes (00 through 60)
•
mm = fractional minutes (0 through 99 (tenths or hundredths))
•
C = compass cardinal point (E = East, W = West)
3. On the bottom line of the CID screen, enable transmission of CID information by the
modem:
a. Use the   arrow keys to navigate to State. Press ENTER to proceed. The cursor jumps to
the operational control:
CID:Lat:30°25.43'N
State: n
b. Use the arrow keys to set the State as On or Off. The default is On. Press ENTER to
save.
4. On the bottom line of the CID screen, create an Administrative contact (telephone)
number:
a. Use the   arrow keys to navigate to Telephone. Press ENTER to proceed:
Long:110°58.28'W
Telephone Message
Long: 10°58.28'W
Telephone Message
Long:110°58.28'W
Telephone Message
H–5
Revision 4
MN-CDM760
( )

( )

( )

