Front Panel Operation
CDM-760 Advanced High-Speed Trunking Modem
Step
3

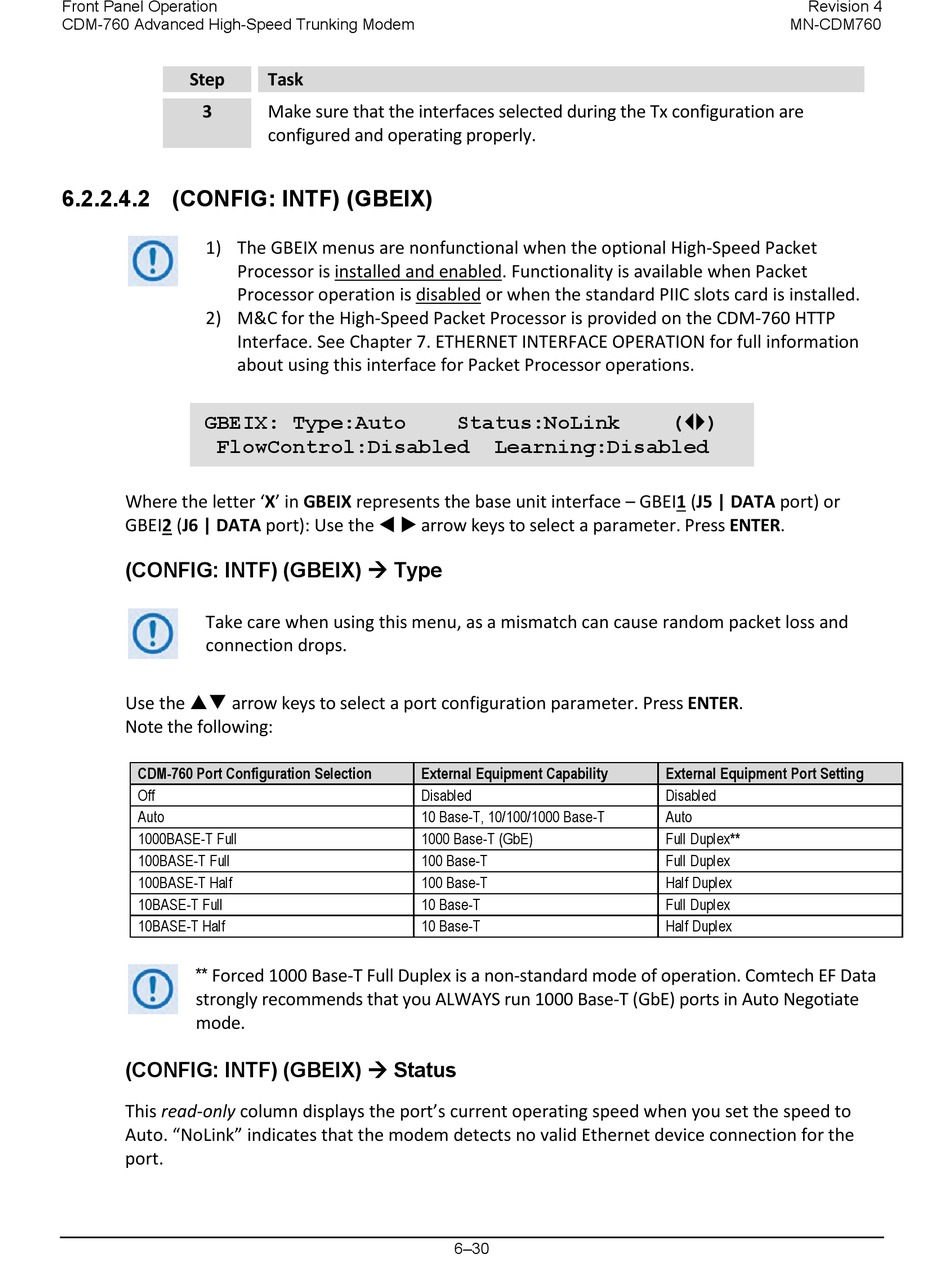

6.2.2.4.2 (CONFIG: INTF) (GBEIX)

1) The GBEIX menus are nonfunctional when the optional High-Speed Packet
Processor is installed and enabled. Functionality is available when Packet
Processor operation is disabled or when the standard PIIC slots card is installed.
2) M&C for the High-Speed Packet Processor is provided on the CDM-760 HTTP
Interface. See Chapter 7. ETHERNET INTERFACE OPERATION for full information
about using this interface for Packet Processor operations.
GBEIX: Type:Auto
FlowControl:Disabled
Where the letter 'X' in GBEIX represents the base unit interface – GBEI1 (J5 | DATA port) or
GBEI2 (J6 | DATA port): Use the   arrow keys to select a parameter. Press ENTER.
(CONFIG: INTF) (GBEIX)  Type
Take care when using this menu, as a mismatch can cause random packet loss and
connection drops.
Use the  arrow keys to select a port configuration parameter. Press ENTER.
Note the following:
CDM-760 Port Configuration Selection
Off
Auto
1000BASE-T Full
100BASE-T Full
100BASE-T Half
10BASE-T Full
10BASE-T Half
** Forced 1000 Base-T Full Duplex is a non-standard mode of operation. Comtech EF Data
strongly recommends that you ALWAYS run 1000 Base-T (GbE) ports in Auto Negotiate
mode.
(CONFIG: INTF) (GBEIX)  Status
This read-only column displays the port's current operating speed when you set the speed to
Auto. "NoLink" indicates that the modem detects no valid Ethernet device connection for the
port.
Task
Make sure that the interfaces selected during the Tx configuration are
configured and operating properly.
External Equipment Capability
Disabled
10 Base-T, 10/100/1000 Base-T
1000 Base-T (GbE)
100 Base-T
100 Base-T
10 Base-T
10 Base-T
Status:NoLink
Learning:Disabled
6–30
Revision 4
MN-CDM760
()
External Equipment Port Setting
Disabled
Auto
Full Duplex**
Full Duplex
Half Duplex
Full Duplex
Half Duplex
