C.2.2 OC-3 Single/Multi Mode PIIC Module Kits (CEFD P/N
KT-0000256/257)
Item
KT-0000256
1 1
1
2
–

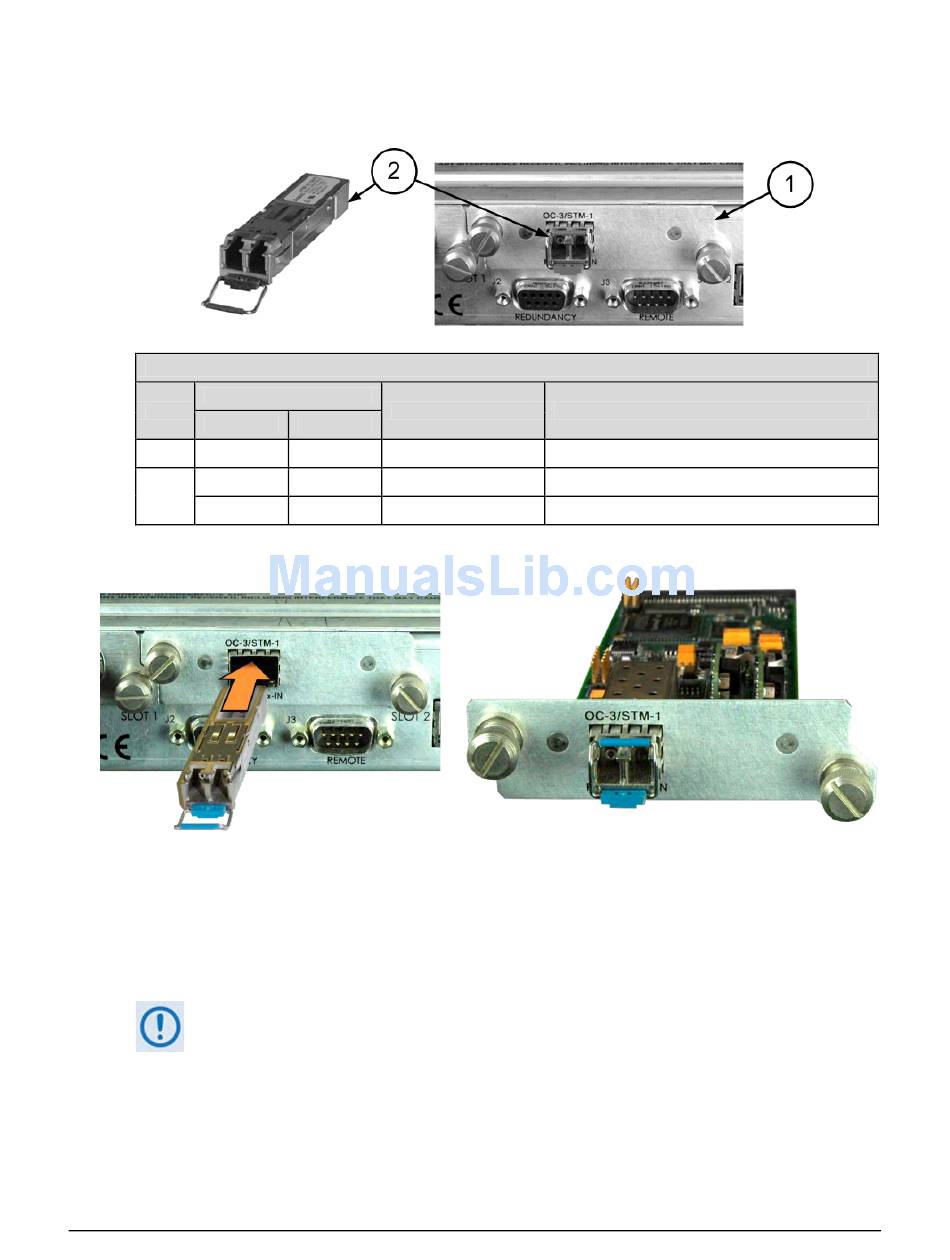

Figure C-6. OC-3 Single Mode or Multi Mode PIIC Module Kit (CEFD P/N KT-000025X)
Figure C-7. OC-3 Single Mode or Multi Mode PIIC Module – SFP Installation
Use the OC-3 Single or Multi Mode PIIC module in either of the CDM-760 rear panel interface
option slots. The PIIC module features an SFP (Small Form Factor Pluggable) docking cage that
accepts either the Comtech EF Data OC-3 Single Mode or Multi Mode SFP transceiver module
(Figure C-9).
User-supplied standard modules (SFP Multi-Source Agreement (MSA) SFF-8074i
and SFF-8472 Rev. 9.3) may be used, but Comtech EF Data does not guarantee
interoperability.
See Figure C-2 for installation of a PIIC module into an available PIIC interface slot.
KT-000256/257 OC-3 Single Mode or Multi Mode PIIC Module Kits
Quantity
CEFD Part Number
KT-0000257
1 PL-0001067
– IC-0000687
1 IC-0000690
Description
PIIC Module
SFP OC-3 Single Mode Optical Transceiver Module
SFP OC-3 Multi Mode Optical Transceiver Module
