Front Panel Operation
CDM-760 Advanced High-Speed Trunking Modem

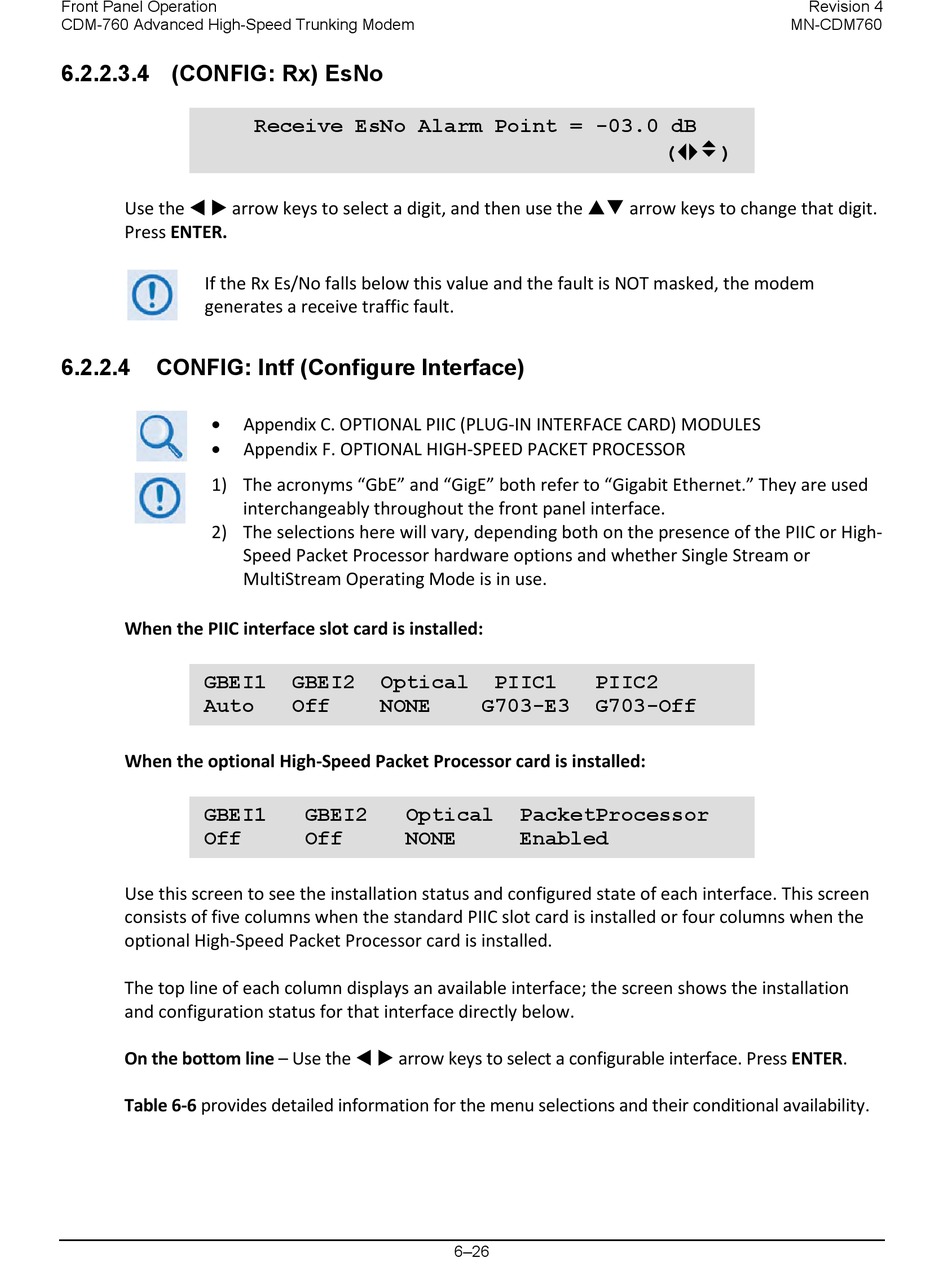

6.2.2.3.4 (CONFIG: Rx) EsNo

Use the   arrow keys to select a digit, and then use the  arrow keys to change that digit.
Press ENTER.
If the Rx Es/No falls below this value and the fault is NOT masked, the modem
generates a receive traffic fault.
6.2.2.4

CONFIG: Intf (Configure Interface)

•
•
1) The acronyms "GbE" and "GigE" both refer to "Gigabit Ethernet." They are used
2) The selections here will vary, depending both on the presence of the PIIC or High-
When the PIIC interface slot card is installed:
GBEI1
Auto
When the optional High-Speed Packet Processor card is installed:
GBEI1
Off
Use this screen to see the installation status and configured state of each interface. This screen
consists of five columns when the standard PIIC slot card is installed or four columns when the
optional High-Speed Packet Processor card is installed.
The top line of each column displays an available interface; the screen shows the installation
and configuration status for that interface directly below.
On the bottom line – Use the   arrow keys to select a configurable interface. Press ENTER.
Table 6-6 provides detailed information for the menu selections and their conditional availability.
Receive EsNo Alarm Point = -03.0 dB
Appendix C. OPTIONAL PIIC (PLUG-IN INTERFACE CARD) MODULES
Appendix F. OPTIONAL HIGH-SPEED PACKET PROCESSOR
interchangeably throughout the front panel interface.
Speed Packet Processor hardware options and whether Single Stream or
MultiStream Operating Mode is in use.
GBEI2 Optical
Off NONE
GBEI2 Optical
Off NONE
PIIC1 PIIC2
G703-E3 G703-Off
PacketProcessor
Enabled
