Ethernet Interface Operation
CDM-760 Advanced High-Speed Trunking Modem
•
NetSpec (Network Specification) – DVB-S2-EB2, DVB-S2-EB1, DVB-S2, or DVB-S2X.
•
Symbol Rate
These parameters are shown to provide you with a more complete representation of user
capacity, when viewed in conjunction with the other graphs provided on this page.
7.4.4.4.8.4
Status | Performance | CPU Usage
This page is accessible only to Admin users when the optional High-Speed Packet
Processor card is installed and enabled. See Sect. 7.4.3.1 for information about
using conditional access pages.
This read-only page displays the Packet Processor's Aggregate and Core CPU utilization as a
percentage (%).
Click [Refresh] to clear/reset the page statistics buffers.

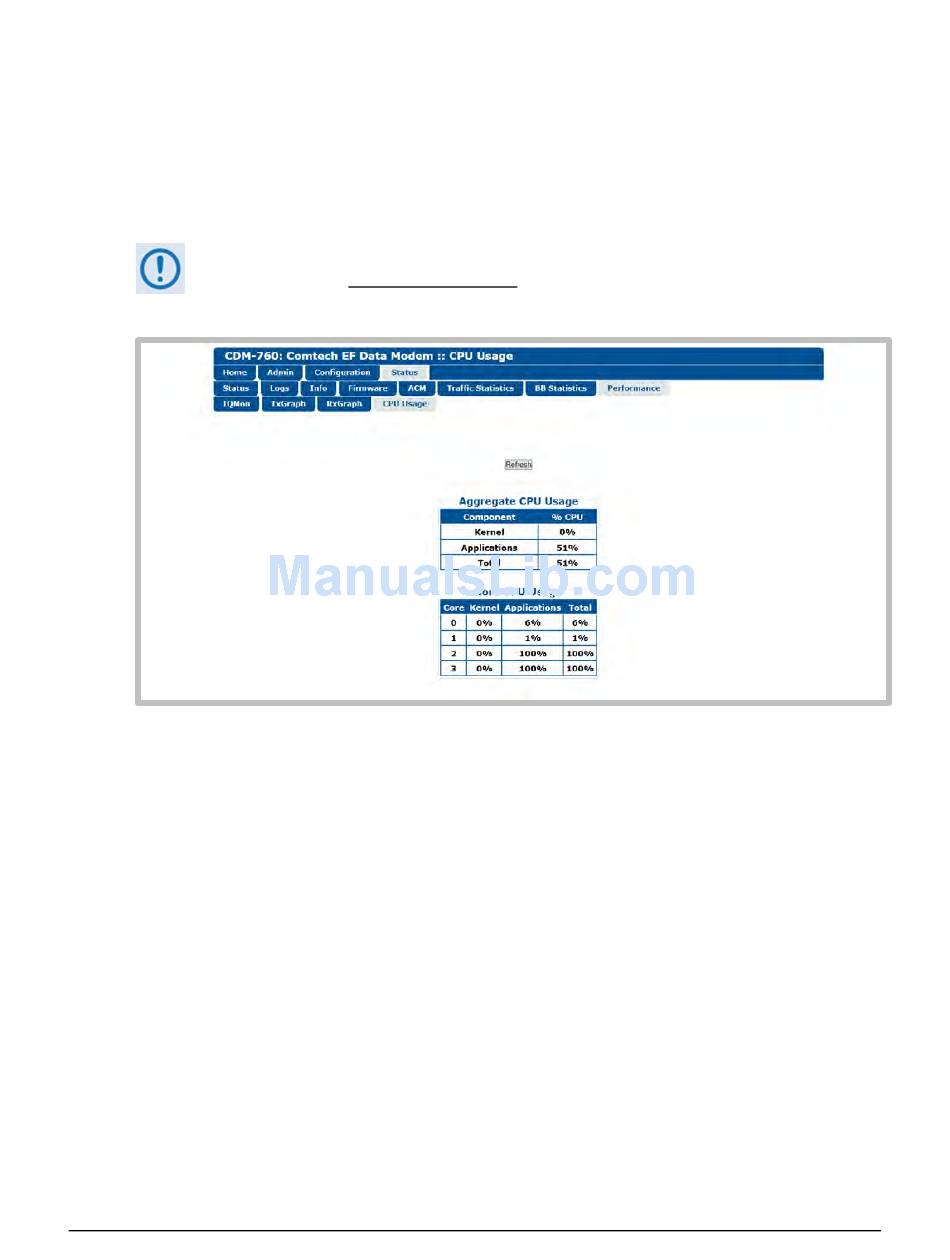

Figure 7-49. Status | Performance | CPU Usage Page
7–75
Revision 4
MN-CDM760
