CDM-625 Advanced Satellite Modem
Ethernet Management
6.5.4.2.2 Admin | SNMP Page
The 'Admin | SNMP' page (Figure 6-5) sets and returns administration information for the
CDM-625 Simple Network Management Protocol (SNMP) feature.
The Administrator can assign up to two SNMP Trap IP addresses.
The Administrator can assign a SNMP Trap Community String. The factory default for this
parameter is public. The SNMP Trap Community String field can be any combination of characters
and a length of 0 - 20 characters.
Once the desired configuration settings have been made on this page, the user should then click
[Submit Admin] to save these changes.
For details pertaining to the configuration parameters available on this page, refer to Chapter 5.
FRONT PANEL OPERATION and Sect. 6.3 SNMP INTERFACE.

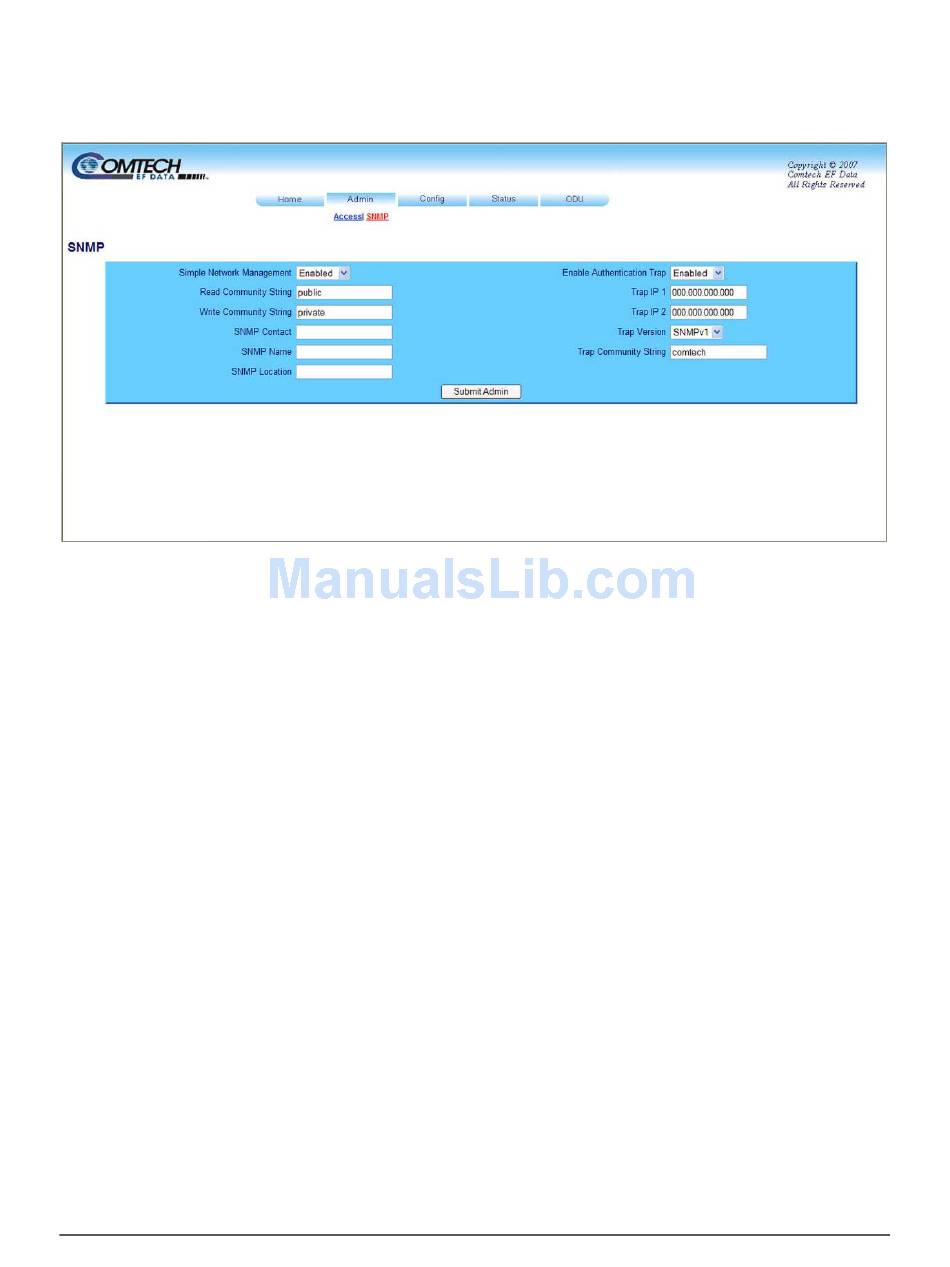

Figure 6-5. Admin | SNMP page

6–12
MN-0000036 (Ref MN/CDM625.IOM)
Revision 1
