Position of Polarization Filters
5.4.3

Installing a Custom Filter

Removing a Filter
80
Fluorescence polarization measurements on the Infinite F200 PRO
require two identical excitation and emission filters placed together
with the polarizers either on the positions 1 and 2 or 3 and 4.
The Infinite F200 PRO filter slide can be equipped with maximal two different
fluorescence polarization filter pairs as each fluorescence polarization
measurement requires two identical excitation and emission filters, which are
placed together with the polarizers either on the position 1 and 2 or 3 and 4.

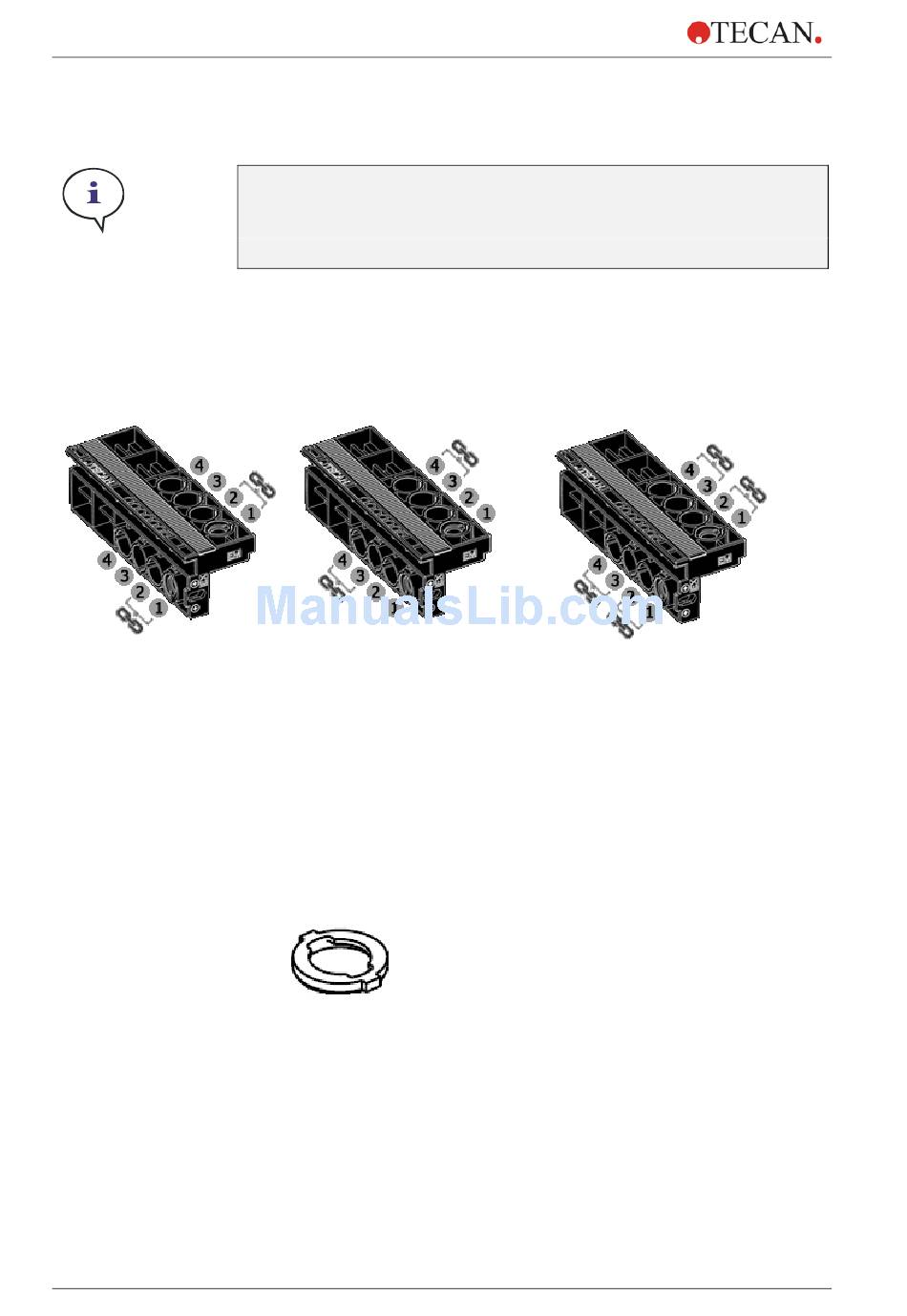

Figure 38: Infinite F200 PRO: Filter slide with the indicated positions for fluorescence
polarization filters and polarizers.
When installing a new filter use the filter assembly tool included in the
accessories case. For installing the polarizers use the soft tweezers (plastic).
1. Align the filter assembly tool with the notch of the stop-ring. Turn the tool and
remove the stop-ring by pulling it out of the filter slot.
2. The filter will slide out of the filter slot when the filter carrier is turned over.
Do not use the filter assembly tool to remove filters.
