5. Operating the Instrument
5.11

Measurements with Injectors

5.11.1 Priming and Washing of the Infinite 200 PRO

STOP
STOP
110
THE INJECTOR CARRIER MUST BE IN THE SERVICE POSITION
PRIME AND WASH MUST NOT BE PERFORMED
WHEN THE INJECTOR IS IN THE INSTRUMENT!
The initial filling step of the injector system (priming) as well as the cleaning step
of the injector system (washing) must take place outside of the instrument.
For these procedures, the injector carrier is removed from instrument and put into
the service position of the injector box.

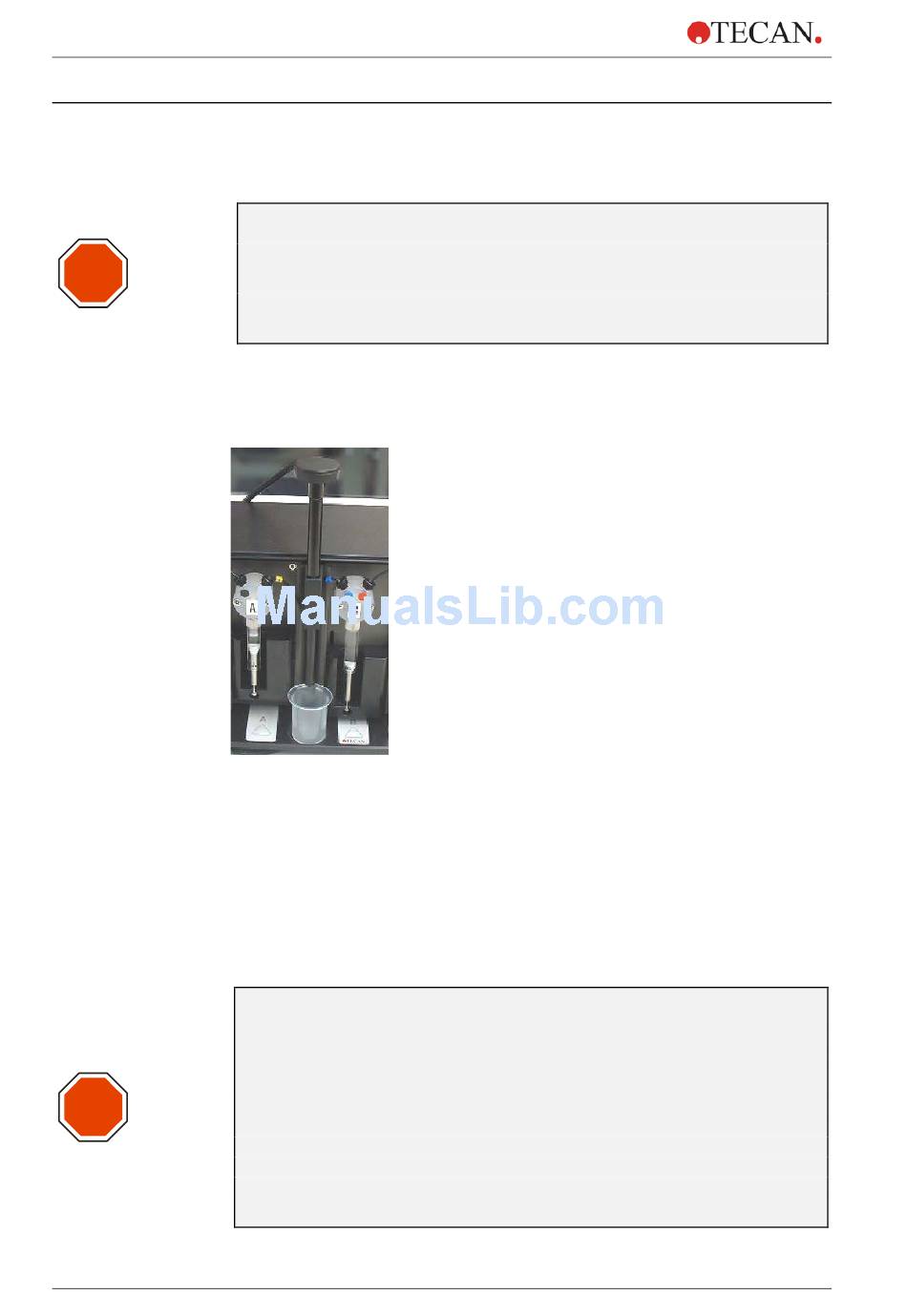

Figure 43: Injector-box with injector in 'service position'; the injectors are removed from the
carrier slot and inserted into the holder of the injector carrier system.
For priming and washing steps of the injector system, a default setting for
injection speed and volume dispensed is provided. If required the priming
parameters can be adjusted in the injector control window of the i-control
software.
The prime volume depends on the tubing length. Two types of injector tubing are
available: 'long': 105 cm, and 'short': 80 cm.
The minimal priming volume is 700 µl for an injector with short tubing and 850 µl
for an injector with long tubing.
DO NOT TOUCH THE INJECTOR NEEDLES. THEY CAN BECOME
EASILY BENT OR MISALIGNED, WHICH CAN CAUSE INJECTION
PROBLEMS OR DAMAGE THE INSTRUMENT.
IF THE INJECTOR CARRIER IS NOT INSERTED CORRECTLY IN THE
INJECTOR PORT, THE INJECTOR SENSOR DOES NOT DETECT THE
INSERTED INJECTOR AND THEREFORE WASHING AND PRIMING IS
ENABLED WHICH CAN DAMAGE THE INSTRUMENT. IN ADDITION TO
THIS, THE ACTIONS 'DISPENSE' AND 'INJECT' WILL NOT BE
IFU for Infinite 200 PRO
CAUTION
FOR WASHING UND PRIMING.
CAUTION
POSSIBLE.
No. 30052730 Rev. No. 1.6 2016-04
