4. Defining Filter Slides (infinite® F200 only)

4.3 Installing a Custom Filter

4.3.1

Removing a Filter

4.3.2

Mounting a Custom Filter

STOP
58
When installing a new filter use the filter assembly tool included in the
accessories case. For installing the polarizers use the soft tweezers (plastic).
1. Align the filter assembly tool with the notch of the stop-ring. Turn the tool
and remove the stop-ring by pulling it out of the filter slot.
Stop-ring
2. The filter will slide out of the filter slot when the filter carrier is turned over.
Do not use the filter assembly tool to remove filters.

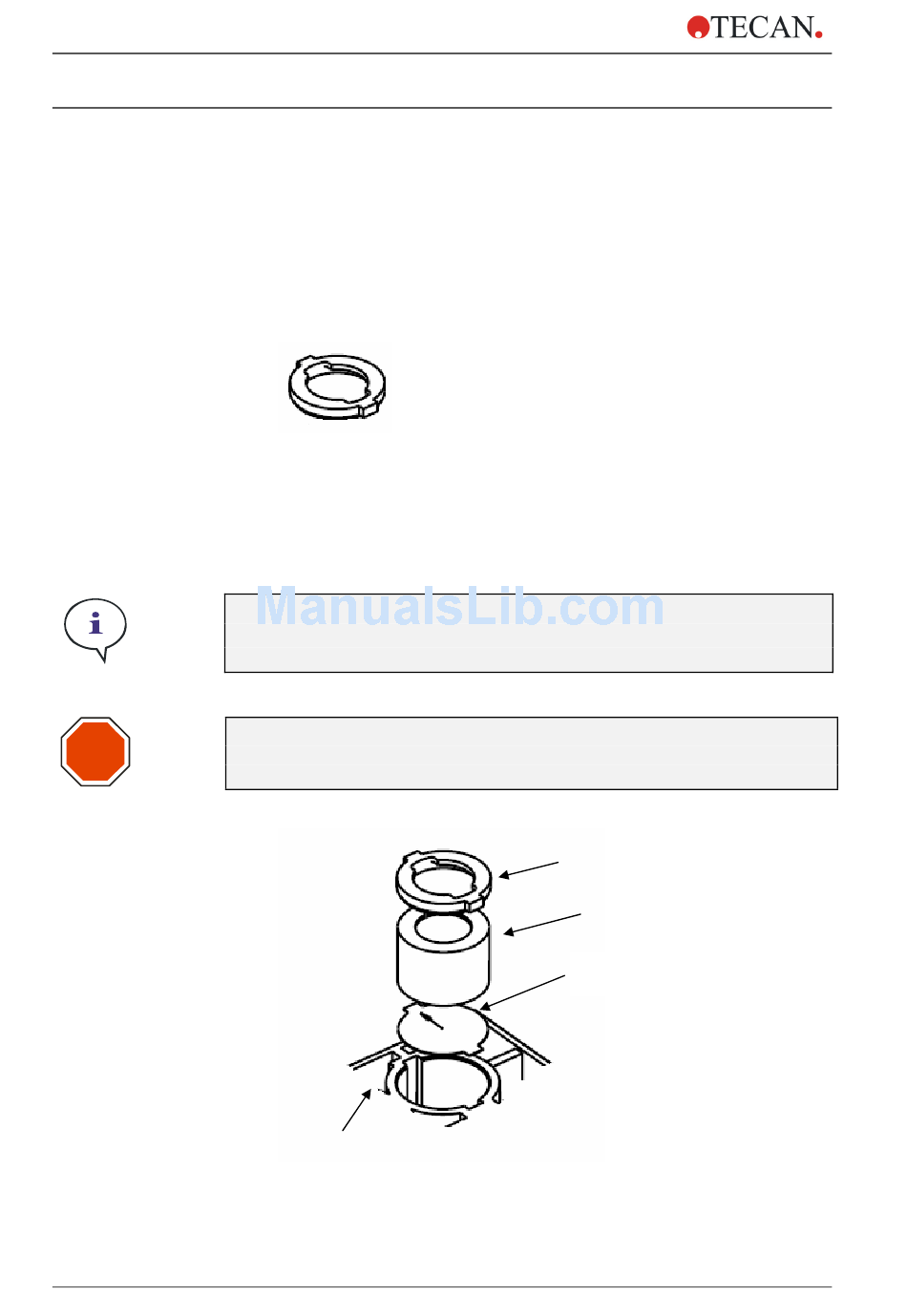

A new filter (and polarizer) must be inserted into the slide as shown below.
Make sure that the filters are inserted correctly (see Filter Types). To
ensure proper function, do not reuse the stop-rings more than 5 times.
Take care to insert the polarizers and the filters into the filter slide when
working with fluorescence polarization.
Filter slide
Instructions for Use for infinite® 200 No. 30017581 Rev. No. 1.4
Note
Caution
Stop-ring
Filter
Polarizer
2008-07
