Filter Types
STOP
2016-04
THERE ARE TWO TYPES OF FILTERS. IT IS IMPORTANT THAT LIGHT
TRAVELS THROUGH BOTH TYPES OF FILTER IN THE CORRECT
DIRECTION. BEFORE INSERTING A NEW FILTER CAREFULLY
CONSIDER THE FILTER AND THE DIRECTION OF LIGHT THROUGH
1. Filters with an arrow on the side:
Light must travel in the direction of the arrow.
2. Filters without an arrow on the side:
Correct
The end of the filter with the metal lip must face away from the light source.

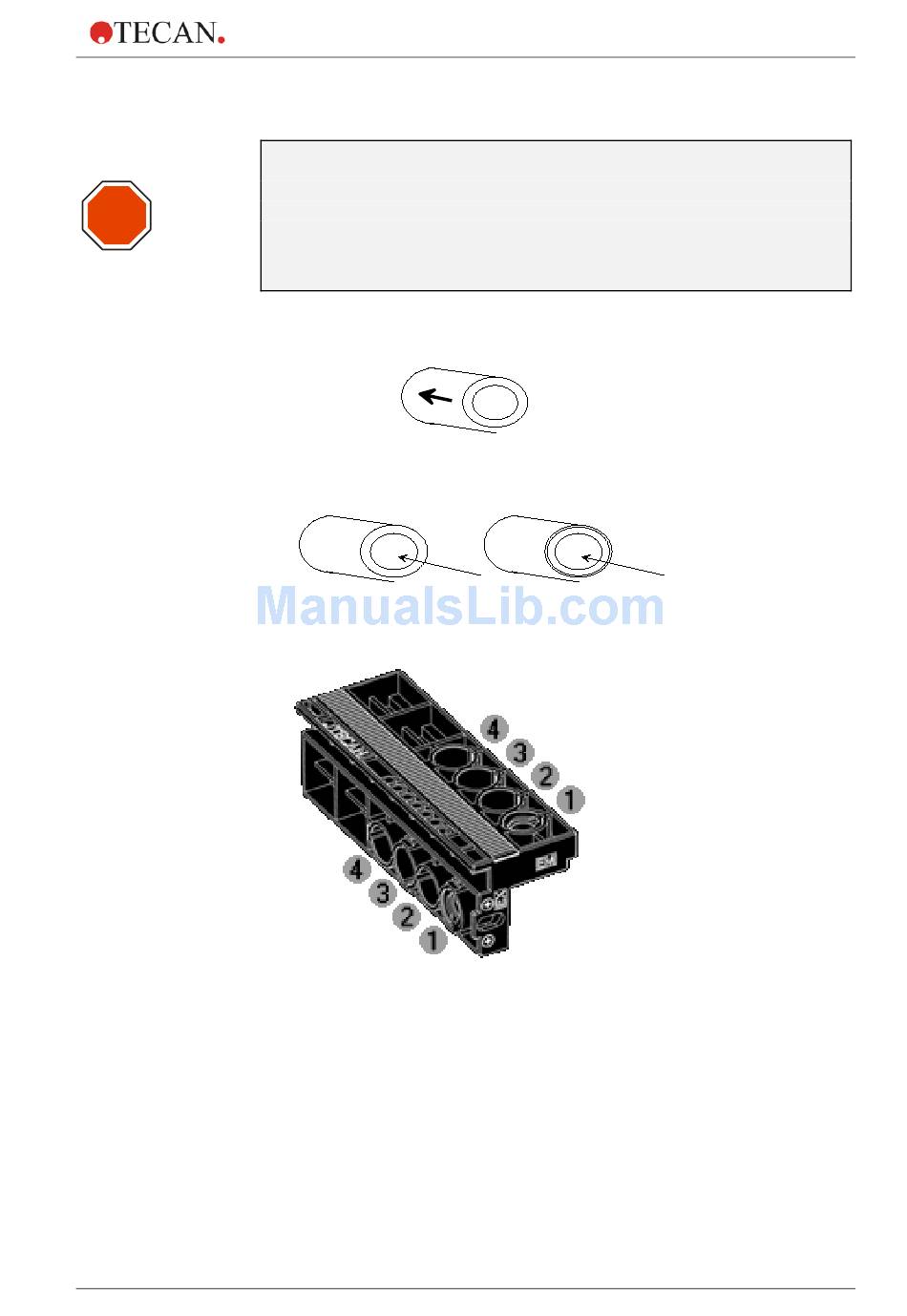

Figure 37: Infinite F200 PRO: Filter Slide - Direction of Light
IFU for Infinite 200 PRO No. 30052730
CAUTION
THE FILTER SLIDE.
Direction of light
Incorrect
Rev. No. 1.6
5. Operating the Instrument
Direction of light
79
