5. Operating the Instrument
Cuvette
Absorbance strip
(cuvette)
Move Cuvette (Out)
User Request
Move Cuvette (In)
Plate
Part of Plate
(not shown)
Absorbance strip
(microplate)
Move Plate
128

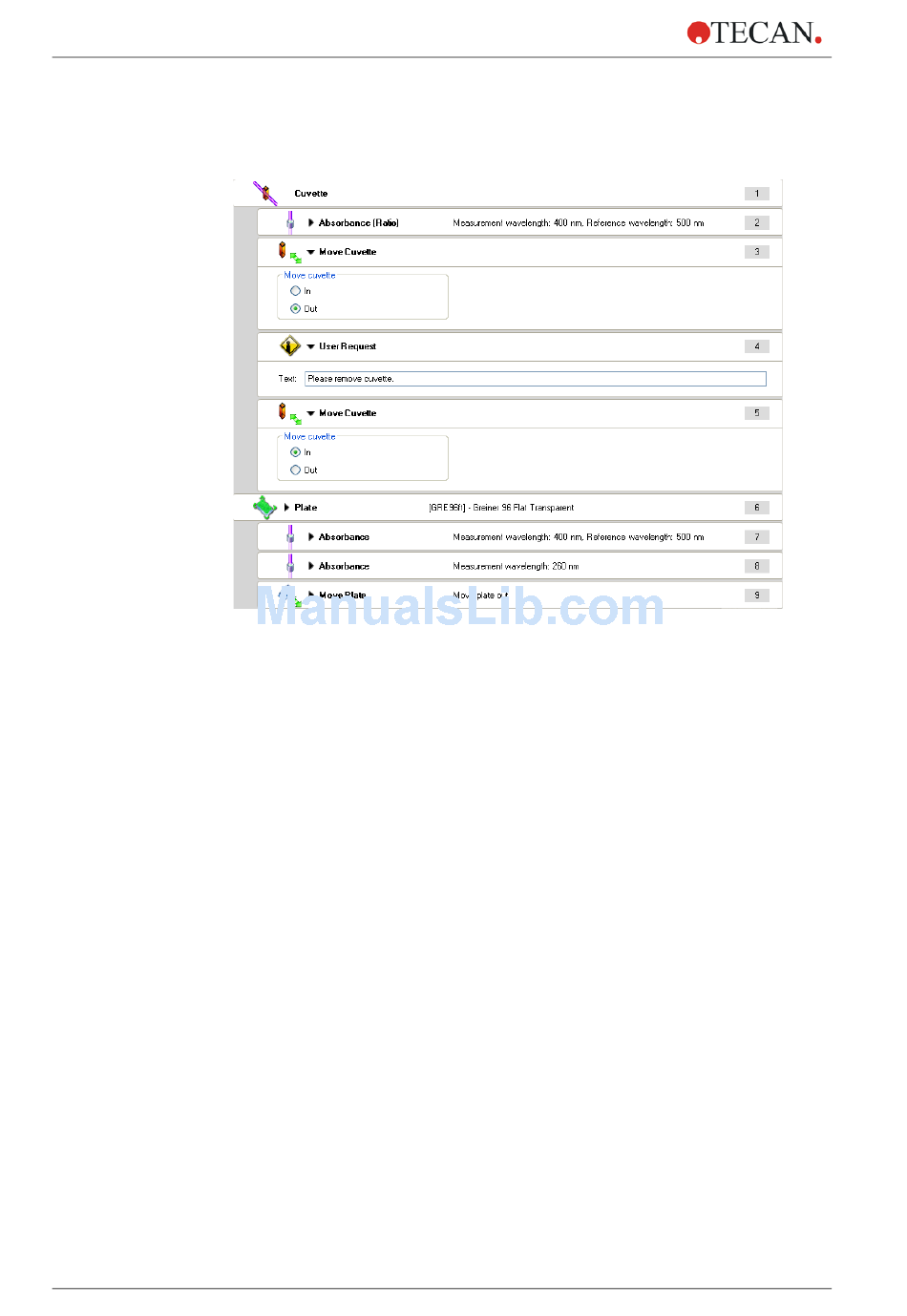

Example 3:
Usage of 'Move Cuvette OUT' strip when measuring a combination of microplate
and cuvette:
Necessary for cuvette measurement
Up to 4 absorbance fixed wavelength strips are allowed. Reference
wavelength is only selectable when using one absorbance fixed
wavelength strip. 'Apply blanking' is disabled when reference
wavelength is selected.
Select the appropriate measurement parameters (wavelength,
number of flashes and settle time)
The cuvette holder is moved 'out'.
The user request interrupts the measurement and therefore allows
removing the cuvette from the cuvette port. When confirming the
request the measurement continues.
The cuvette port is moved in.
Necessary for microplate measurements. Select an appropriate plate
type for the measurement.
Optional. Use the 'part of plate' strip if only a part of the plate will be
measured.
Up to 10 absorbance fixed wavelength strips are allowed. Reference
wavelength is only allowed on the first absorbance strip. Reference
wavelength is disabled on absorbance strips 2 to 10.
Select the appropriate measurement parameters (wavelength,
number of flashes and settle time) for your application.
Optional. To move the microplate automatically out of the instrument
when finishing the measurement, select the 'Move plate OUT'.
