2. General Description
2.5.2

Fluorescence Intensity System (Infinite F200 PRO)

Fluorescence Intensity Top Diagram
30
The following parts constitute the fluorescence intensity system of the Infinite
F200 PRO instrument:
1. Light Source
2. Fluorescence Optics
3. Fluorescence Detection System
The fluorescence top system is shown in Figure 11, the bottom system in Figure
12. The solid arrows indicate the excitation light path; the dashed arrows
determine the emission light path.

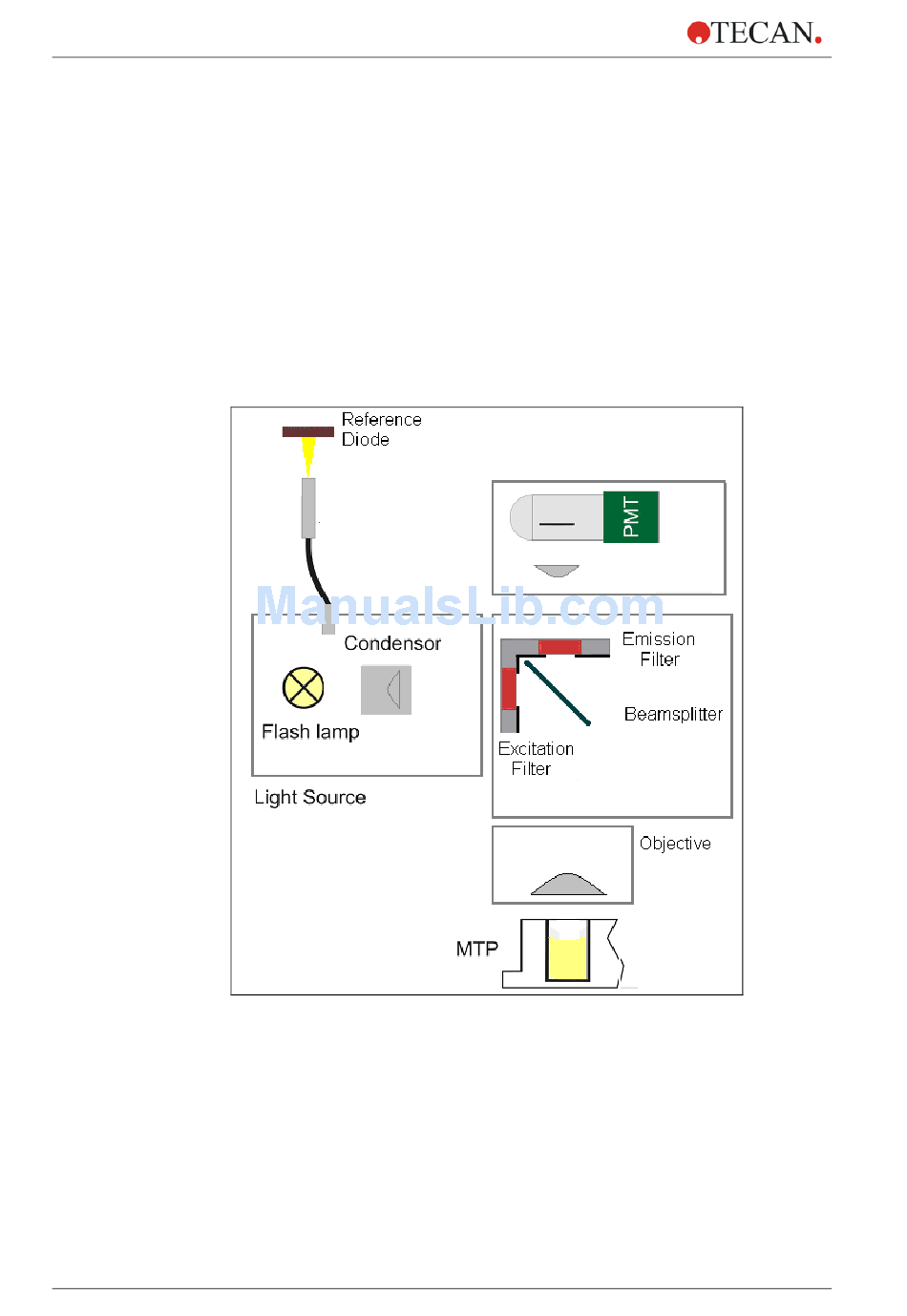

Figure 11: Fluorescence intensity top system of the Infinite F200 PRO
