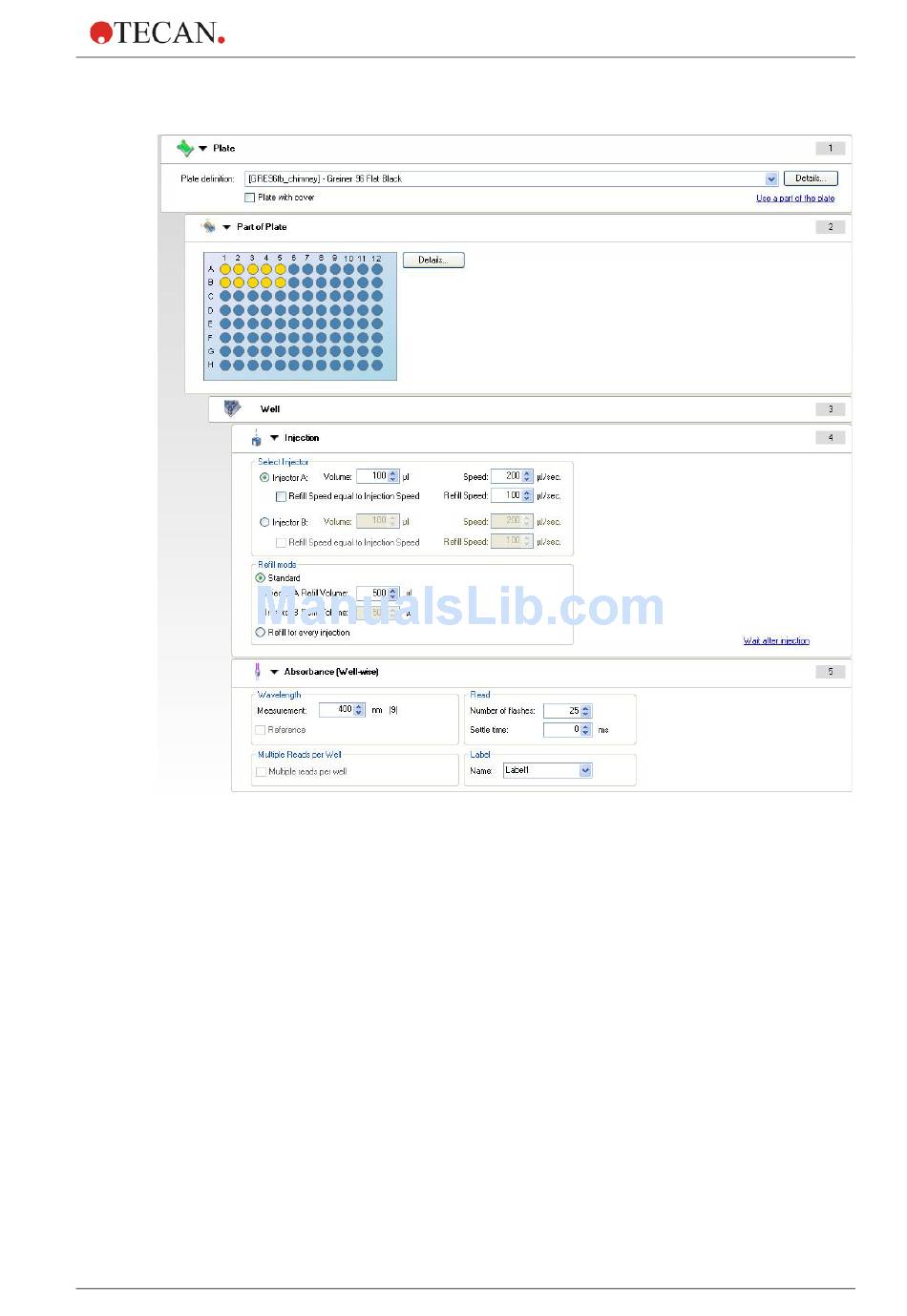

Using the Injection Strip:
Plate
Part of the plate
Well
Injection
Measurement strip
(Example
Absorbance)
2016-04
Select an appropriate plate type.
Optional; Select the wells to be dispensed
The well strip is mandatory.
Injection is only possible with a 'well' strip. This strip ensures that the
following indented strips are performed well-wise.
Set up the injection parameters.
Only one injector can be selected per strip. If both injectors are required or
one injector will perform two injections, an additional injection strip has to be
inserted.
It is mandatory to use at least one measurement strip in combination with
the injection strip. The position of the measurement strip(s) (before and/or
after the injection strip) depends on the application and is therefore user-
selectable.
