5. Operating the Instrument

5.11.2 Washing

114
Before the instrument is switched off, it is recommended to perform a wash
procedure to clean the injector system.
Washing can be performed by using the i-control software or by using the
hardware buttons on the injector box.
Before performing the washing procedure:
1. Fill the storage bottles with the appropriate wash reagents (distilled water,
70 % ethanol, etc...) and insert the feeding tubes. Make sure, that the tubes
reach the bottom of the bottle.
2. Remove the injector from the carrier slot and insert it into the service position
of the injector box.
3. Put an empty container under the injector.
Washing Procedure (i-control):

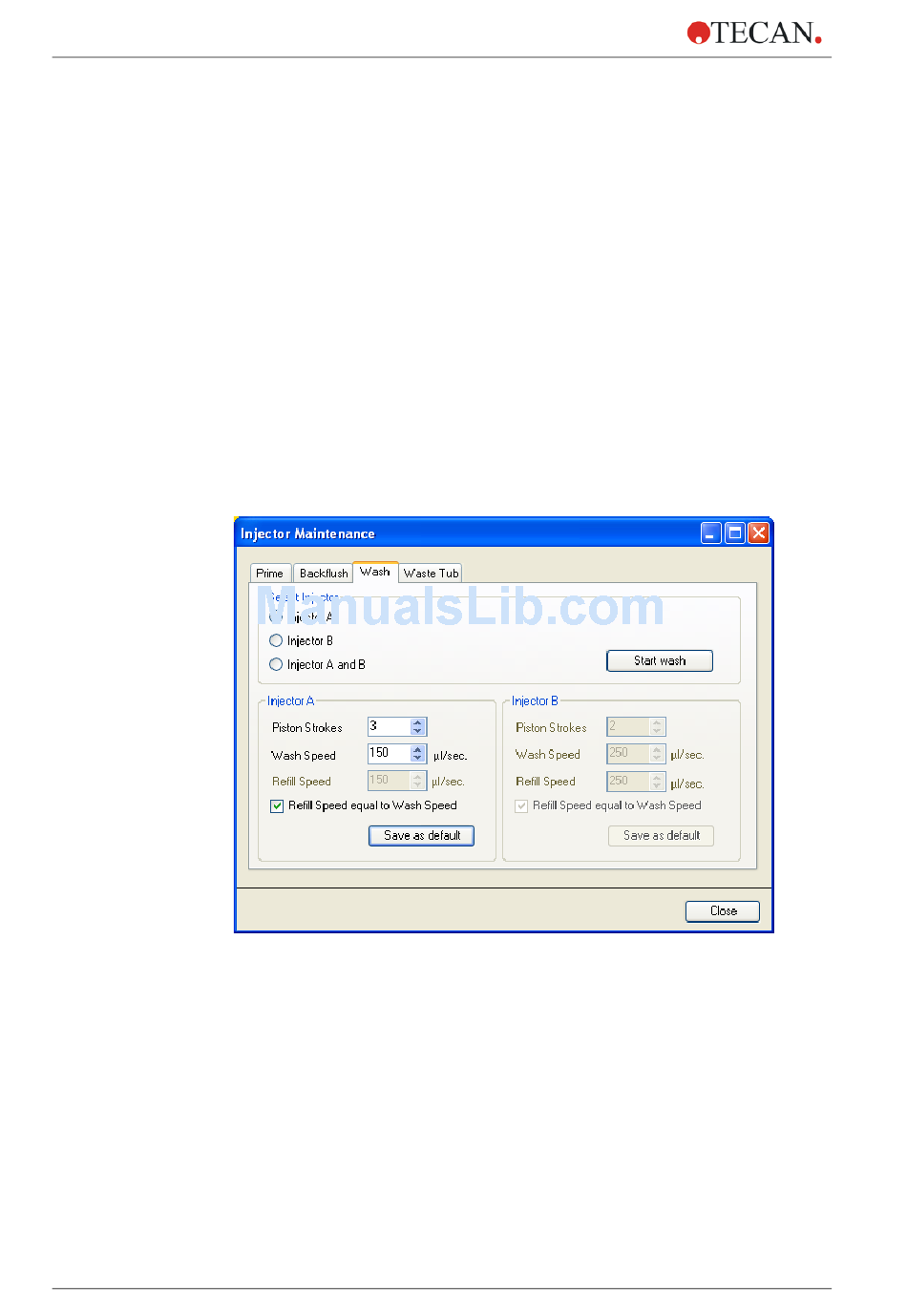

Adjust the parameters on the Wash tab of the Injector Maintenance dialog box
in the Settings menu.
1. Start the washing procedure by clicking the Start wash.
2. Select one of the injectors Injector A or Injector B or Injector A and B.
3. Select the Piston Strokes (1 – 60; 1 stroke equals 1 ml)
4. Select the Wash Speed (100 - 300 µl/sec).
5. Select the Refill Speed (100 – 300 µl/sec.) or select Refill Speed equal to
Wash Speed.
6. Click Start wash to start the wash procedure.
7. Click Close to exit the dialog box.
