2016-04
4.

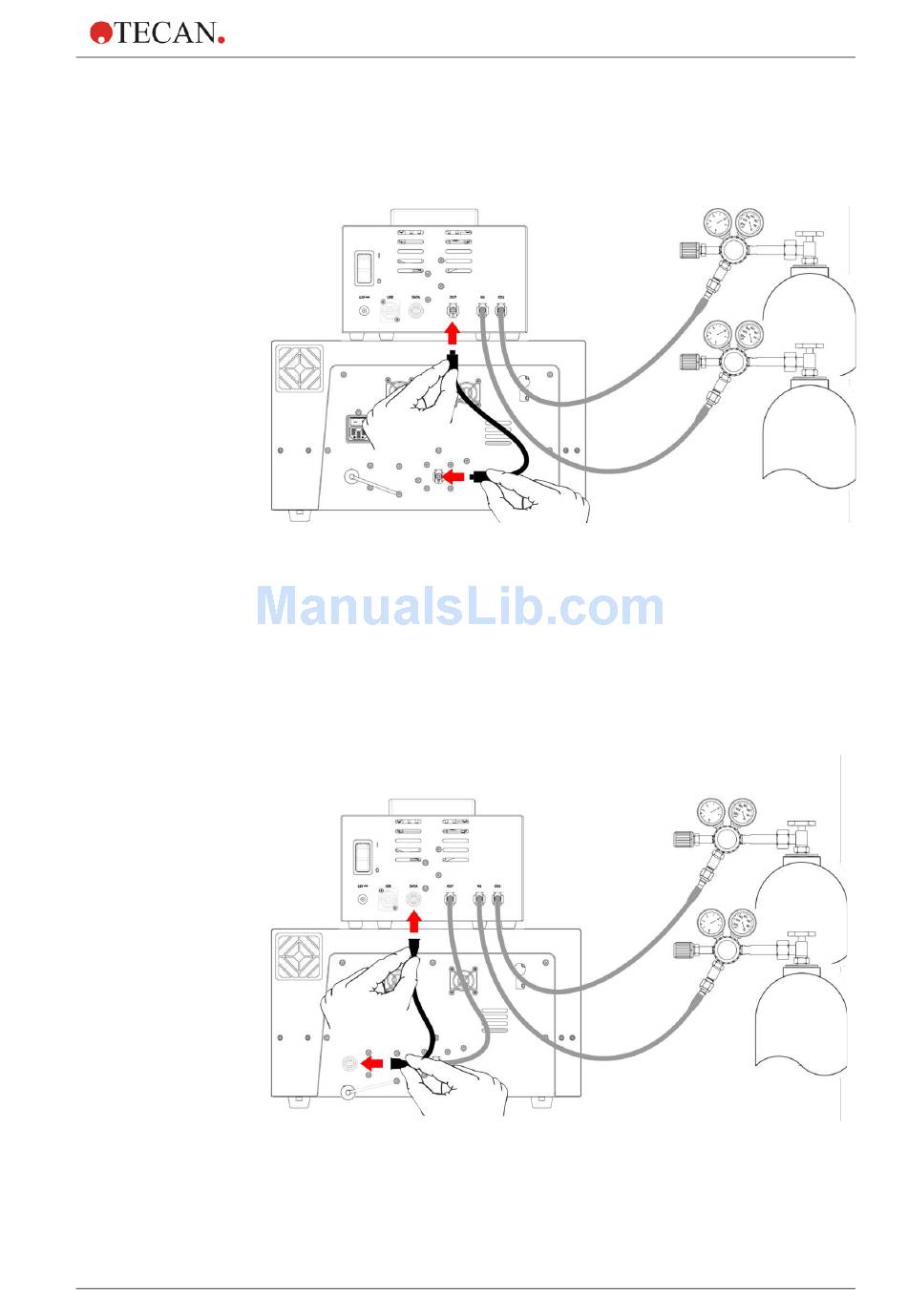

Connect the outlet port (OUT) of the gas control module to the inlet port of
the Infinite 200 PRO using the provided short tube with quick connectors on
both ends (see Figure 28, below).
Figure 28
5.
Use the provided data cable to connect the module with the Infinite 200 PRO
instrument (see Figure 29, below). USB connector for data-logging
with i-control software V1.10 or higher (See IFU i-control, chapter 6.2
"Prerequisites", for driver installation).
Figure 29
IFU for Infinite 200 PRO No. 30052730
4. Gas Control Module (Enhanced)
Rev. No. 1.6
65
