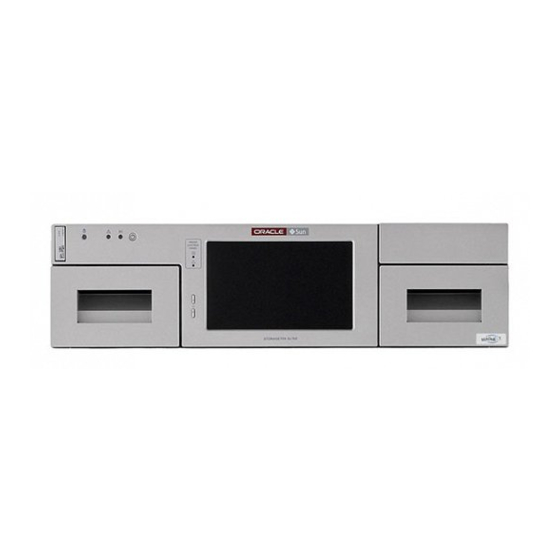

Oracle® StorageTek SL150 Modular Tape Library
User's Guide
E24606-05
February 2013

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the StorageTek SL150 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Oracle StorageTek SL150

Summary of Contents for Oracle StorageTek SL150

  • Page 1 Oracle® StorageTek SL150 Modular Tape Library User’s Guide E24606-05 February 2013...
  • Page 2 Oracle Corporation and its affiliates disclaim any liability for any damages caused by use of this software or hardware in dangerous applications.

  • Page 3: Table Of Contents

    Contents Preface ................................. ix Conventions ..............................ix Documentation Accessibility ........................ix Access to Oracle Support ........................... ix Customer Documentation Library......................ix Class 1 Laser Product Notice ........................1 The SL150 Modular Tape Library Understanding Basic SL150 Concepts ....................1-1 Automatic Operation......................... 1-1 Roles and Role-Based Access Control .....................
  • Page 4 Selecting a Cleaning Strategy ......................3-7 Setting Up Host-Managed Drive Cleaning ..................3-7 Configuring Automatic Cleaning in Oracle Secure Backup During Drive Setup ..... 3-8 Setting Up NetBackup for Reactive Cleaning Using the Administration Console....3-8 Setting Up NetBackup for Reactive Cleaning Using the Commandline ....... 3-8 Setting Up Symantec Backup Exec ...................
  • Page 5 4 User Administration Adding a User and Assigning a Role ....................4-1 Removing a User............................4-1 Changing an Assigned Role........................4-2 Changing Your Own Password (Operator) ..................4-2 Changing Your Own or Another User’s Password (Administrator) ..........4-2 5 Importing and Exporting Media Using Supported Media..........................
  • Page 6 Updating an SNMP Trap Recipient....................6-7 Deleting an SNMP Trap Recipient....................6-8 Sending a Test Trap ........................... 6-8 Downloading the Management Information Base (MIB)............. 6-9 Troubleshooting ............................6-9 Use the Health Table.......................... 6-9 Step Through the Suspect Components Listed in the Fault Record........6-10 Locate and Remove a Cartridge that is Stuck in a Magazine Slot ...........
  • Page 7 Unlock the Robot..........................7-9 Removing Magazines Prior to Moves or Maintenance..............7-10 Remove All Tape-Cartridge Magazines from the Library ............7-10 Moving the Library ..........................7-11 A Accommodating Non-Standard Label Formats Translating Between Physical and Logical Labels ................A-1 Managing Unidentifiable, Unsupported, or Missing Labels ............A-2 B Fault Codes C SNMP Traps Index...
  • Page 8 viii...

  • Page 9: Preface

    This User Guide is intended for those who administer, monitor, operate, and maintain an Oracle StorageTek SL150 Modular Tape Library. The User Guide is part of the StorageTek SL150 Modular Tape Library Customer Documentation Library. For installation, repair, upgrade, and security information, please consult the companion volumes in this collection.

  • Page 10: Class 1 Laser Product Notice

    Class 1 Laser Product Notice Oracle's StorageTek SL150 Modular Tape Library contains a Class-1 laser, as defined by IEC 60825-1 Ed. 2 (2007). WARNING: Use of controls or adjustments or performance of procedures other than those specified herein may result in...

  • Page 11: The Sl150 Modular Tape Library

    The SL150 Modular Tape Library This chapter provides an overview of the major hardware components of Oracle's StorageTek SL150 Tape Library. The library combines the well-known strong suits of automated tape storage with low initial cost and industry-leading scalability. Tape provides economical data consolidation and reliable data protection and retention.

  • Page 12: Viewer Role

    The Service role has all of the capabilities of the Administrator role, except for user administration. When you require the assistance of an Oracle service representative, you create a log-in account for the service person and assign the account to the Service...

  • Page 13: Unified Control And Data Path

    SCSI sequential-access (tape) devices. A default bridged drive is automatically assigned during library and partition configuration. Currently, the SL150 library supports Oracle-supplied, half-height, Hewlett-Packard LTO-5 tape drives with SAS or Fibre Channel interfaces and Hewlett-Packard LTO-6 drives with SAS interfaces only.

  • Page 14: Browser-Based Administration And Monitoring

    Browser-based User Interface is described in detail on page 1-6, below. Customer Serviceability The StorageTek SL150 Modular Tape Library is designed for straightforward maintenance and servicing. Users can, in most cases, troubleshoot and repair their equipment without assistance. Library components are organized into a limited number of Customer Replaceable Units (CRUs), each of which has a discrete function in the library.
  • Page 15 Understanding the Major Components Above the magazines, the taller, base module houses the library controller, robotics unit, and mailslot (cartridge access port). The front panel holds the local operator controls. A large, touchscreen operator panel resides in the center, with status LEDs for the touch panel to its left.

  • Page 16: Browser-Based User Interface

    Log Out control to its immediate left. This secures the interface and logs you off of the system. The Preferences control lets you Pause Automatic Refresh of the display and Resume Automatic Refresh when ready. 1-6 StorageTek SL150 Modular Tape Library User’s Guide...
  • Page 17 Understanding the Major Components The About link at the bottom right corner of the interface displays the library firmware version followed by build information. A list-type menu on the left side of the interface controls the screen display: The Library screen lets you monitor component status and library operations via a ■...

  • Page 18: Touch-Screen Local Operator Panel

    Magazines, or the Mailslot. Press buttons in the bottom row to see information on Drives, Tapes, or library configuration Settings. When the Simple Partitioning feature is enabled, the menu contains an additional button for displaying the configuration of the library Partitions: 1-8 StorageTek SL150 Modular Tape Library User’s Guide...

  • Page 19: Text-Based Displays

    Understanding the Major Components Text-Based Displays The operator panel presents much the same information as is available in the browser-based user interface but in a simplified, text-oriented form better suited to the smaller display. Tabbed property sheets and tables take the place of some of the graphics used in the browser-based interface.
  • Page 20 Understanding the Major Components 1-10 StorageTek SL150 Modular Tape Library User’s Guide...

  • Page 21: Basic User Interface Operations

    Basic User Interface Operations This chapter briefly outlines Accessing the User Interface, Navigating the User Interface, Using Common Controls, and Controlling Screen Refresh. Accessing the User Interface To access the SL150 browser-based user interface, you must have a log-in account. If you do not yet have an account, contact an SL150 library administrator.

  • Page 22: Interpreting The Graphical Library Display

    If you select one of large buttons in the menu on the left side of a screen, the user ■ interface switches to the screen named in the button. 2-2 StorageTek SL150 Modular Tape Library User’s Guide...

  • Page 23: Using Common Controls

    Using Common Controls Using Common Controls The SL150 displays a wide range of information in tabular form. These data tables include a common set of controls that let you control how data is displayed and made available to users. This section describes the following controls: View ■...

  • Page 24: Export

    When you are ready to update the screen, use your web browser’s reload/refresh control. If you want to resume automatic screen refreshes, click the Preferences control again, and select Resume Automatic Refresh from the context menu. 2-4 StorageTek SL150 Modular Tape Library User’s Guide...

  • Page 25: System Configuration

    Configuring a Newly Installed Library During the installation of a new library, you run an initial-configuration wizard from the local operator console on the library base module (see the Installation Manual in the StorageTek SL150 Modular Tape Library Customer Documentation Library for details). The...

  • Page 26: Reserving Storage Slots For System Use

    Selecting a Volume Label Format for an Unpartitioned Library. If you are configuring the library for the first time and plan to partition the library, go to "Checking and Updating Firmware" on page 3-3. 3-2 StorageTek SL150 Modular Tape Library User’s Guide...

  • Page 27: Selecting A Volume Label Format For An Unpartitioned Library

    Click on the Product or Family (Advanced) link. Check the Include all products in a family checkbox. In the Product is field, enter SL, and then select StorageTek SL150 Modular Tape Library from the list of search results. Check the Exclude all superseded patches text box.

  • Page 28: Update The Firmware

    ■ Enable Dynamic Host Configuration Protocol (DHCP) Log in as an Administrator, and select Settings from the menu on the left side of the interface. A set of tabbed property sheets appears. 3-4 StorageTek SL150 Modular Tape Library User’s Guide...

  • Page 29: Assign A Static Network Address

    Network Administration Select the Network tab. In the upper left corner of the tab, click on Edit. Move the cursor to the Network Port 1 portion of the tab. In the DHCP field, check the Enabled check box. Enter the desired library name in the Host Name field. To commit your changes, click the Save icon at the top of the tab.

  • Page 30: Partitioning

    Strategy. Then either follow the appropriate procedure in "Setting Up Host-Managed Drive Cleaning" on page 3-7 or review the process for "Cleaning Drives Using the Library User Interface" on page 7-6. Finally, provide 3-6 StorageTek SL150 Modular Tape Library User’s Guide...

  • Page 31: Selecting A Cleaning Strategy

    You can thus handle the required cleanings in either of two ways. You can automatically manage cleaning operations using host applications like Oracle Secure Backup, Symantec NetBackup, or IBM Tivoli Storage Manager. You configure the application for Automatic, Tape Alert, or reactive cleaning, depending on the application.

  • Page 32: Configuring Automatic Cleaning In Oracle Secure Backup During Drive Setup

    Oracle Secure Backup can automatically initiate cleaning when a tape drive requests it. The software checks for cleaning requests whenever a cartridge is loaded or unloaded. If cleaning is required, Oracle Secure Backup loads a cleaning cartridge, waits for the cleaning cycle to complete, replaces the cleaning cartridge in its original storage element, and continues with the requested load or unload.

  • Page 33: Setting Up Symantec Backup Exec

    Configuring Drive Cleaning Operations /usr/openv/volmgr/bin/tpclean/tpclean -F drive_name 0 In the example, drive_name is the name that was assigned to the drive when it was added to the NetBackup device configuration and 0 is the value that turns off frequency-based cleaning in favor of reactive cleaning. Setting Up Symantec Backup Exec If you configure a cleaning slot, Backup Exec will automatically clean drives.

  • Page 34: Setting Up Commvault

    Load the required number of new cleaning cartridges into the library mailslot. Use the application to move the cleaning cartridges from the mailslot to the storage slot(s) that you have selected for holding cleaning media. 3-10 StorageTek SL150 Modular Tape Library User’s Guide...

  • Page 35: Load Cleaning Media Using The Library User Interface

    Configuring Tape Drives If you are planning to load cleaning cartridges into system reserved slots, you must now Load Cleaning Media Using the Library User Interface (host applications cannot access the system reserved slots). Load Cleaning Media Using the Library User Interface If you have not already done so, Take the Library Off Line.

  • Page 36: Creating Additional User Accounts

    On the front of the server, find the locator button at upper left. At the rear of the library, find the locator button at left center on the controller/robotics assembly at the top of the library. 3-12 StorageTek SL150 Modular Tape Library User’s Guide...
  • Page 37 The power button is to the right of the locator button and the two status LEDs: Run the installation wizard and reconfigure the library just as you would when setting up a new unit. For initial setup instructions, see the Installation Manual in the StorageTek SL150 Tape Library Customer Documentation Library. For configuration instructions, see "Configuring a Newly Installed Library"...
  • Page 38 Reverting to Factory Default Configuration 3-14 StorageTek SL150 Modular Tape Library User’s Guide...

  • Page 39: User Administration

    User Administration The SL150 Modular Tape Library manages user access to the system by user and role, an approach known as Role-Based Access Control (RBAC). An administrator creates individual user accounts for each person that needs access to the system. Each account has its own, uniquely identifiable log-in name and personal password, so individual users can be readily audited.

  • Page 40: Changing An Assigned Role

    If you are an administrator, change your own or another user’s password using the following procedure: Select Settings from the menu on the left side of the interface. A set of tabbed property sheets appears. Select the Users tab. 4-2 StorageTek SL150 Modular Tape Library User’s Guide...
  • Page 41 Changing Your Own or Another User’s Password (Administrator) Select the user account by clicking on the corresponding table row. Click the Change Password icon in the menu bar at the top of the tab. When the Change Password dialog appears, enter the new password in the Password field.
  • Page 42 Changing Your Own or Another User’s Password (Administrator) 4-4 StorageTek SL150 Modular Tape Library User’s Guide...

  • Page 43: Importing And Exporting Media

    I mporting and Exporting Media This chapter outlines the basic processes for handling and moving media stored in a StorageTek SL150 Modular Tape Library. It begins with an overview of basic precautions and requirements for working with tape media: Using Supported Media ■...

  • Page 44: Handling Cartridges

    Do not use any other solvents to remove labels or to clean cartridges! Acetone, ■ trichloroethane, toluene, xylene, benzene, ketone, methylethyl ketone, methylene chloride, ethyldichloride, esters, and ethyl acetate, among others, are known to damage the plastic used in cartridge cases. 5-2 StorageTek SL150 Modular Tape Library User’s Guide...

  • Page 45: Labeling Cartridges

    Universal cleaning cartridges that are suitable for all LTO generations are identified by a CLNU prefix, a sequence number, and the media descriptor CU: CLNUxxCU. Note that Oracle recommends using the generic CU media descriptor rather than other, vendor-specific variations.

  • Page 46: Inspect Lto Cartridges

    Make sure that the write-protect switch can slide from side to side and snaps into position with a positive click. If the write-protect switch is broken or does not latch positively, do not use the cartridge! 5-4 StorageTek SL150 Modular Tape Library User’s Guide...

  • Page 47: Loading And Unloading Magazines

    Cartridges. Loading and Unloading Magazines The StorageTek SL150 stores tape cartridges in detachable, 15-slot magazines that slide in and out of the front of the library, much like drawers. Each library module holds two of these magazines, one on the left side of the enclosure and one on the right.

  • Page 48: Unlatch The Magazine

    Load and/or Unload the Magazine. Load and/or Unload the Magazine Place each magazine upright on a clean, level surface, where you have room to work and where cartridges will not be subjected to magnetic fields. 5-6 StorageTek SL150 Modular Tape Library User’s Guide...

  • Page 49: Reinstall The Magazine And Engage The Latch

    Loading and Unloading Individual Cartridges Pull each cartridge that you need to remove out of its slot in the magazine, and set the cartridge aside in a suitable storage container. Place the cartridges that you will load into the magazine on your work surface, and carefully examine them for defects, temperature, and missing or misplaced labels, as described in "Inspecting Cartridges"...

  • Page 50: Assign The Mailslot Using The Local Operator Panel

    When the Move Tape panel shows that the move is complete, press the OK button to close the panel. Go to Opening the Mailslot. Opening the Mailslot You can open the mailslot using either the remote user interface or the local operator panel. 5-8 StorageTek SL150 Modular Tape Library User’s Guide...

  • Page 51: Open The Mailslot From The Remote User Interface

    Loading and Unloading Individual Cartridges Open the Mailslot from the Remote User Interface Log in to the browser-based user interface, if you have not already done so. Select the Library screen from the menu on the left side of the interface. Click on the Mailslot label, and select Open from the context menu.

  • Page 52: Unassigning The Mailslot From The Partition

    In the Move Tape panel, press the OK button to perform the move or Cancel to abort. When the Move Tape panel shows that the move is complete, press the OK button to close the panel. 5-10 StorageTek SL150 Modular Tape Library User’s Guide...

  • Page 53: Monitoring And Diagnostics

    Monitoring and Diagnostics Monitoring library operations for component failures and operational problems is one of the few regular tasks that you need to perform when operating an StorageTek SL150 Modular Tape Library. The library is designed to operate automatically, under the control of host software.

  • Page 54: Checking Health Details

    Suspect Components field will list the module interconnect cable that links module 3 to the library controller first, followed by the other, less-likely components. For more information on interpreting library health information, see "Troubleshooting" on page 6-9. 6-2 StorageTek SL150 Modular Tape Library User’s Guide...

  • Page 55: Checking The Local Operator Panel

    Using SL150 User Interfaces Checking the Local Operator Panel The SL150 local operator panel lets you check on library status and configuration when you are working directly with the hardware and cannot easily use the browser-based user interface. The local operator panel can be especially valuable when you are Checking Library and Component LED Indicators.

  • Page 56: Using Simple Network Management Protocol (Snmp)

    The SNMP tab of the Settings screen lets you carry out the following SNMP configuration tasks: Adding an SNMP User ■ Updating an SNMP User ■ Deleting an SNMP User ■ 6-4 StorageTek SL150 Modular Tape Library User’s Guide...

  • Page 57: Adding An Snmp User

    Sending a Test Trap ■ Downloading the Management Information Base (MIB). ■ For detailed information on SNMP and Oracle's StorageTek Modular Libraries, see the SNMP Reference Guide in the SL150 Modular Tape Library Customer Documentation Library. Adding an SNMP User SNMP users are allowed to access the library's SNMP agent.

  • Page 58: Deleting An Snmp User

    An SNMP trap recipient is a network management station that you designate to receive notifications sent by the SNMP agent on the library. To add a trap recipient, proceed as follows. Log in under the Administrator or Service role. 6-6 StorageTek SL150 Modular Tape Library User’s Guide...

  • Page 59: Updating An Snmp Trap Recipient

    Using Simple Network Management Protocol (SNMP) Select Settings from the menu on the left side of the interface. A set of tabbed property sheets appears. Select the SNMP tab. Go to the SNMP Trap Recipients table. Click on Add Trap Recipient in the control bar above the table. The Add Trap Recipient dialog appears.

  • Page 60: Deleting An Snmp Trap Recipient

    Click on Delete Trap Recipient in the control bar above the table. The Delete Trap Recipient dialog appears. Press OK to delete the trap recipient or Cancel to abort. Sending a Test Trap To test your SNMP configuration, proceed as follows: 6-8 StorageTek SL150 Modular Tape Library User’s Guide...

  • Page 61: Downloading The Management Information Base (Mib)

    Troubleshooting Log in under the Administrator or Service role. Select Settings from the menu on the left side of the interface. A set of tabbed property sheets appears. Select the SNMP tab. Go to the SNMP Trap Recipients table. Click on Send a Test Trap in the control bar above the table. The Send a Test Trap dialog appears.

  • Page 62: Step Through The Suspect Components Listed In The Fault Record

    Note the next item listed in the Suspect Components field of the record, and repeat steps 3-8. If the Type field shows that the record is Closed and the library Health status is now Operational, stop here. 6-10 StorageTek SL150 Modular Tape Library User’s Guide...

  • Page 63: Locate And Remove A Cartridge That Is Stuck In A Magazine Slot

    Suspect Components field for the event, a cartridge is probably stuck in a storage cell. WARNING: Oracle's StorageTek SL150 Modular Tape Library contains a Class-1 laser, as defined by IEC 60825-1 Ed. 2 (2007). Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

  • Page 64: Locate And Clear Obstructions, Such As Loose Or Protruding Cartridges

    Repeat the procedure "Step Through the Suspect Components Listed in the Fault Record" on page 6-10, this time investigating the next suspect component listed in the fault record. 6-12 StorageTek SL150 Modular Tape Library User’s Guide...

  • Page 65: Manually Unlatch And Remove The Magazine

    Use this procedure only during specified installation, Caution: maintenance, and troubleshooting procedures or under the direction of an Oracle service representative. Do not routinely override the automated magazine latches. To release a magazine during normal operation, use the user interface software: see "Unlatch the Magazine"...

  • Page 66: Restart The Library

    The exact number of moves is, in this case, proportional to the size of the library. To carry out a self test, proceed as follows: 6-14 StorageTek SL150 Modular Tape Library User’s Guide...

  • Page 67: Run A Library Self Test

    When you need firmware updates, upgrades, technical assistance, service, or replacement parts, proceed as follows: Open a web browser window, and log in to My Oracle Support at https://support.oracle.com. Generally, you should start by checking for knowledge articles that address your issue.

  • Page 68: Check For Relevant Knowledge Articles

    Click on the Product or Family (Advanced) link. Check the Include all products in a family checkbox. In the Product is field, enter SL, and then select StorageTek SL150 Modular Tape Library from the list of search results. Check the Exclude all superseded patches text box.

  • Page 69: Maintenance And Upgrades

    M aintenance and Upgrades This chapter describes the few routine maintenance and upgrade activities that a StorageTek SL150 Modular Tape Library may require. These include the following tasks: Taking the Library On and Off Line ■ Powering the Library On and Off ■...

  • Page 70: Powering The Library On And Off

    If you plan to move the library to a new location, need to add or replace expansion modules, or need to remove or replace the robot/library controller assembly, go to "Securing the Robot and Controller Assembly" on page 7-8, Park the Robot, and Lock the Robot. 7-2 StorageTek SL150 Modular Tape Library User’s Guide...

  • Page 71: Restart The Library

    Powering the Library On and Off Otherwise, in the confirmation dialog, press the OK button to power down or Cancel to abort. Restart the Library If you have physical access to the library, press the power switch on the upper left quadrant of the front panel of the base module.

  • Page 72: Maintaining Tape Drives

    Maintaining Tape Drives Maintaining Tape Drives The Linear Tape Open (LTO) Gen-5 and Gen-6 drives used in the StorageTek SL150 Tape Storage Library require little in the way of routine maintenance, other than occasional cleaning, restarts, and, when problems arise, removal: "Cleaning Drives"...

  • Page 73: Eject Expired Cleaning Media With The Sl150 User Interface

    Maintaining Tape Drives If the Cleaning Tape Status is OK, stop here. If the Cleaning Tape Status indicates that the cartridge has expired and the cartridge resides in a host application-managed storage slot, use the host application to eject the cartridges, and "Move Cartridges into the Mailslot"...

  • Page 74: Cleaning Drives Using The Library User Interface

    Cleaning Drives Using the Library User Interface Oracle does not generally recommend cleaning tape drives yourself if your host application can be configured to manage cleaning automatically. LTO drives rarely require cleaning with external cartridges, so monitoring for cleaning requests is best left to software (see "Selecting a Cleaning Strategy"...

  • Page 75: Use The Library User Interface To Clean The Degraded Drive

    Maintaining Tape Drives If the Library Health indicator on the dashboard bar at the top of the interface is Degraded, click on it, and examine the Health Table for code 9030, DRIVE_NEEDS_ CLEANING. Alternatively, use the Library screen to check each drive individually. Click on each drive, select Properties from the context menu, and check the Health property.

  • Page 76: Securing The Robot And Controller Assembly

    Press the OK button to continue or Cancel to abort and stop here. Lock the Robot. Lock the Robot Locate the robot lock at top center on the back of the base module. 7-8 StorageTek SL150 Modular Tape Library User’s Guide...

  • Page 77: Unlock The Robot

    Securing the Robot and Controller Assembly Loosen the captive screw on the lock assembly. Pull the lock assembly straight out of the chassis until the long tab comes out of the slot at right. Rotate the lock assembly counterclockwise 180 degrees, and slide the long tab into the slot at left.

  • Page 78: Removing Magazines Prior To Moves Or Maintenance

    Use this procedure only during specified installation, Caution: maintenance, and troubleshooting procedures or under the direction of an Oracle service representative. Do not routinely override the automated magazine latches. To release a magazine during normal operation, use the user interface software: see "Unlatch the Magazine"...

  • Page 79: Moving The Library

    Moving the Library Align the Allen wrench parallel to the magazine face and slowly push it into the hole. Grasp the handle on the front of the magazine and slowly and gently pull the magazine a short distance out of the library. Remove the wrench.
  • Page 80 Moving the Library 7-12 StorageTek SL150 Modular Tape Library User’s Guide...

  • Page 81: A Accommodating Non-Standard Label Formats

    Accommodating Non-Standard Label Formats By default, the StorageTek SL150 Modular Tape Library is configured to use the eight-character label format that is standard for Linear Tape Open (LTO) cartridges. While most backup and storage management applications support the standard LTO labeling format, a few use proprietary labeling schemes to track volumes.

  • Page 82: Managing Unidentifiable, Unsupported, Or Missing Labels

    Since the library software cannot identify the cartridge, it marks the Tape Label field of the corresponding tape properties sheet [UNREADABLE]. A-2 StorageTek SL150 Modular Tape Library User’s Guide...
  • Page 83 Fault Codes The table below lists fault codes currently reported by the StorageTek SL150 Modular Tape Library. Use this information to locate relevant replacement parts and service resources in My Oracle Support. Table B–1 SL150 Tape Library Fault Codes Code Name Description A power supply AC failure has been detected.
  • Page 84 An error has been encountered while attempting to communicate 9119 ROBOT_DRV_CPU_COMM_FAILURE with the robot drive CPU. An error has been encountered while attempting to switch the robot 9121 ROBOT_DRV_CPU_APP_MODE_FAILURE drive CPU to application mode. B-2 StorageTek SL150 Modular Tape Library User’s Guide...
  • Page 85 Table B–1 (Cont.) SL150 Tape Library Fault Codes Code Name Description An error has been encountered while attempting to communicate 9122 ROBOT_HAND_CPU_COMM_FAILURE with the robot hand CPU. ROBOT_HAND_CPU_APP_MODE_FAILURE An error has been encountered while attempting to switch the robot 9124 hand CPU to application mode.
  • Page 86 B-4 StorageTek SL150 Modular Tape Library User’s Guide...
  • Page 87 SNMP Traps The table below lists traps returned by the SL150. For a fully comprehensive discussion, see the StorageTek Modular Libraries SNMP Reference Guide that is found in the SL150 Modular Tape Library Customer Documentation Library. Table C–1 SNMP Trap Levels Trap Level Description error log entry warning log entry...
  • Page 88 C-2 StorageTek SL150 Modular Tape Library User’s Guide...
  • Page 89 1-3 EMC NetWorker, 3-9 to 3-10 Customer Replaceable Unit (CRU), 1-4, 1-6, 6-3, 6-4 IBM Tivoli Storage Manager (TSM), 3-9 customer support. See My Oracle Support. Oracle Secure Backup, 3-8 Symantec Backup Exec, 3-9 Symantec NetBackup, 3-8, 3-8 to 3-9...
  • Page 90 1-5, 6-4 slots powering off (library), 7-2 reserving, 3-2 powering on (library), 7-2 support and service. See My Oracle Support. Preferences (control), 1-6 suspect components, 6-10 to 6-11 take offline, 7-1 troubleshooting, 6-9 to 6-14 user interface, 1-6 to 1-8, 2-1 to 2-2, 7-4, 7-5...
  • Page 91 5-10 stuck, 6-11, 6-11 to 6-12 supported, 5-1 to 5-2, 5-4 WORM, 5-3 technical support. See My Oracle Support. troubleshooting, 6-9 to 6-14 cartridges stuck in drives, 6-11 to 6-12 cartridges stuck in magazines, 6-11 Health table, 6-9 to 6-10 obstructions (loose cartridges, etc.), 6-12...
  • Page 92 Index-4...
