Rostock MAX v2 Assembly Guide
The next step is to install the resistors that the hot end and Onyx power LEDs need to operate.
Install the resistor for the heated bed LED first. Bend the leads on the resistor and position it
over the solder pads and solder into place as shown below. Trim the leads when you're done.

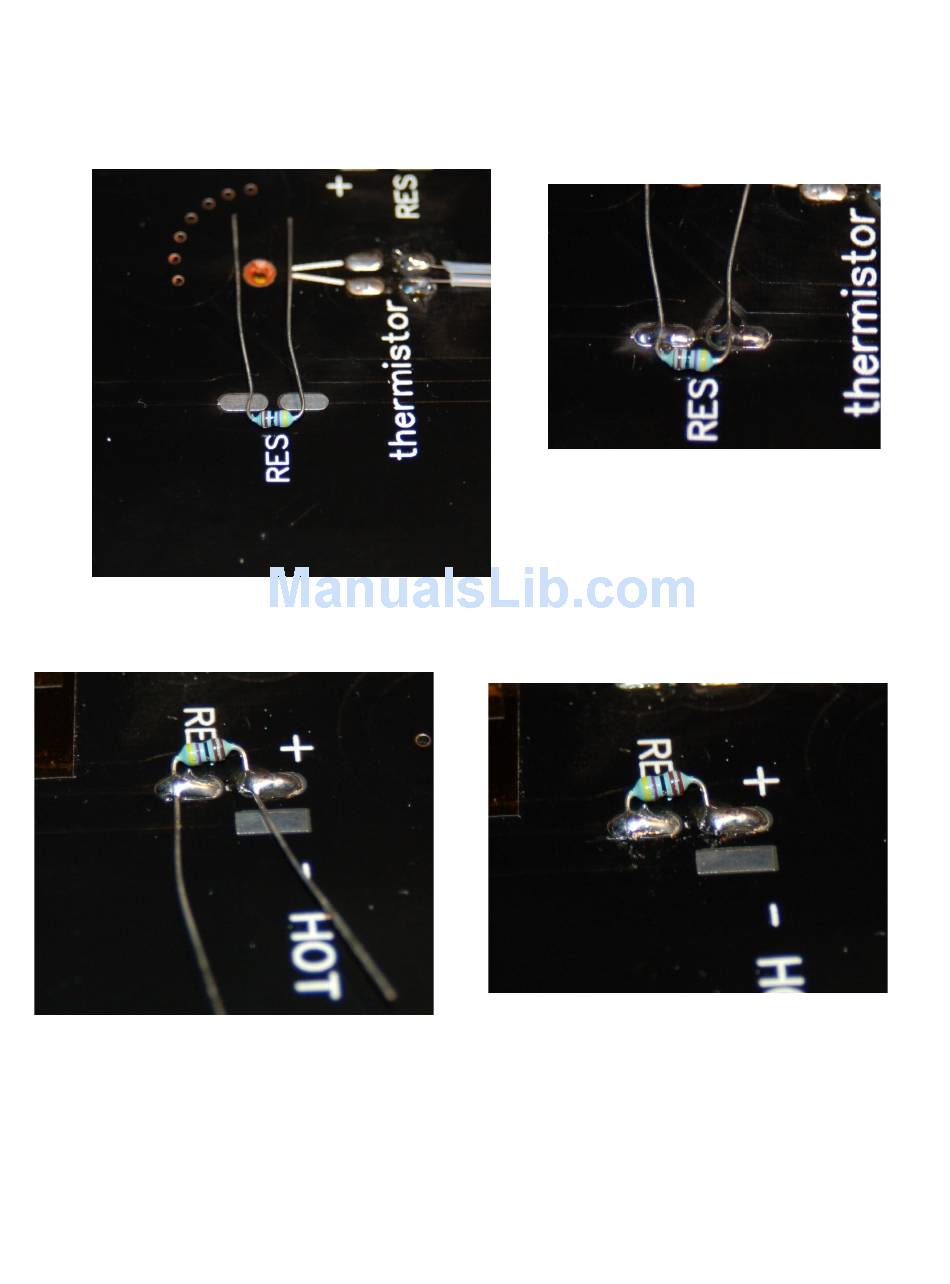

Fig. 5C-18: Soldered into place.
Fig. 5C-17: Placing the resistor.
Now install the resistor for the hot end LED and trim.
Fig. 5C-20: ..and trimmed!
Fig. 5C-19: Hot end LED installed...
