Rostock MAX v2 Assembly Guide

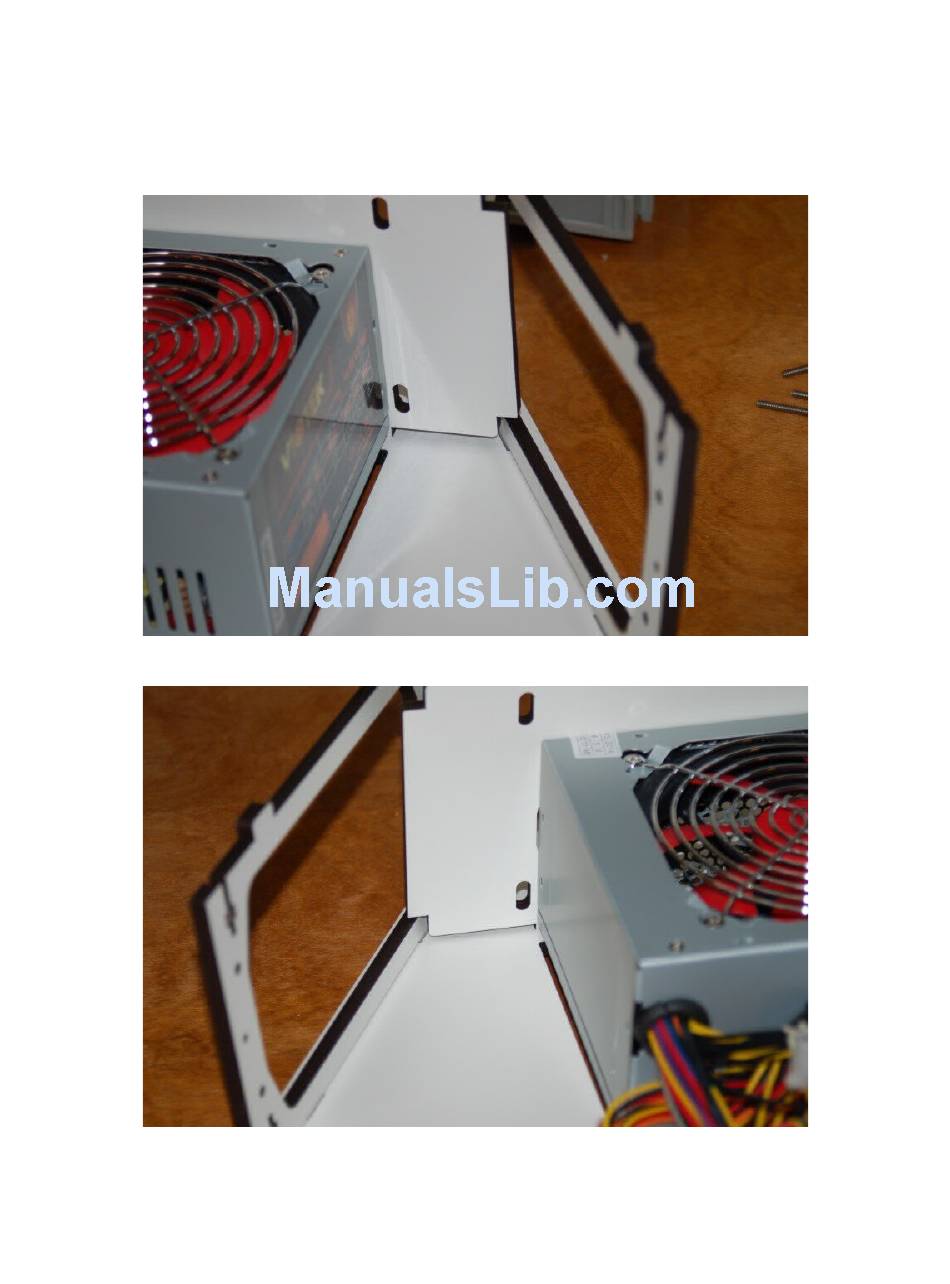

Figs. 4-12 and 4-13 are provided to give you a bit of additional detail as to how the mount rests
on the vertical supports. The 1/2" screws are not shown in Figs. 4-12 & 4-13 but should be present!
Fig. 4-12: Detail of power supply bracket, right side.
Fig. 4-13: Detail of power supply bracket, left side.
39
