Assemble an idler bearing out of two black plastic bearings spacers and a 608ZZ roller bearing.
Install it into the upper tower mounting as shown below. Use a #6-32 1-3/4" pan head screw and a #6-
32 Nylon lock nut to hold it in place. Don't tighten it – we'll do that after the belts are installed.
Repeat this step for the other two idler bearings.
Rostock MAX v2 Assembly Guide

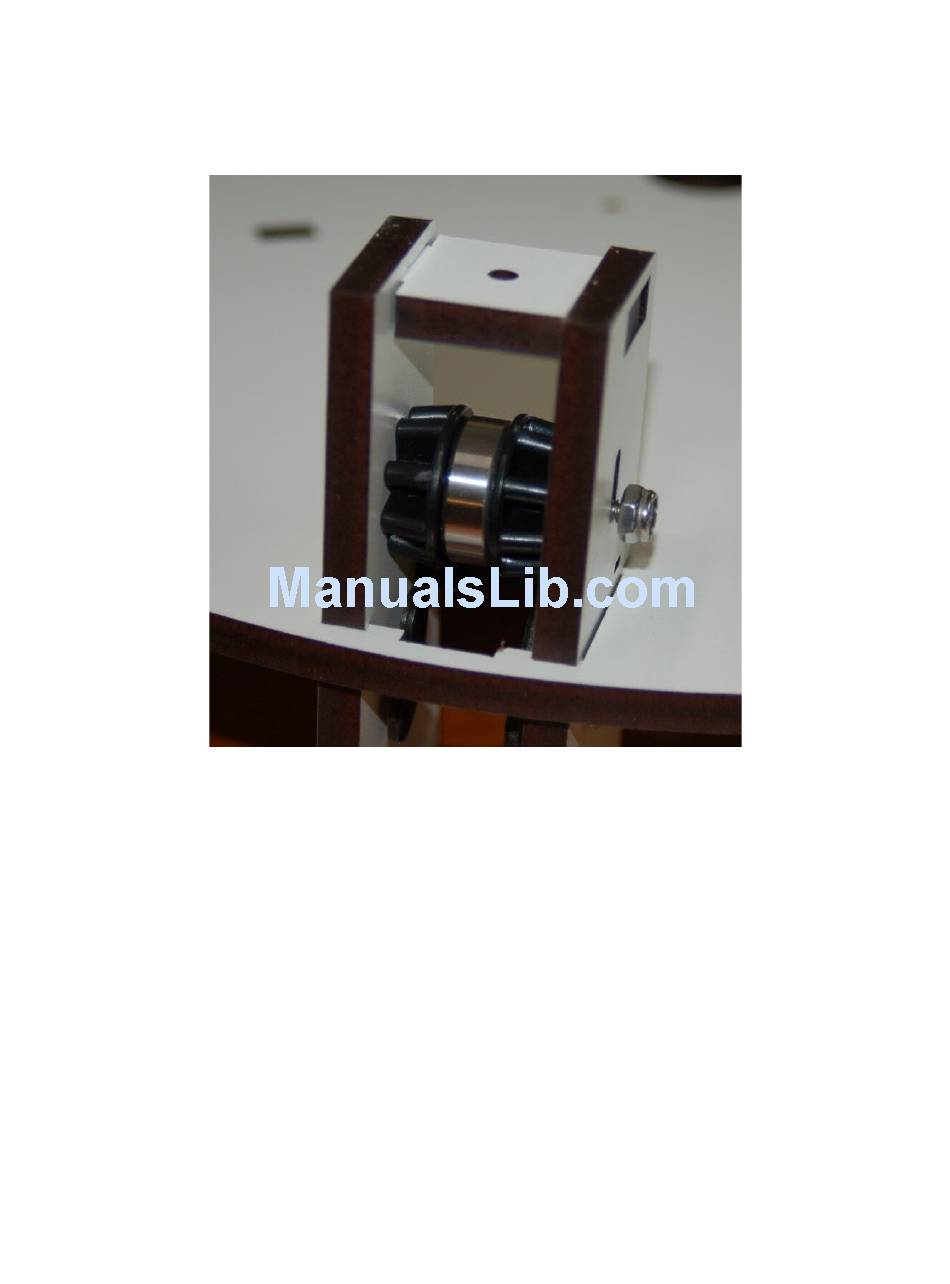

Fig. 9-5:Idler Bearing installed.
123
