Installing the Spool Holder Mount

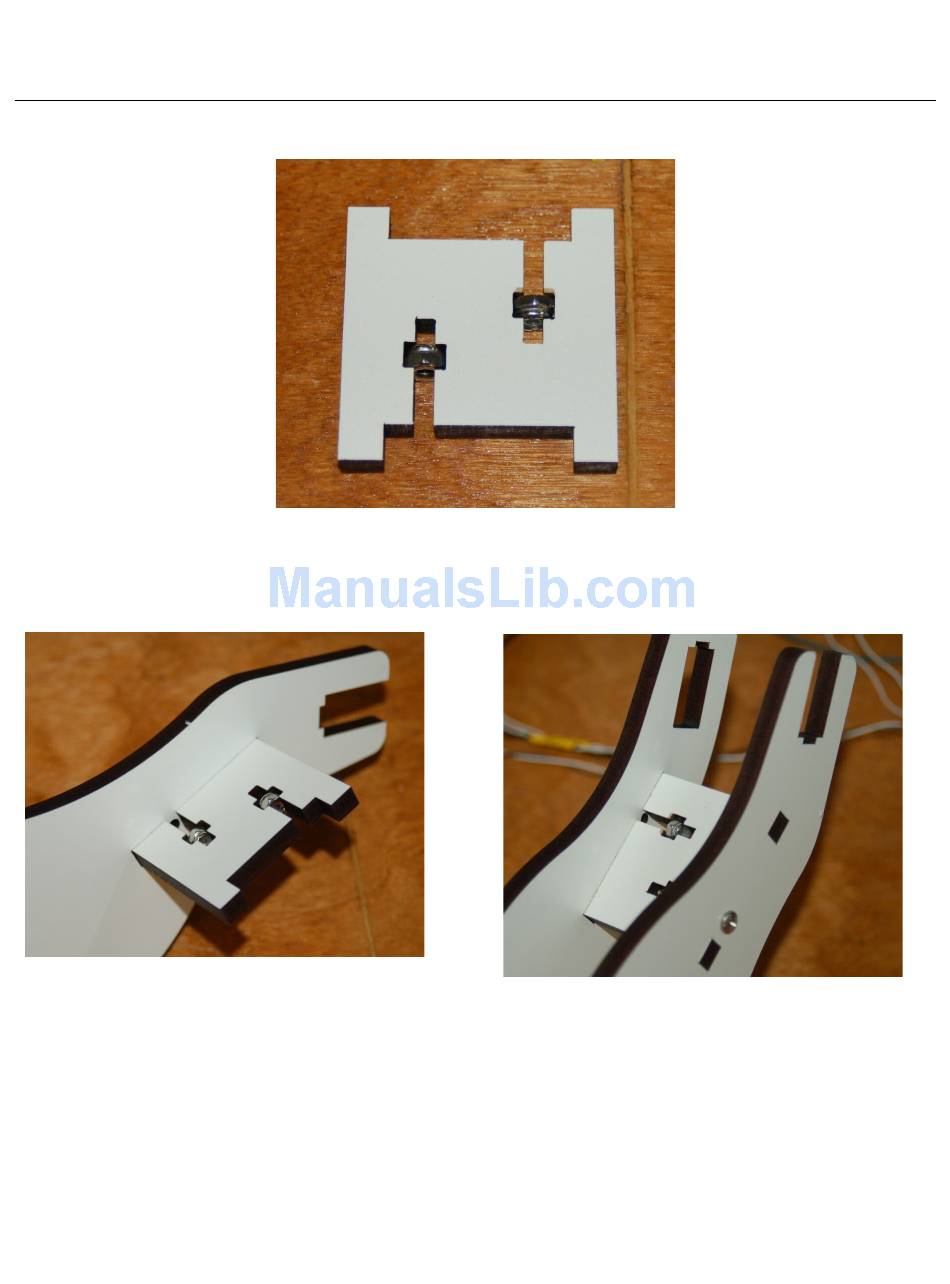

First, insert two of the #6-32 Nylon lock nuts into the spacer plate as shown in Fig. 16-3.
Insert the spacer plate into the outer spool mount and lock it in place with a #6-32, 1" pan head
screw. Next, place the inner spool mount on the spacer plate and install a #6-32, 1" pan head screw.
Fig. 16-4:Installing the spacer plate.
Rostock MAX v2 Assembly Guide
Fig. 16-3:Spacer plate nuts.
Fig. 16-5:Outer mount added.
