Repeat the process for the other two u-joint positions.

Installing the Delta Arms

For this task, you'll need the six delta arms included in the kit.
Before installing the delta arms, clean the mold flashing from the inner and outer faces of the
arm tips that will come in contact with the u-joints. You can do this easily with an X-Acto knife.

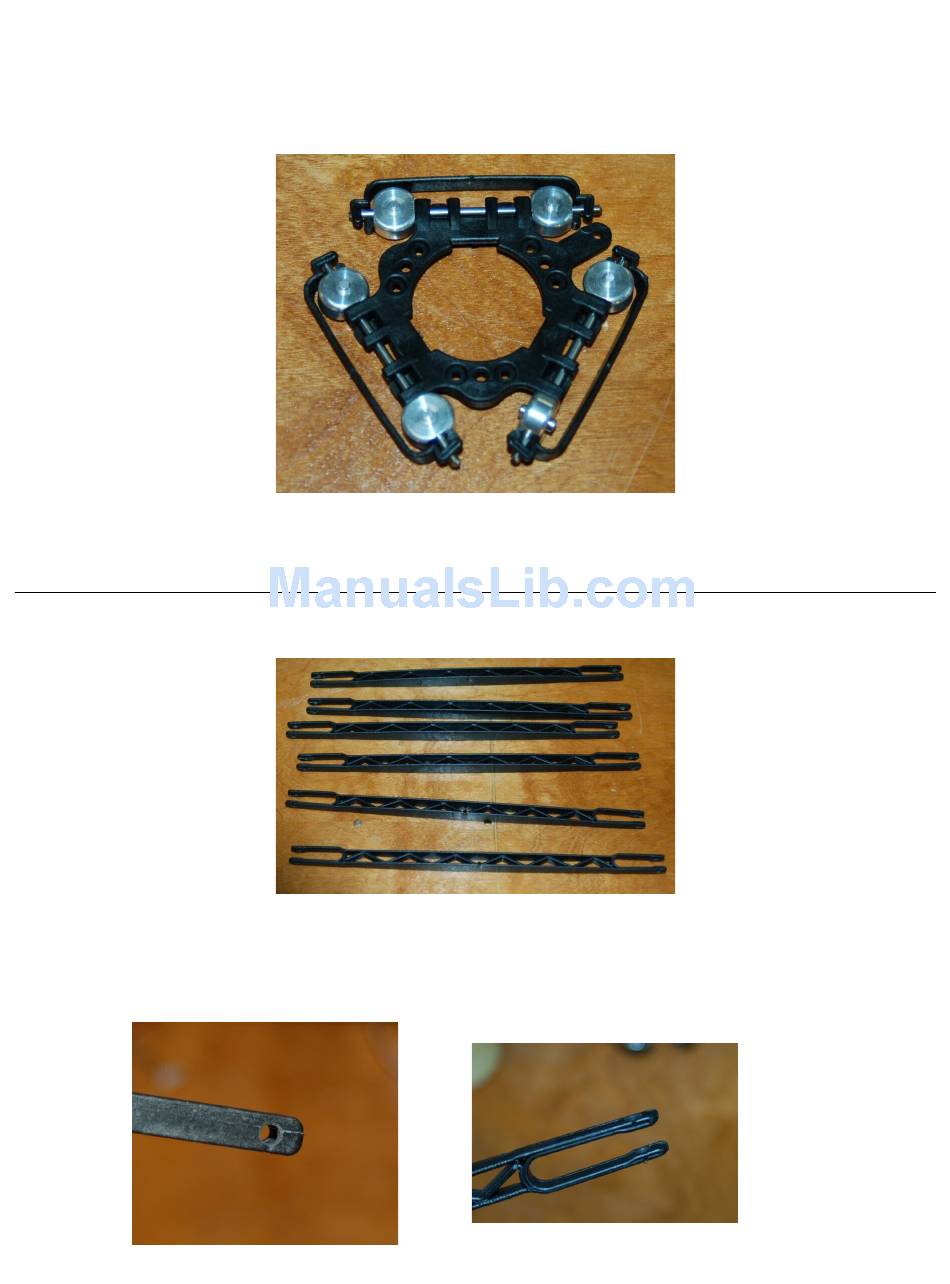

Fig. 14-6:Cleaned arm tips.
Rostock MAX v2 Assembly Guide
Fig. 14-4:Assembled Effector Platform.
Fig. 14-5:Delta Arms.
Fig. 14-7:Side view.
