Assembling The Tower Supports - SeeMeCNC Rostock MAX v2 Assembly Manual

Rostock MAX v2 Assembly Guide

Assembling the Tower Supports

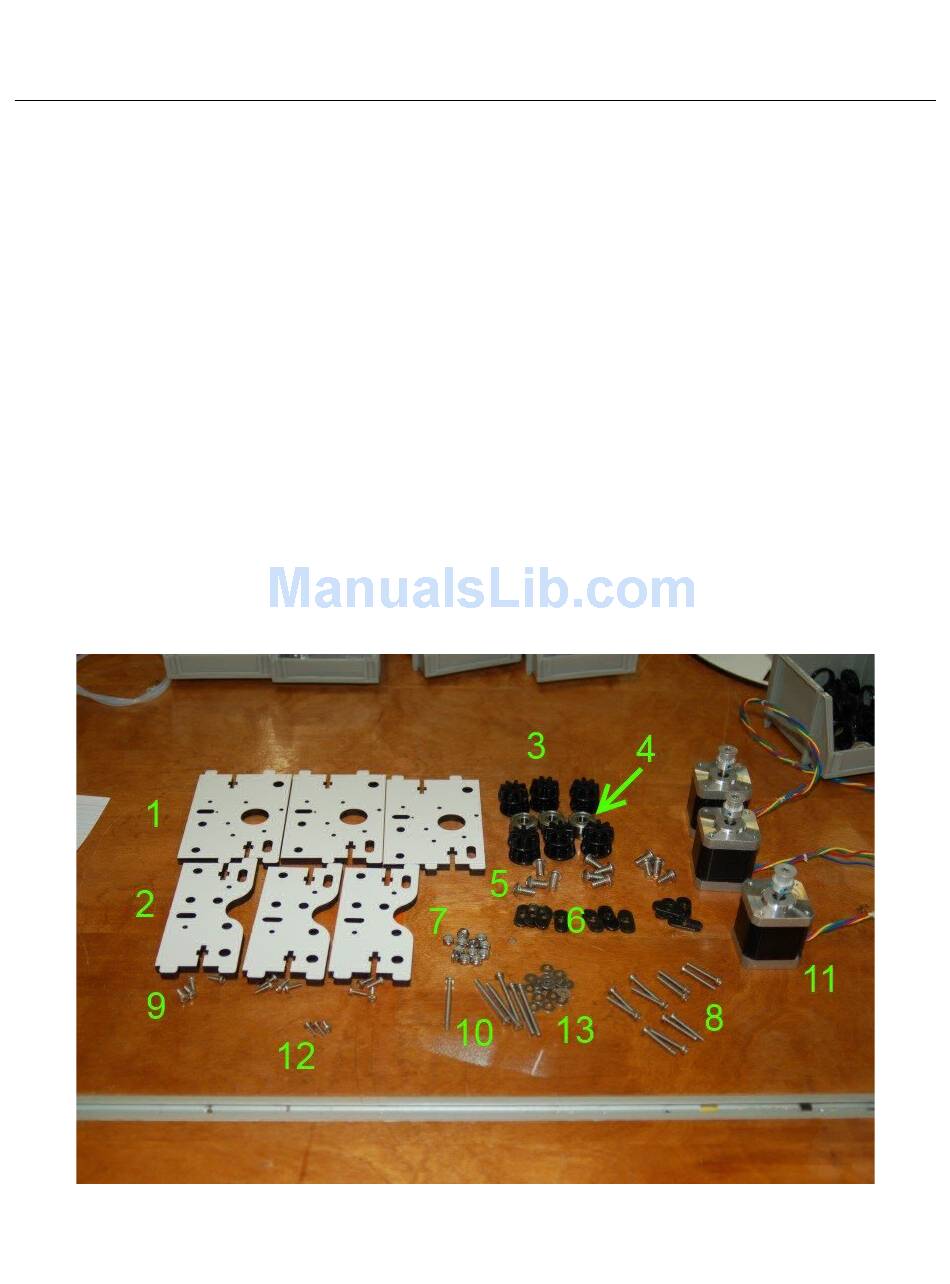

For this step, you'll need the following materials:
1. (___) Stepper Motor Support Plates (3)
2. (___) Tower Support Plates (3)
3. (___) Cheapskate Idler Bearing Spacers (12)
4. (___) 608ZZ Roller Bearings (6)
5. (___) ¼-20 1/2" Button Head Cap Screws (12)
6. (___) ¼-20 T-Slot nut plates (12)
7. (___) #6-32 Nylon Lock Nuts (12)
8. (___) #6-32 1" Stainless Steel Pan Head Screws (6)
9. (___) M3 10mm Stainless Steel Pan Head Screws (12)
10. (___) #6-32 1-3/4" Stainless Steel Pan Head Screws (6)
11. (___) Stepper Motors (3)
12. (___) #4, 3/8" Stainless Steel Pan Head Sheet Metal Screws (3)
13. (___) #6-32 Stainless Steel Flat Washers (6)
43
