Bend the black wire "up" as you did with the red one and carefully line up the thermistor wires
next to the black lead as shown to the left
tape as shown in Fig. A-21. This is an important step as it acts as a strain-relief to help prevent the
thermistor from pulling out of the hot end. If the thermistor is pulled out during a print, the hot end
will overheat and destroy the PEEK (the tan section) barrel.
Trim a bit from the four wires in order to ensure they're all the same length. Strip 3/16" of
insulation from the four wires coming from the hot end and crimp on four male crimp pins.
Fig. A-23:Pin Locations.
Rostock MAX v2 Assembly Guide

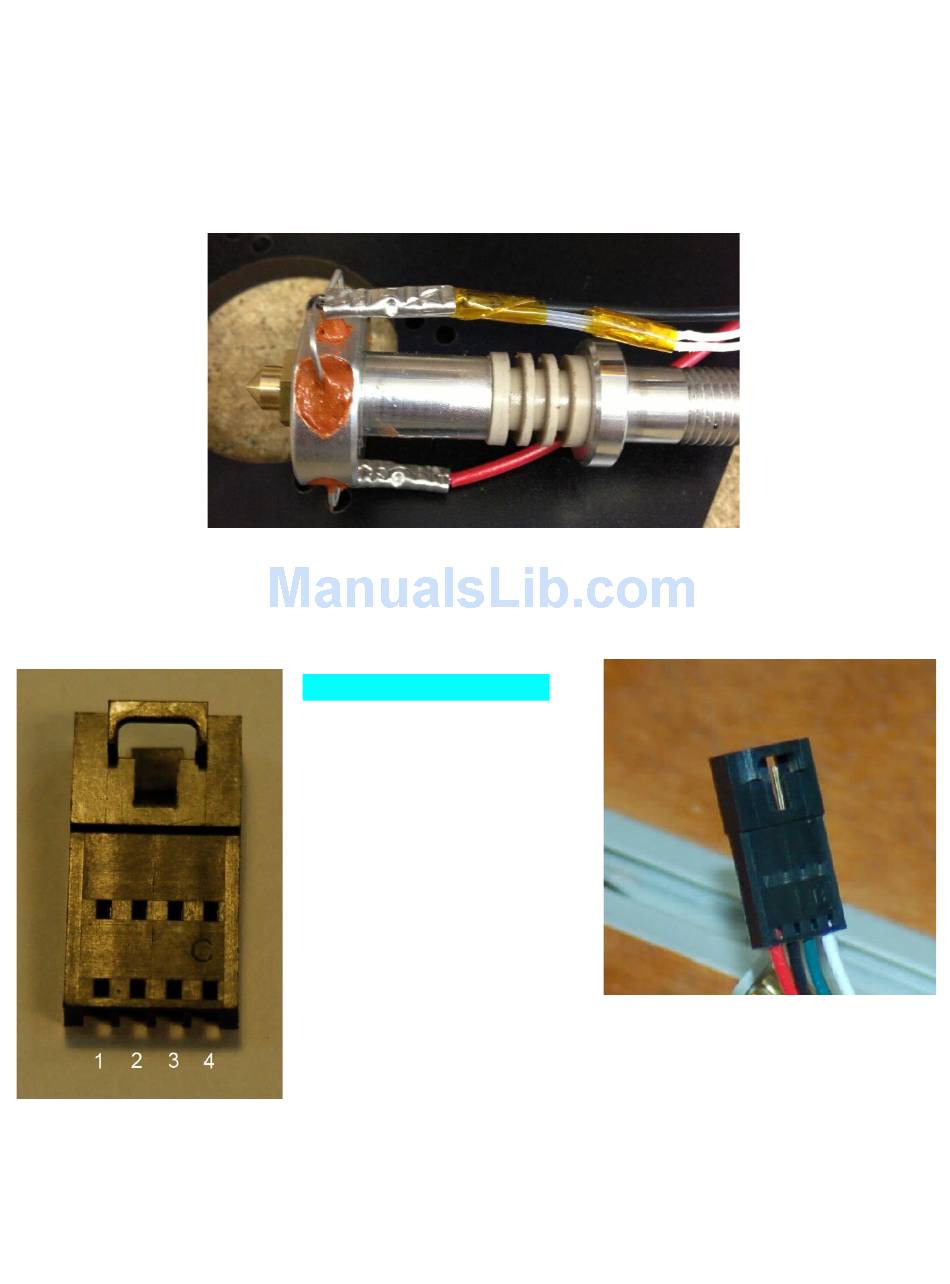

Fig. A-22:Completed thermistor wiring.
Pin
1
2
3
4
Table A-3:Hot End Pin out.
Bind the thermistor leads to the black wire with Kapton
Color
Red
Black
Green
White
Fig. A-24:Finished Connector.
