SeeMeCNC Rostock MAX v2 Assembly Manual page 222

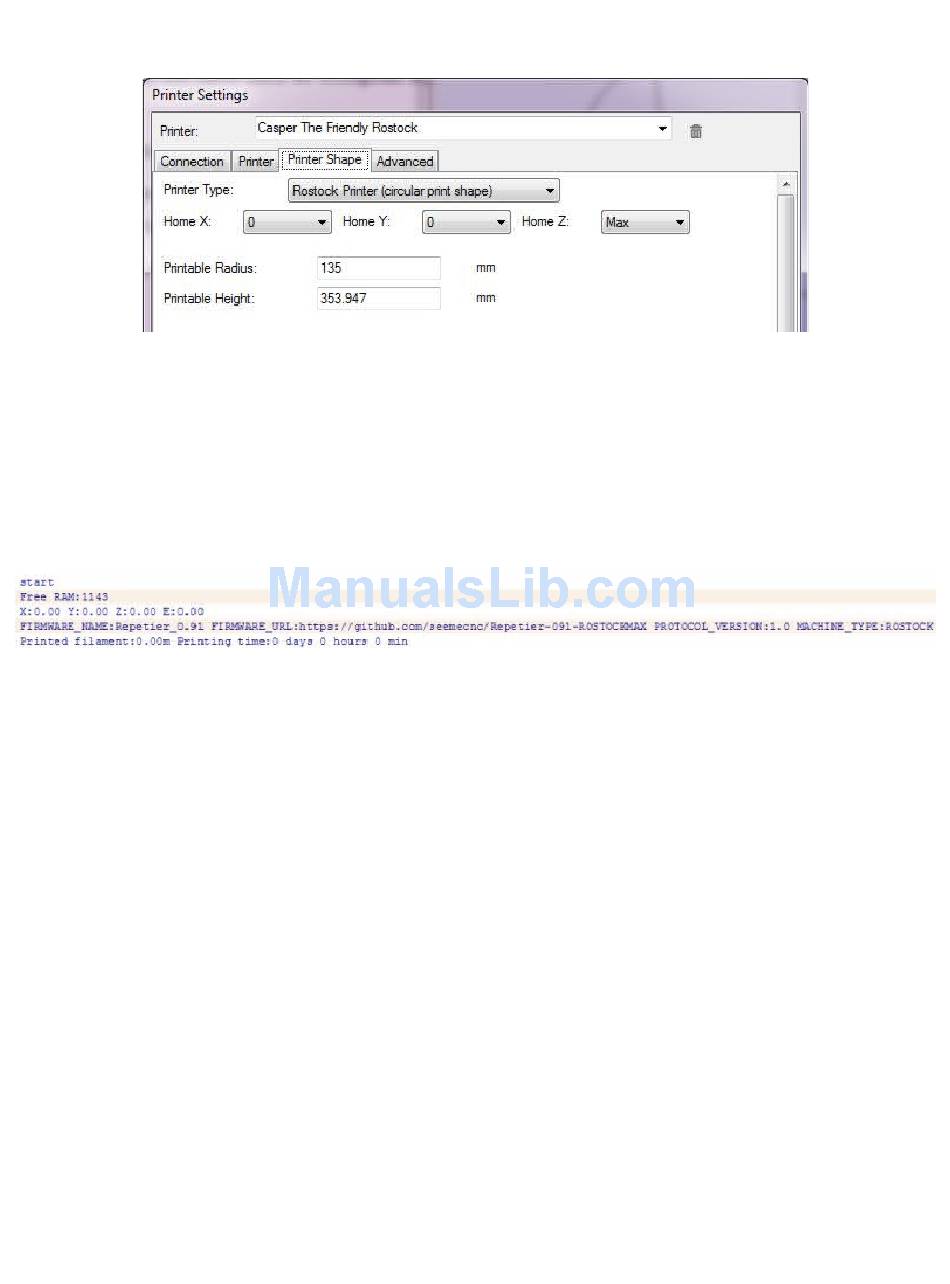

Fig. 21-3: Printer Settings - Printer Shape
Just like you did for the Printer tab, make sure your Printer Shape settings match the above
example. You'll be changing the Printable Height field to precisely match your printer's height shortly.
Click the "OK" button to save your changes.
Click on the "Connect" icon to start Repetier-Host talking with your printer. If your connection
is successful, you'll see a display similar to the example below appear in the Repetier-Host log window.
Fig. 21-4: Successful connection.
Rostock MAX v2 Assembly Guide
222
