Installing the Top Plate

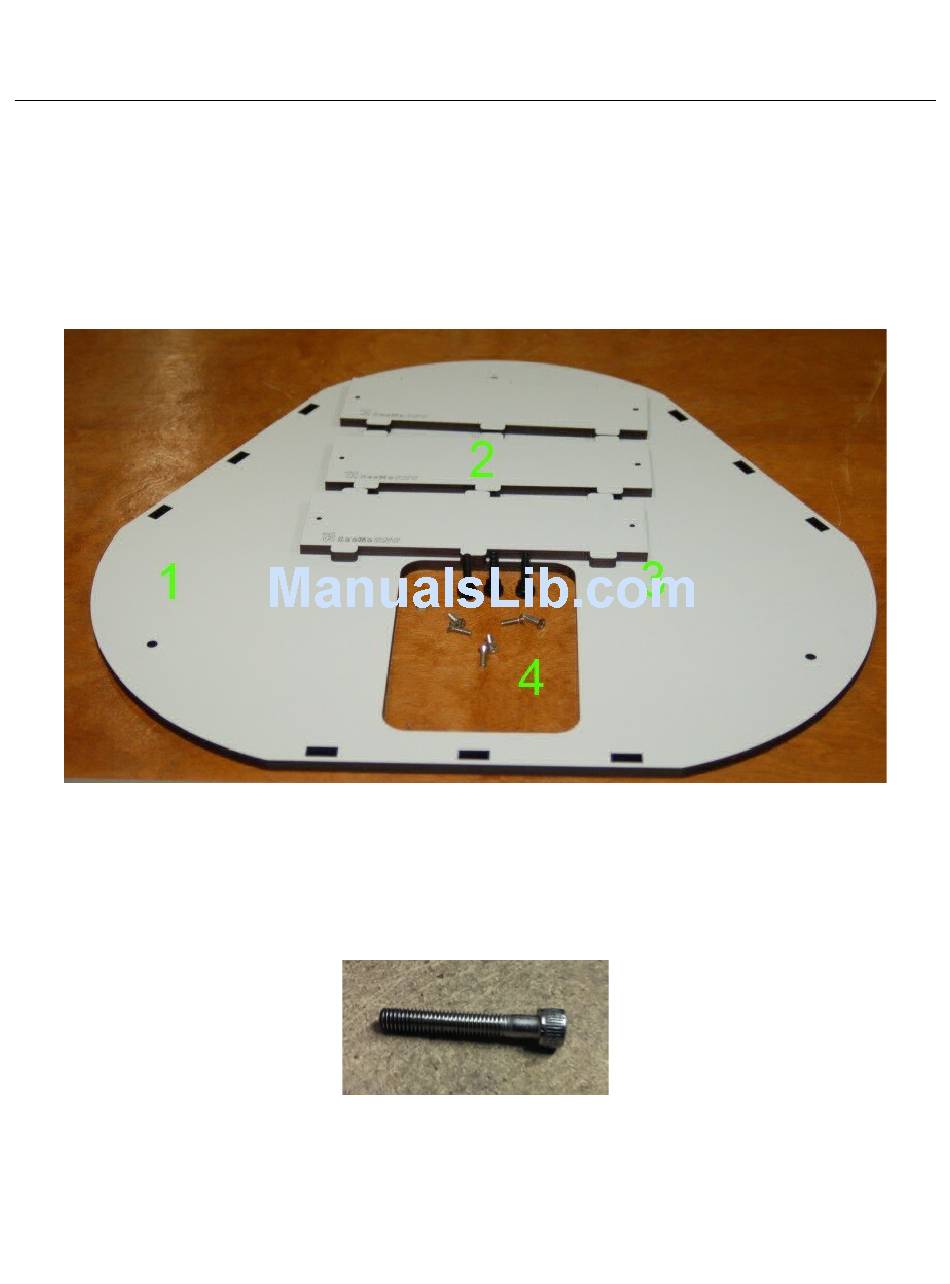

For this task, you're going to need the following components:
1. (___) Top Plate (1)
2. (___) Top Plate Sides (3)
3. (___) #10-32 Black Nylon Thumb Screws (3)
4. (___) #6-32, 1/2" Stainless Steel Flat Head Screws (6)
The first thing you'll need to do is locate the #10-32, 5/8" socket head cap screw. You're going
to use this to cut threads into the mounting holes that will be used to hold the top cover in place.
Now by all means – if you've got a real, #10-32 tap – use it!
Rostock MAX v2 Assembly Guide
Fig. 16-11:Stop laughing.
