In the plastic box the LCD panel came in, you'll find two gray, flat ribbon cables. These cables
connect the LCD to the RAMBo controller via the LCD interface board.
Label each end of one ribbon cable with the letter "A". Label the ends of the other ribbon cable
with a "B".
Install the ribbon cables on the LCD interface board as shown below.

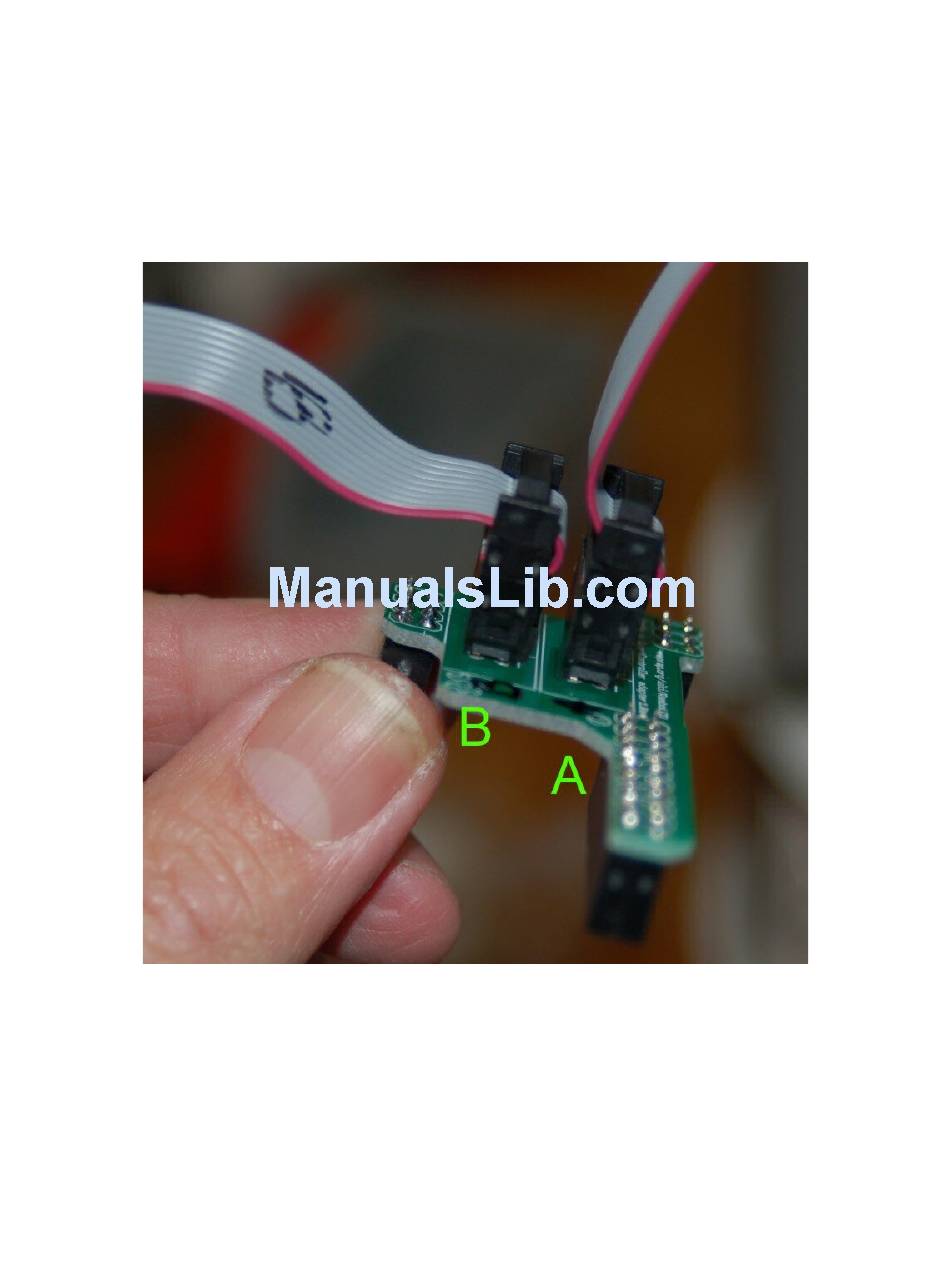

Fig. 18-26:LCD interface board.
Rostock MAX v2 Assembly Guide
194
