Prepping the Upper Tower Mounts

Before you can install the upper tower mounts, three tower depth stop screws need to be
installed as shown below.

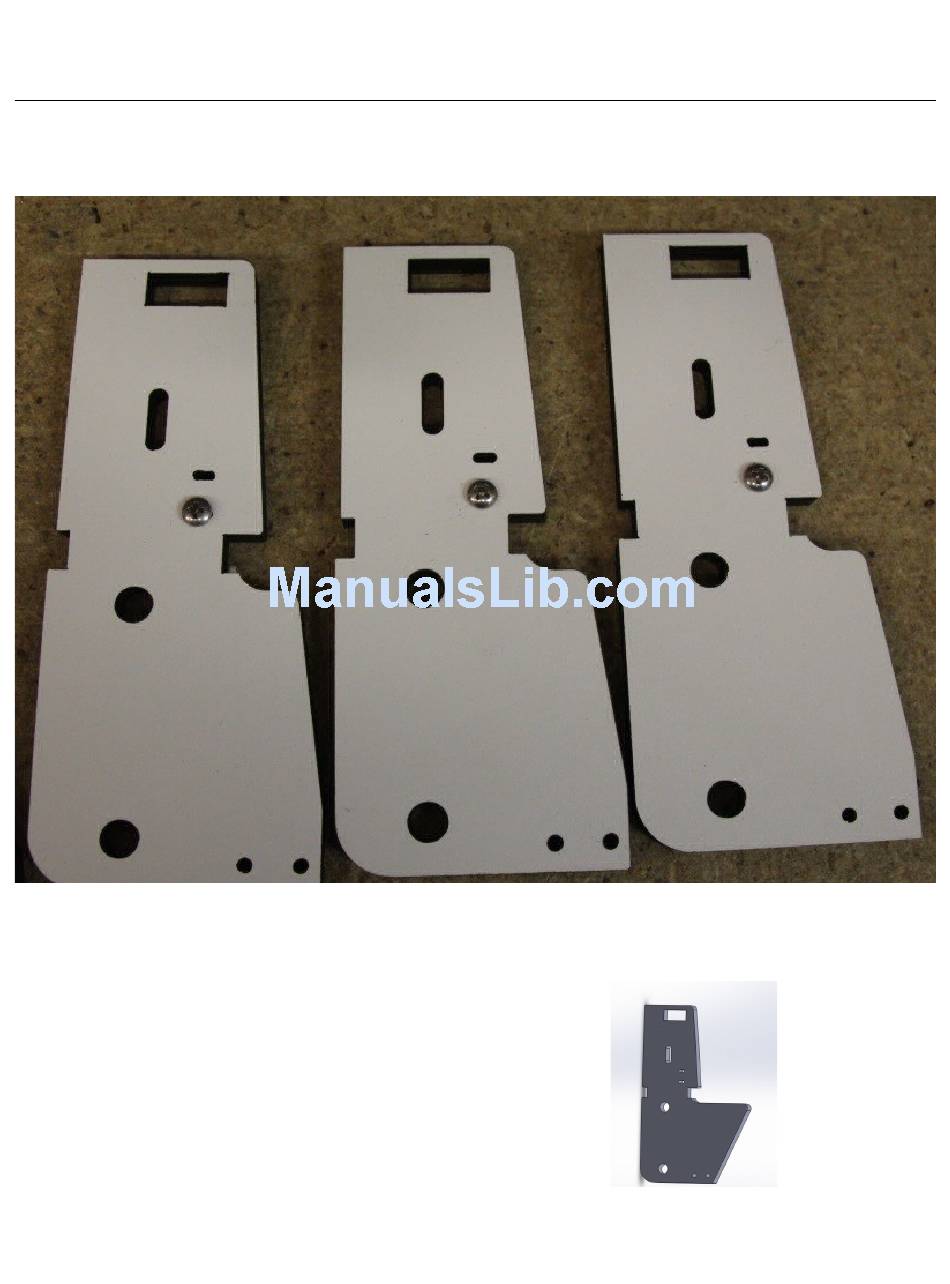

Fig. 7-2: Upper tower mounts (preliminary).
These screws perform the same function as the ones previously installed in the lower tower
mounts. This helps guarantee that the top section will be at the correct height on all three towers.
Note that your kit will ship with a part that looks very
much like the one to the right. This was a very recent design
change and is not reflected in the manual. It is strictly a cosmetic
change.
