17 – Assembling & Installing the LCD Panel Mount
For this task, you'll need the following components:
1. (___) Front Panel (1)
2. (___) LCD Mounting Brackets (2)
3. (___) #2-56, 5/8" Pan Head Screws (8)
4. (___) #6-32 Nylon Lock Nuts (2)
5. (___) #2-56 Finish Nuts (8)
6. (___) #6-32, 1" Pan Head Screws (2)
7. (___) LCD Panel (1) (Not Shown.)

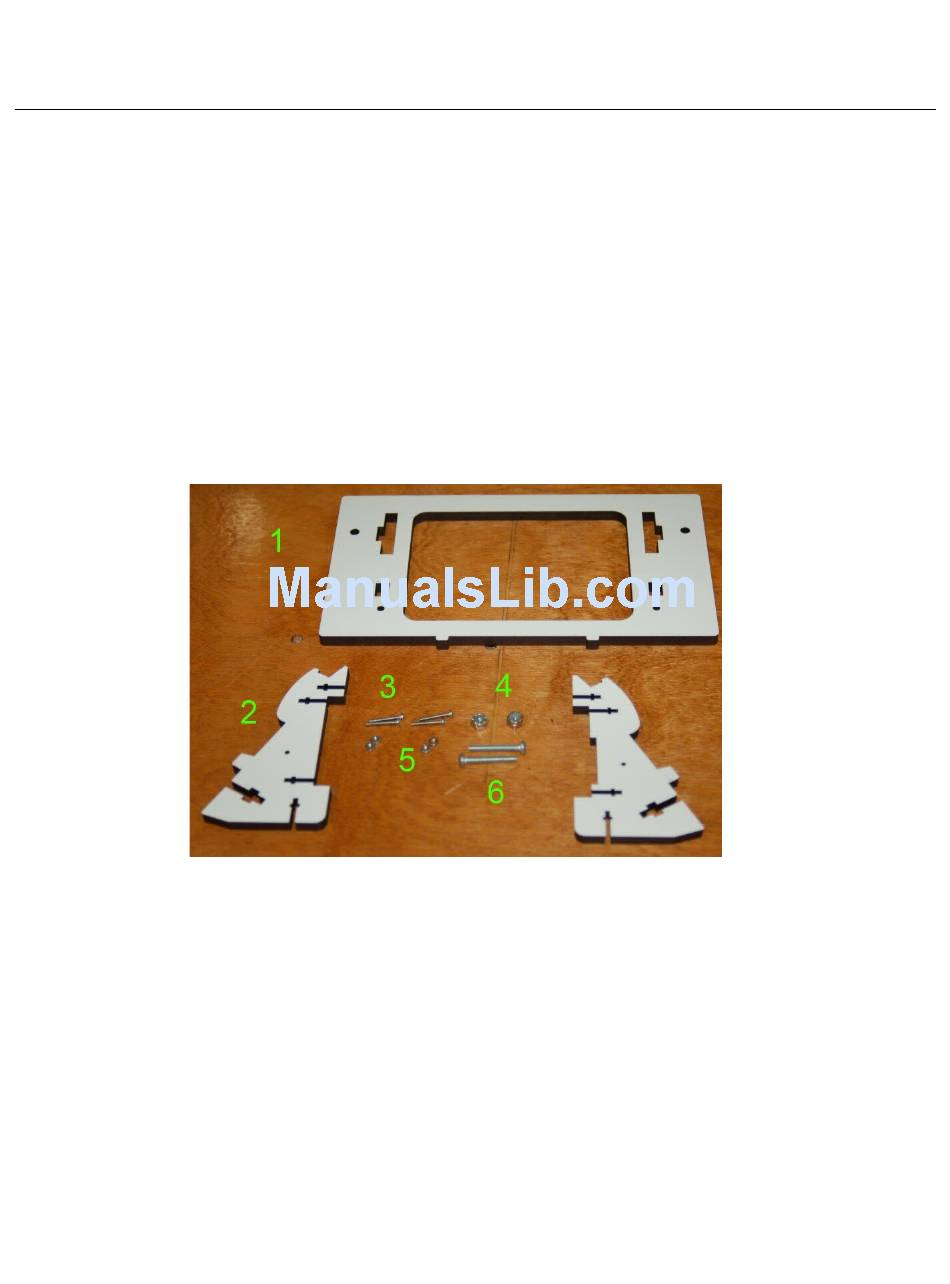

Fig. 17-1:LCD Panel Mount Parts.
Note that the photo above doesn't show all the #2-56 screws & nuts that are required for this
assembly step. You may notice throughout this process that some of the #2-56 hardware is missing in
the photos – this was due to an accidental part shortage when I was doing the initial photography.
Please follow the text and make sure all the #2-56 hardware is used as directed.
