Insert the PEEK fan shroud in the space between the hot end mount and effector platform as
shown:

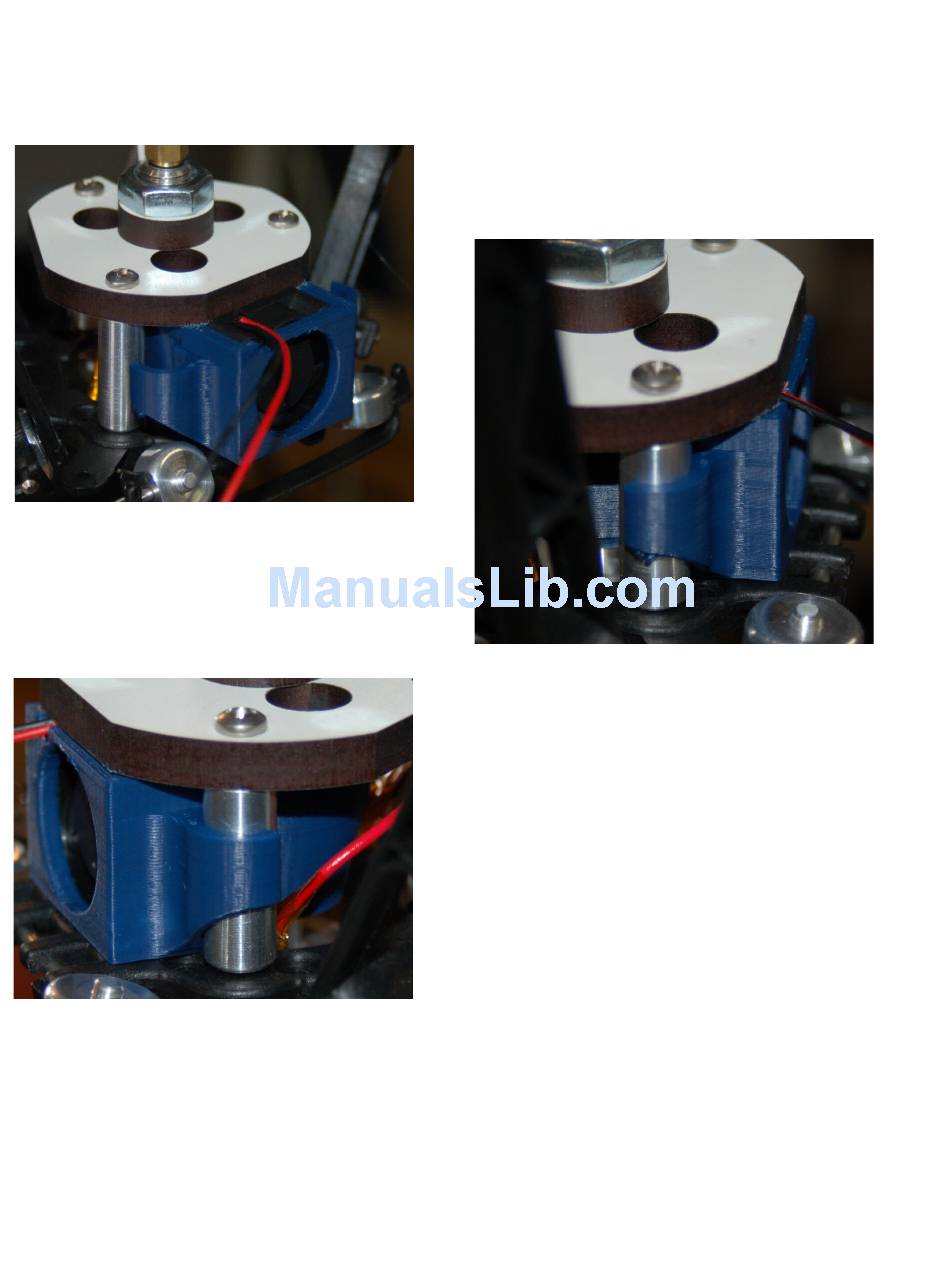

Fig. 23-18: PEEK fan installation.
Make sure that you've got the arms on the
fan shroud fully seated as shown in Figs. 23-19 and
23-20.
Fig. 23-20: Shroud fully seated, right side.
Rostock MAX v2 Assembly Guide
Lift up the hot end mounting plate a bit and press
the PEEK shroud into it's fully installed position.
Fig. 23-19: Shroud fully seated, left side.
Note how the power wire passes to the outside of
the fan shroud body. Also make sure that the power
wires for the fan are not pinched between the hot
end mount and the fan shroud. They should be
resting in the notch.
Wire the fan into the PEEK fan wires by either
using JST connectors like I've done, or just splice
them together and cover the splice with a fold of
Kapton tape.
