Installing the Top Plate

The next step requires that you open up the Onyx Heated Bed package and remove the included
#4-40 T-Nuts. These will be installed on the underside of the top plate as indicated by the green
squares in Fig. 4-37. You'll also need 12 #6-32 1" Stainless Steel pan head screws in order to affix the
top plate to the base.

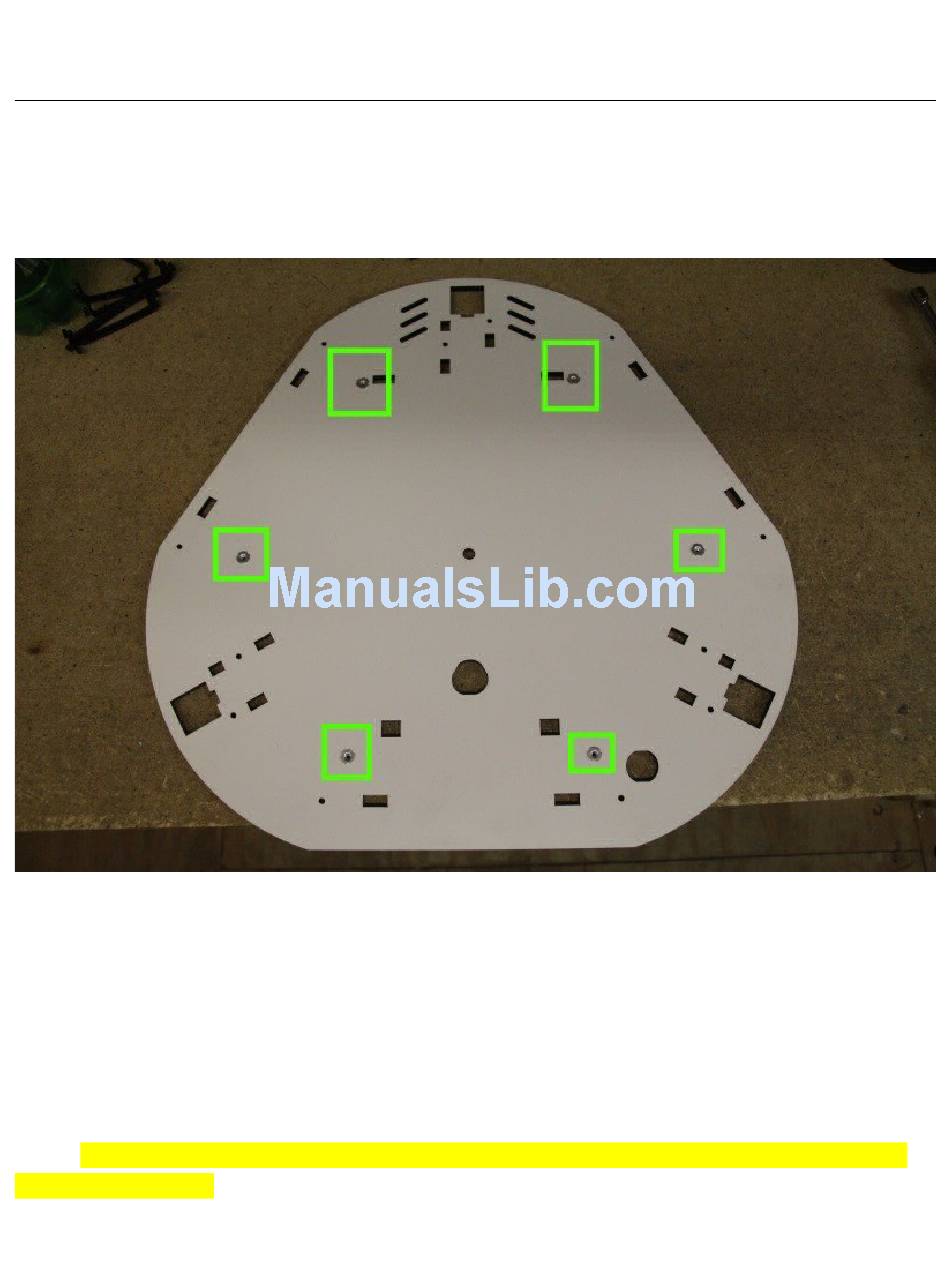

Fig. 4-37: T-Nut locations.
Please ensure that you've oriented the top plate as shown above so you'll be installing the T-Nuts
on the underside of the top plate. The T-Nuts can be installed by lightly tapping them in with the back
of a screwdriver, or by "drawing" them in using one of the #4-40 flat head screws that are included in
the Onyx package. Make sure you use a small washer under the flat head screw if you do this,
otherwise you could damage the holes in the top plate.
You may want to cover the T-Nuts with Scotch tape in order to make sure that they don't
accidentally get driven out of the holes when you begin installing the Onyx Heated Bed.
If you have a Rev6 Onyx heated bed, the mounting holes will be rotated 30 degrees from the
position shown above.
