Wiring the Fans, Hot End, and Thermistor Connectors

First, we're going to mount the JST connectors to the PEEK and Layer fan leads (the two pair of
26ga wires).
The pair of wires that you tied a knot in are going to be the PEEK fan wires. Strip about 3/16" from the
ends of the wires and crimp on a female crimp pin to each wire. Fold the PEEK fan wires back and add
female crimp pins to the other pair. Take two female JST connector shells and mark them as shown
below.
This will help identify the PEEK ("P") and Layer ("L") layer fans. The JST connectors have
pin numbers molded into the lower face of each connector. Insert the black (-) wire into the pin #1
position and insert the red (+) into the pin #2 position.
Rostock MAX v2 Assembly Guide

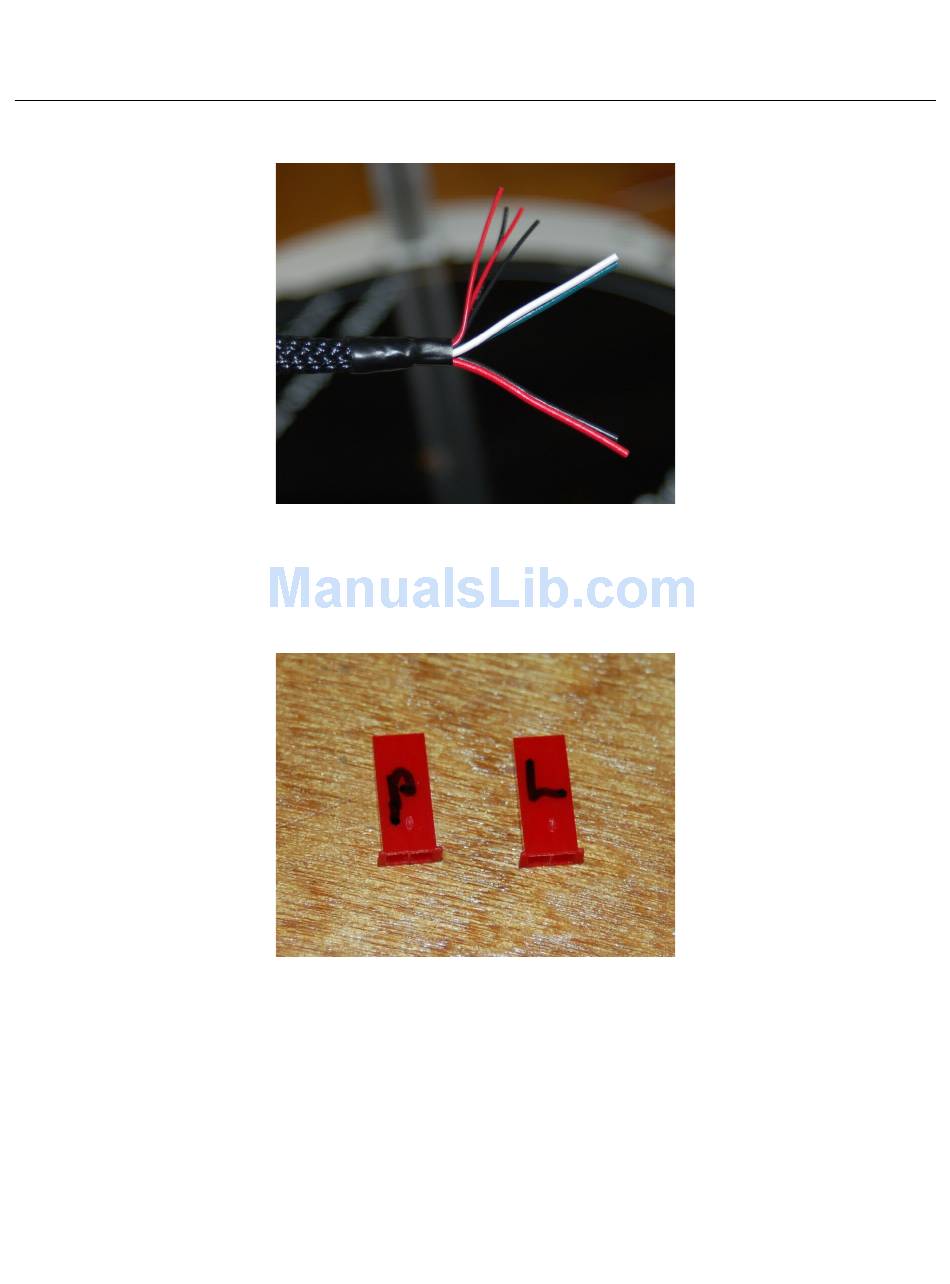

Fig. A-5: Hot end wires (knot not shown.)
Fig. A-6:Marked fan connectors.
