The thermistor connections are next!
Plug the two pin thermistor wire coming from the
hot end into the position marked "T0".
Plug the two pin thermistor wire coming from the
Onyx heated bed into the position marked "T2".
Now you need to install the big power connector in
to the socket on the upper right edge of the RAMBo
board:

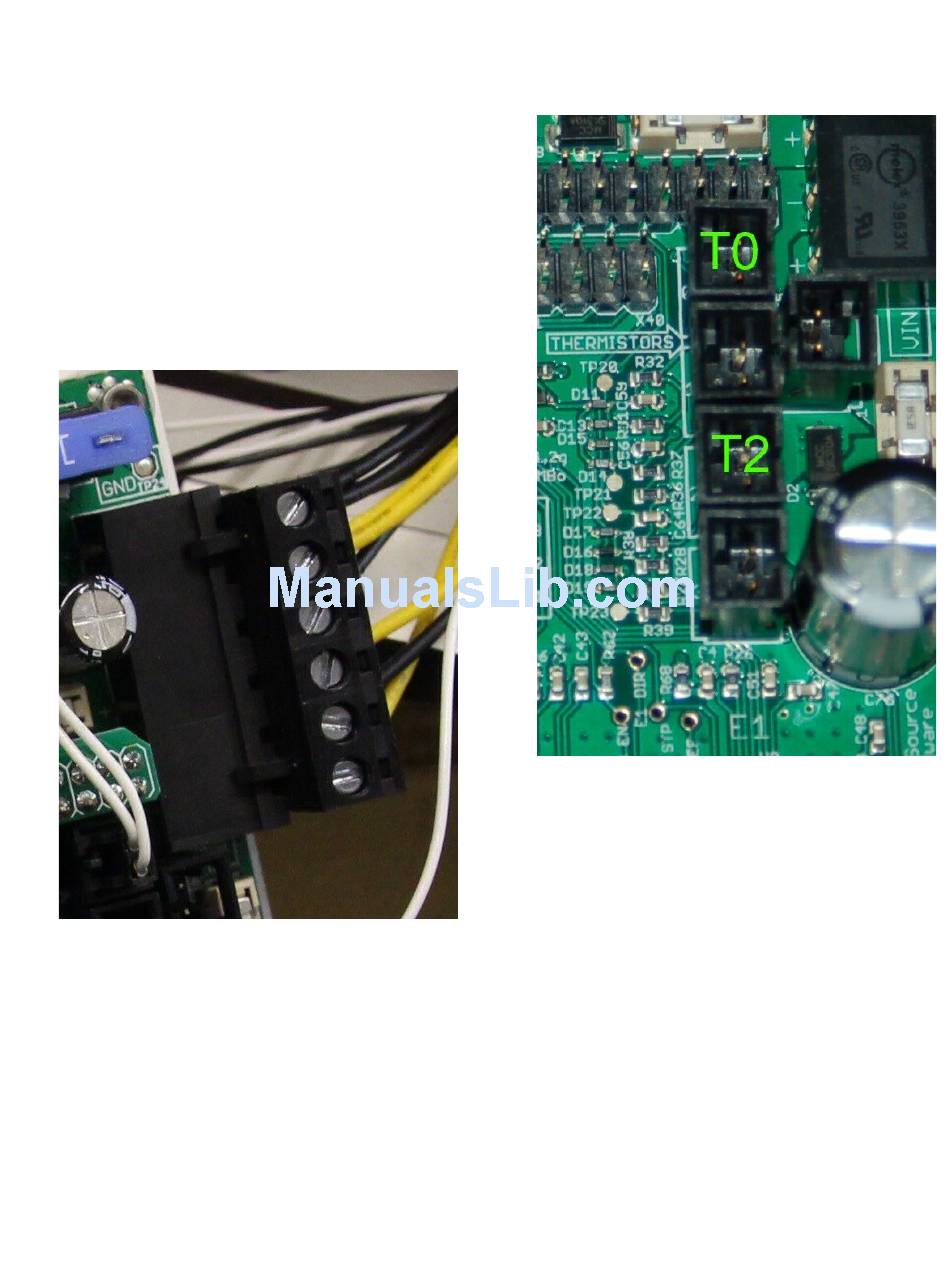

Fig. 18-23:Power connector installed.
Rostock MAX v2 Assembly Guide
Fig. 18-22:Thermistor sockets.
