Attaching the hot end to the mounting plate is very simple. Slide the hot end through the center
hole in the mounting plate and then slide the mounting plate spacer over the hot end. Replace the nut
(tighten) and the PTF connector (tighten) and you're done. Do NOT grip the PEEK section with
pliers! You'll mar or damage the PEEK section.

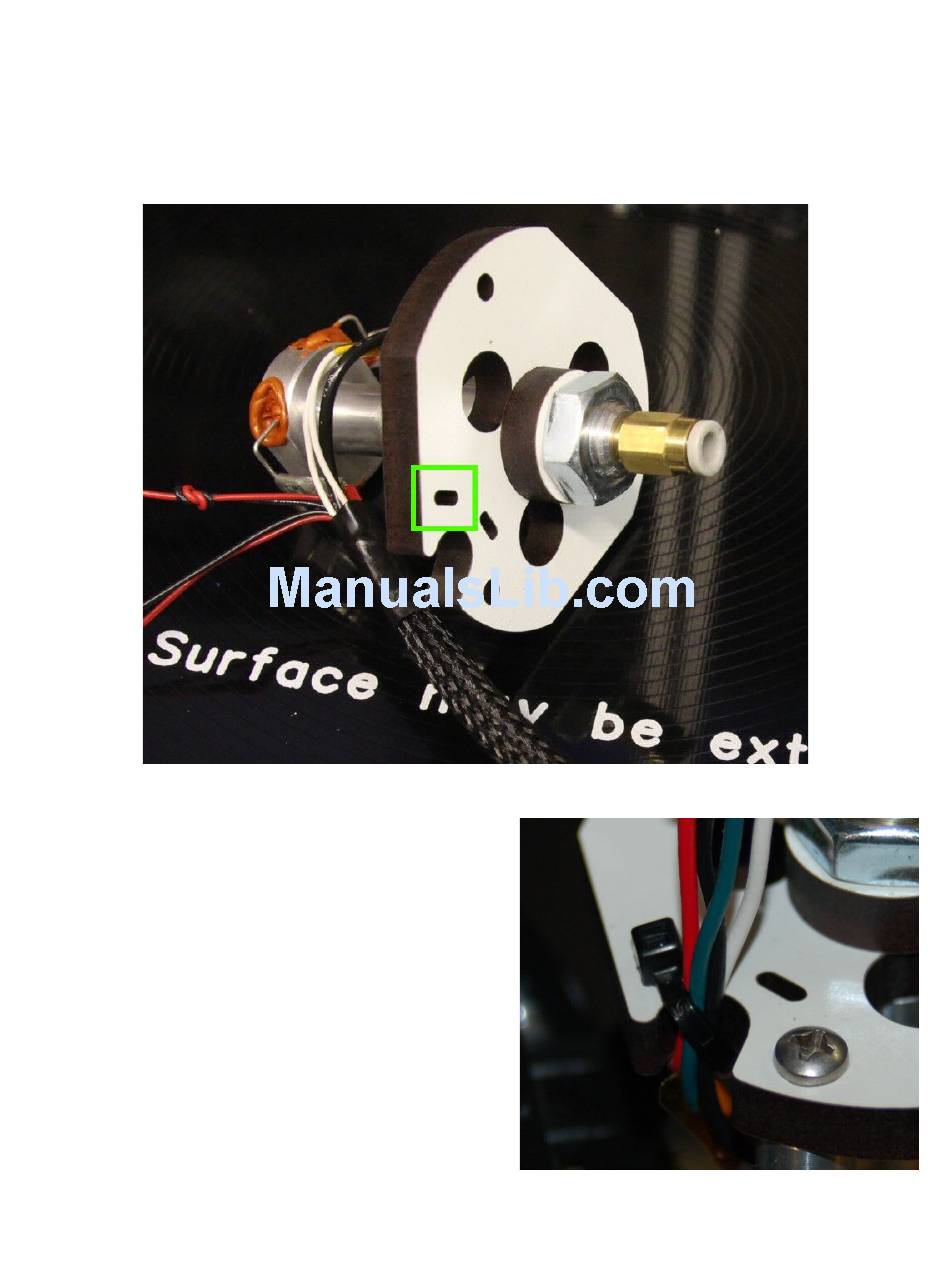

Fig. 13-20:Hot end mounted.
The last step is to install a wire tie through the
slot highlighted in green, above. This will ensure that
the wiring doesn't pull free from the hot end during
normal operation.
See the photo to the right for details on how the
wire tie is installed.
Rostock MAX v2 Assembly Guide
Fig. 13-21:Wire tie detail.
