Rostock MAX v2 Assembly Guide
4 – Building the Base
In order to build the base, you'll need the following parts:
1. (___) Base Plate Bottom, Base Plate Top (Not Shown)
2. (___) Vertical Supports (3)
3. (___) RAMBo Mounting Legs (2)
4. (___) Foot Assemblies (6)
5. (___) #6-32 Nylon Lock Nuts (12)
6. (___) #6-32 1/2" Stainless Steel Flat Head Screws (6)
7. (___) #6-32 1" Stainless Steel Pan Head Screws (6) (Not shown.)
8. (___) #6-32 1/2" Nylon pan head screws (4) (Not shown.)
9. (___) Power Supply and Onyx Heated Bed Pack (Not shown.)

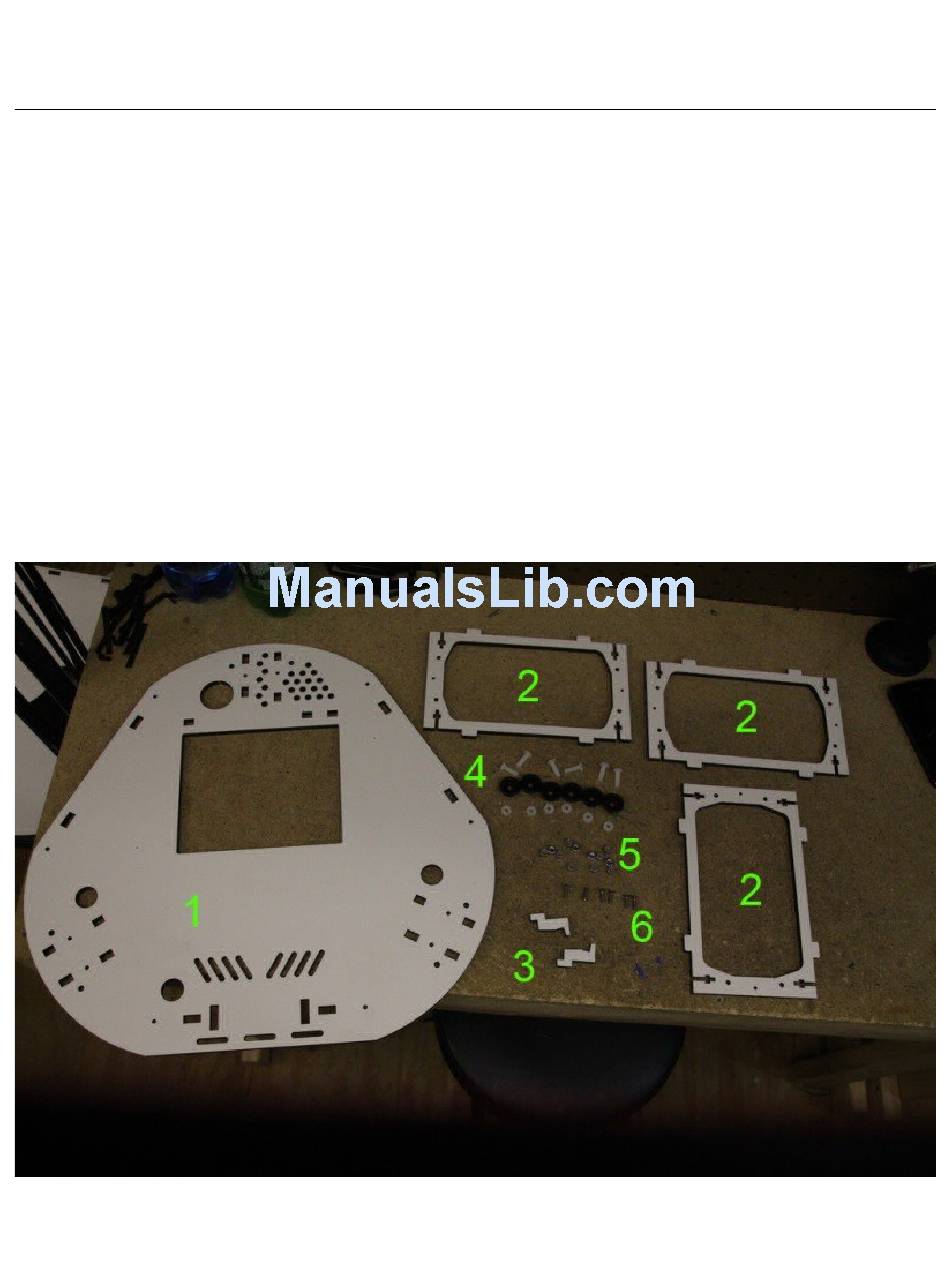

Fig. 4-1: Required base parts.
31
