Your Rostock MAX v2 kit should contain four laser cut Melamine sheets, a large box
containing hardware, injection molded parts, the RAMBo controller and the required wiring. The box
will also contain a 450W ATX style power supply.
The Melamine parts are held in place with masking tape in order to protect them during
shipping. The parts are also covered with a special cutting mask that prevents the laser cutting
operation from depositing cutting residue on the Melamine surface. You'll need to remove all of this
material before beginning construction.
Included in the three laser cut sheets is an
additional smaller sheet that contains a component
that's part of the printer's upper section, as seen in
Fig. 1-2.
Rostock MAX v2 Assembly Guide
2 – Visual Bill of Materials

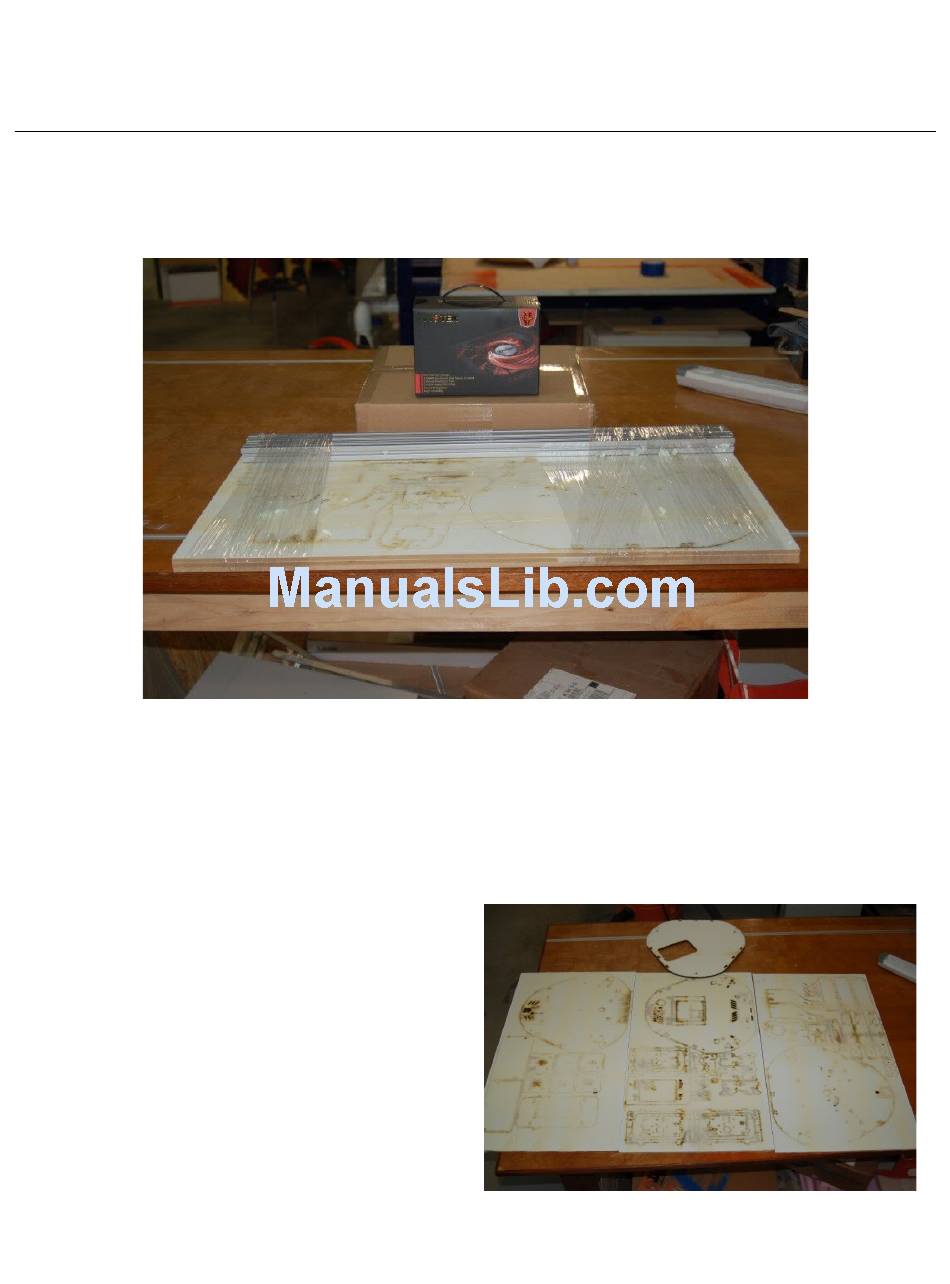

Fig. 1-1: Shipping box contents.
Fig. 1-2: Laser cut parts.
