Rostock MAX v2 Assembly Guide
Use two #6-32, 1" Stainless Steel pan head screws to attach the front vertical support over the
two RAMBo legs as shown below. Like the two back supports, leave this a bit loose in order to assist
with fitting the top.

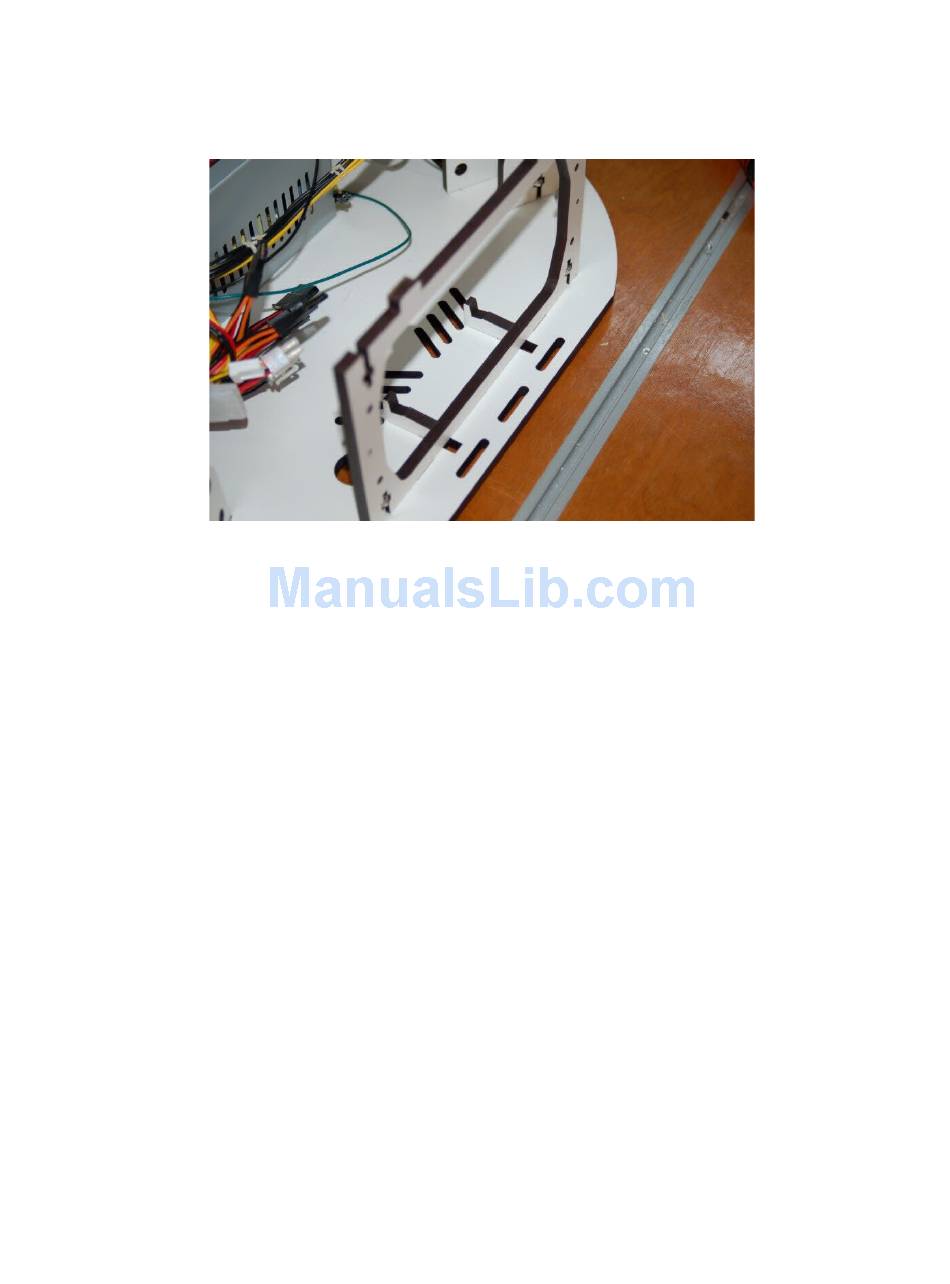

Fig. 4-17: Front vertical support and RAMBo legs installed.
41
