Rostock MAX v2 Assembly Guide
Take special care when removing the laser cut parts from the sheets. Sometimes the laser
doesn't quite cut all the way through. If you find a part like this, you'll want to gently score the back
side of the sheet along the faint cut line and then press the part out from the front of the sheet. The
front and back of the sheet is easily identifiable – the front of the sheet will have very dark laser cut
lines with "flash" deposits to either side of the laser cut line. The back of the sheet will have much
fainter marks.

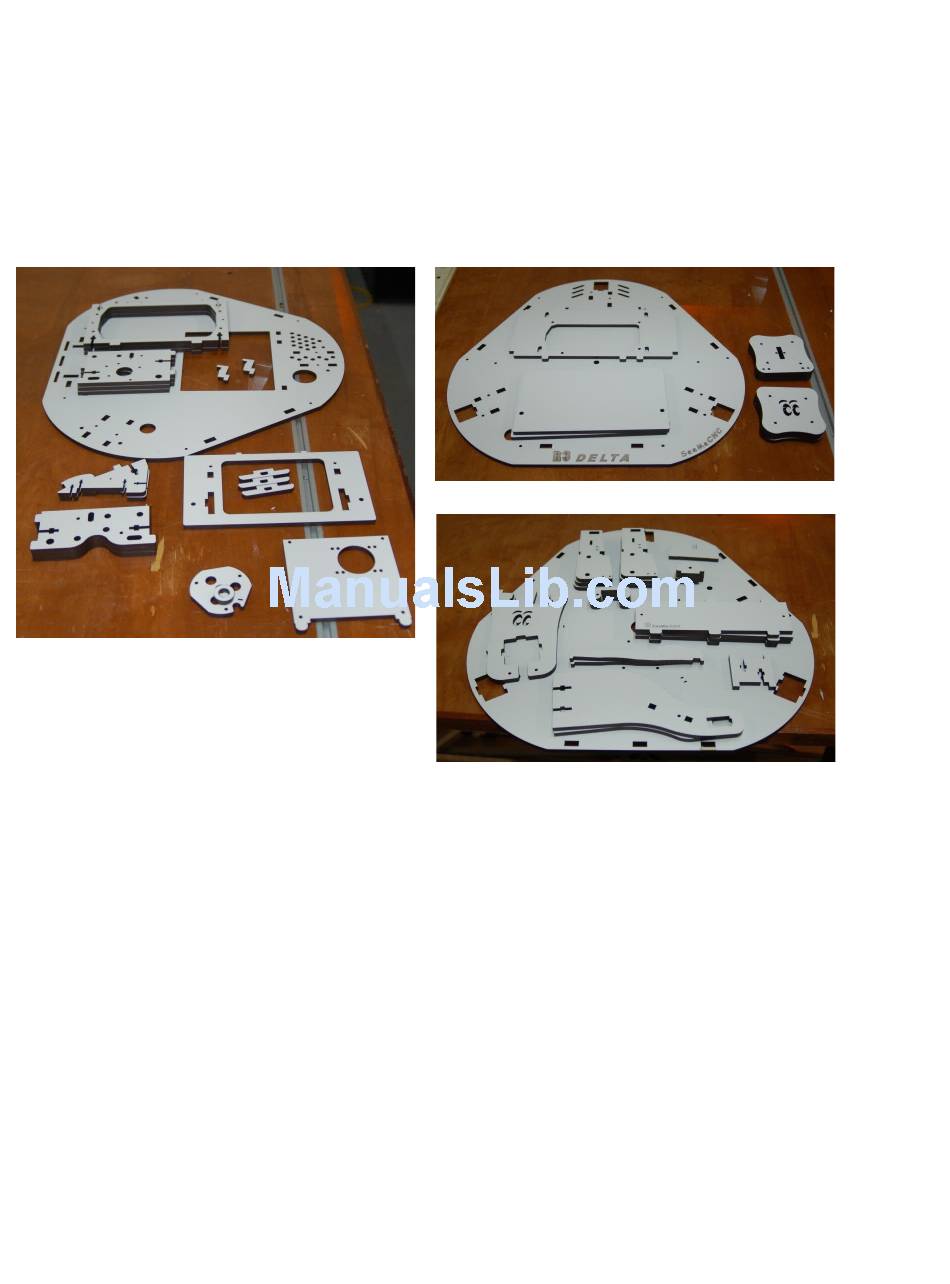

Fig. 1-4: Sheet #2 parts.
Fig. 1-3: Sheet #1 parts.
Fig. 1-5: Sheet #3 parts.
