Rostock MAX v2 Assembly Guide

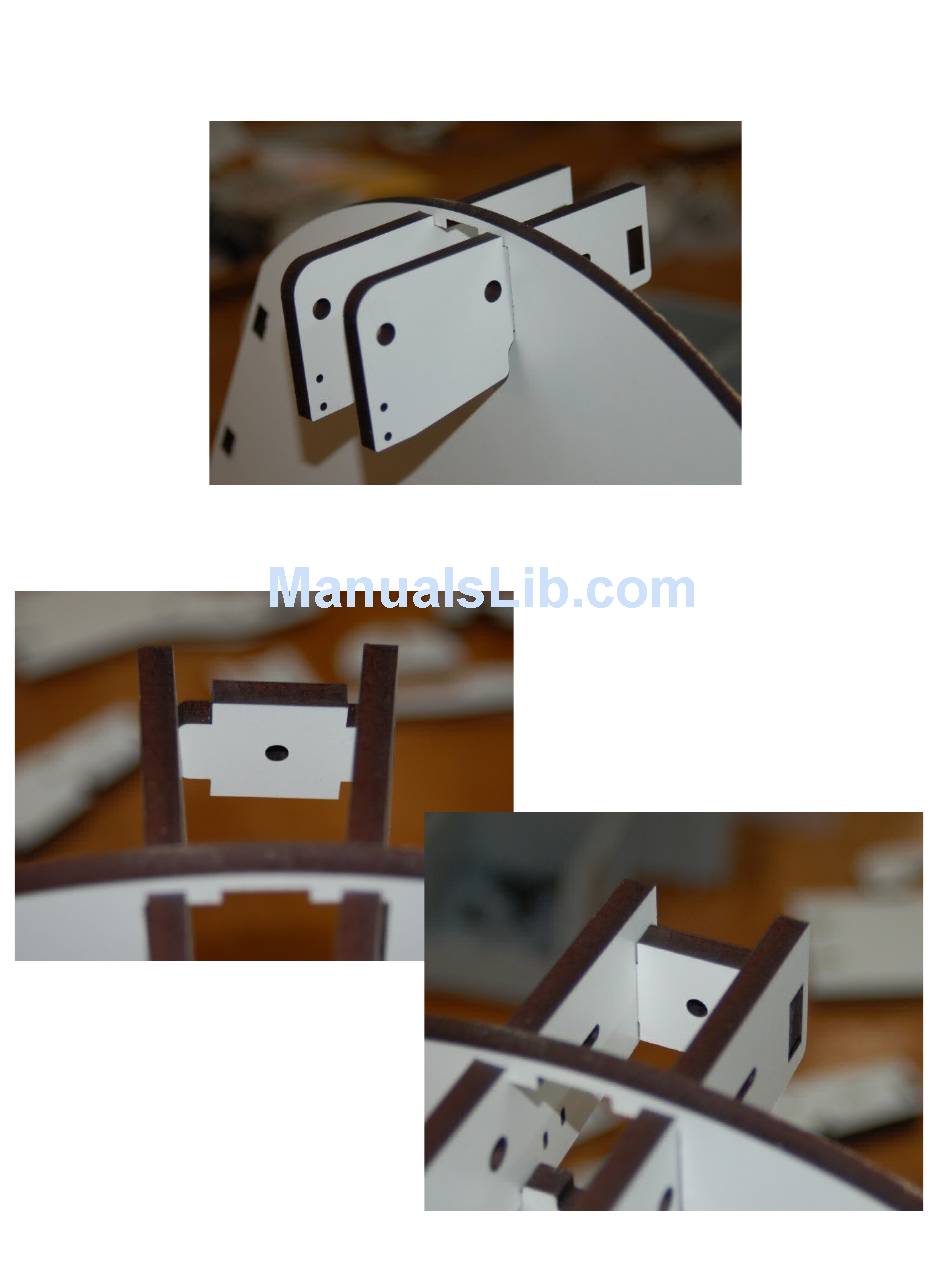

Now carefully spread them apart so that they're flush with the sides of the tower pocket.
Fig. 7-5: Tower supports fully seated.
Now you want to insert one of the tower mount spreader blocks as shown below.
The fit is very tight, but it WILL fit. Just be
careful to not break the tower support plates.
Repeat the process for all three upper
tower supports.
100
