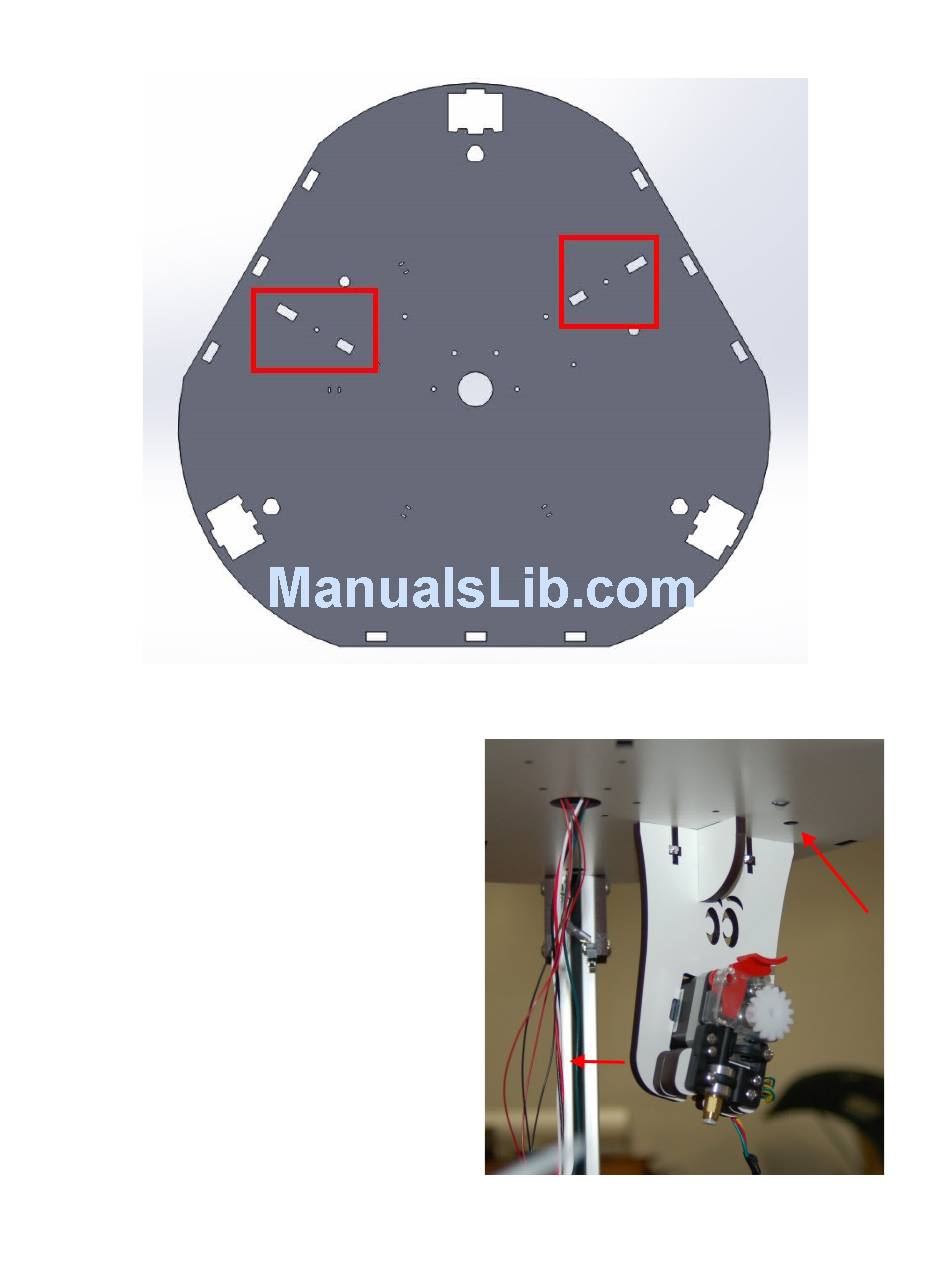

Ill. 12-1:EZStruder mounting points.
You can install your EZStruder mount in
either of the positions marked in red. The currently
shipping top finish plate for the Rostock MAX v2
will only accommodate a single extruder, but it will
allow it to be installed in either position. The
location is entirely your choice. No matter where
you put it, make sure that it's oriented with the curve
going towards the center of the machine and the
extruder should be facing the filament guide hole in
the top plate as demonstrated in Fig. 12-13. The
arrow in the upper right corner is pointing to the
filament guide hole. Install the mount to the top
plate using two #6-32 1" screws.
Fig. 12-13:EZStruder mount installed.
