Rostock MAX v2 Assembly Guide
Strip about 1/8" of the insulation of the bare ends of the thermistor wires and solder them on top
of the solder pads that are located to the red wire. One wire per pad and take care to avoid solder
bridges. When you're finished, cover the thermistor signal wire pads and the two power wire pads with
Kapton tape to guard against a short circuit.

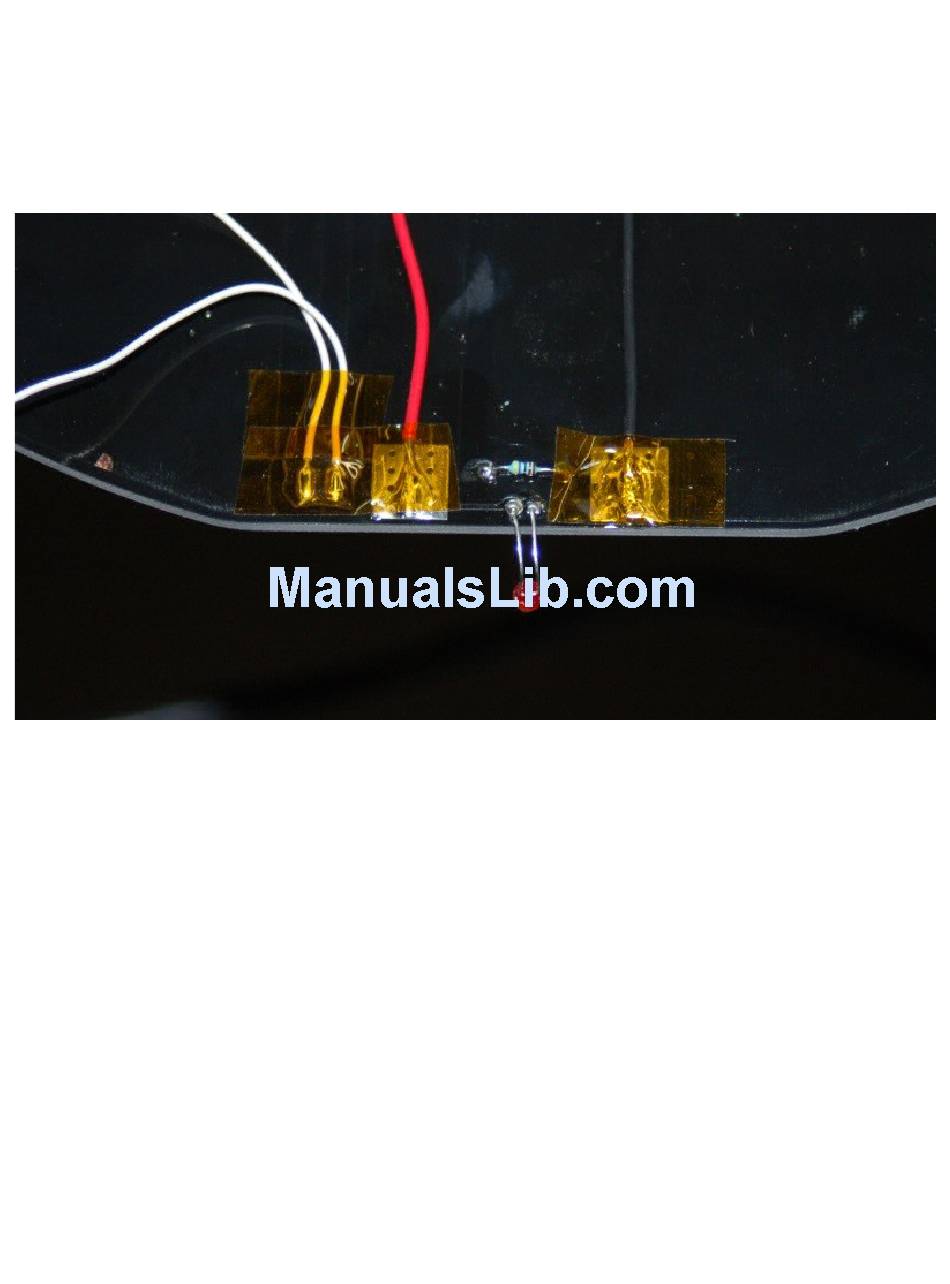

Fig. 5A-13:Thermistor wires installed and covered with Kapton tape.
