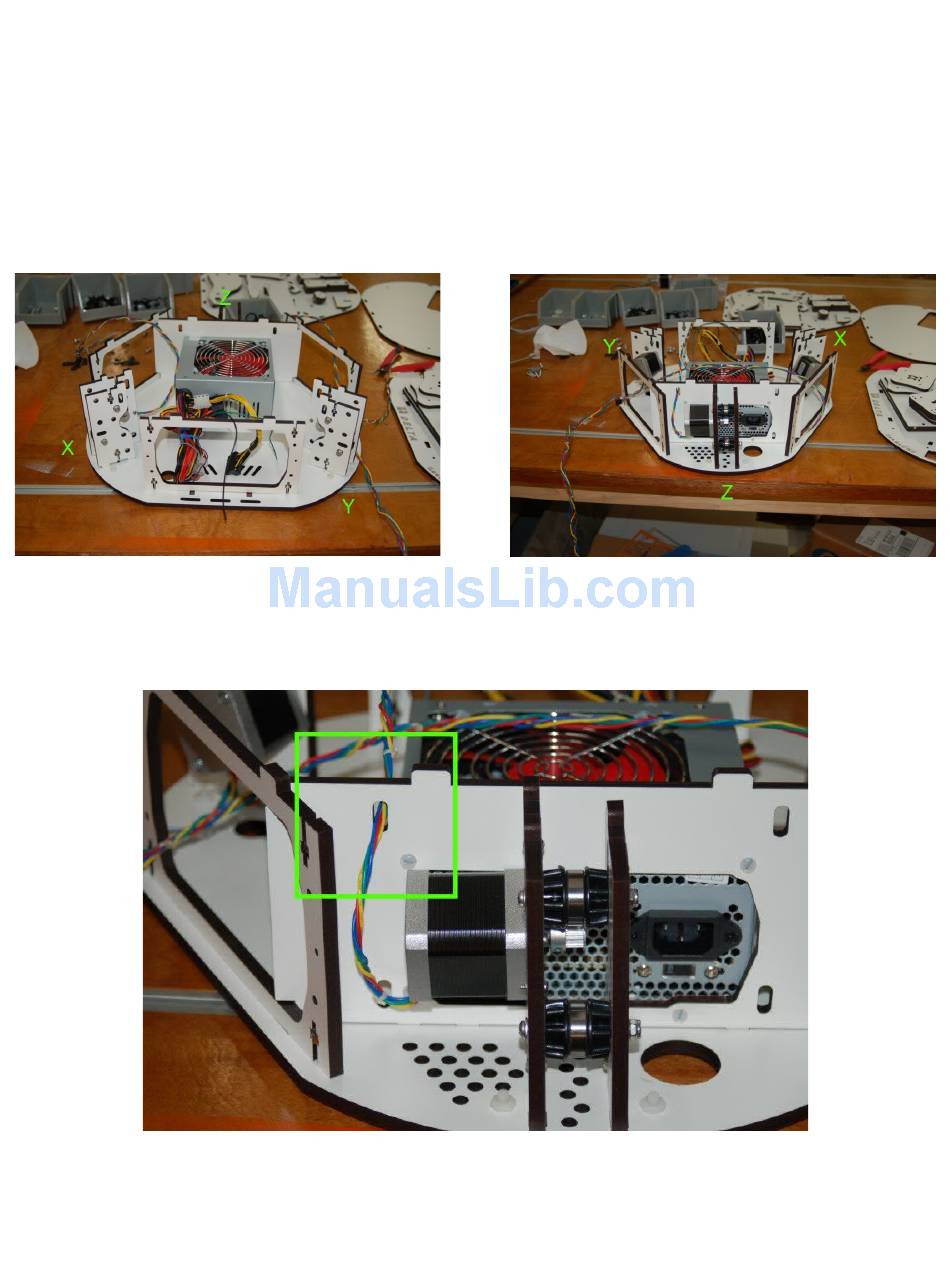

Finish assembling the other two tower supports. Install the three tower supports as shown in
Figs. 4-34 and 4-35. The X (on the left) and Y (on the right) axis tower supports are opposites of one
another as you can see in Fig. 4-34. Use six of the #6-32, 1" Stainless Steel pan head screws to attach
the tower supports to the base. Leave them a bit loose as you did with the other base plate mounted
parts. You should label each stepper motor wire with the name of the axis you're installing it on. This
will make it easier to identify when it comes time to plug them into the RAMBo controller.
Fig. 4-34: X and Y tower supports installed.
Now route the Z axis stepper motor wires through the hole in the power supply mounting plate
as shown in Fig. 4-36.
Fig. 4-36: Routing the stepper wiring.
Rostock MAX v2 Assembly Guide
Fig. 4-35: Z axis tower support installed.
