Rostock MAX v2 Assembly Guide
Installing the RAMBo Cooling Fan
Using two short wire ties, mount the 40mm cooling fan as shown.

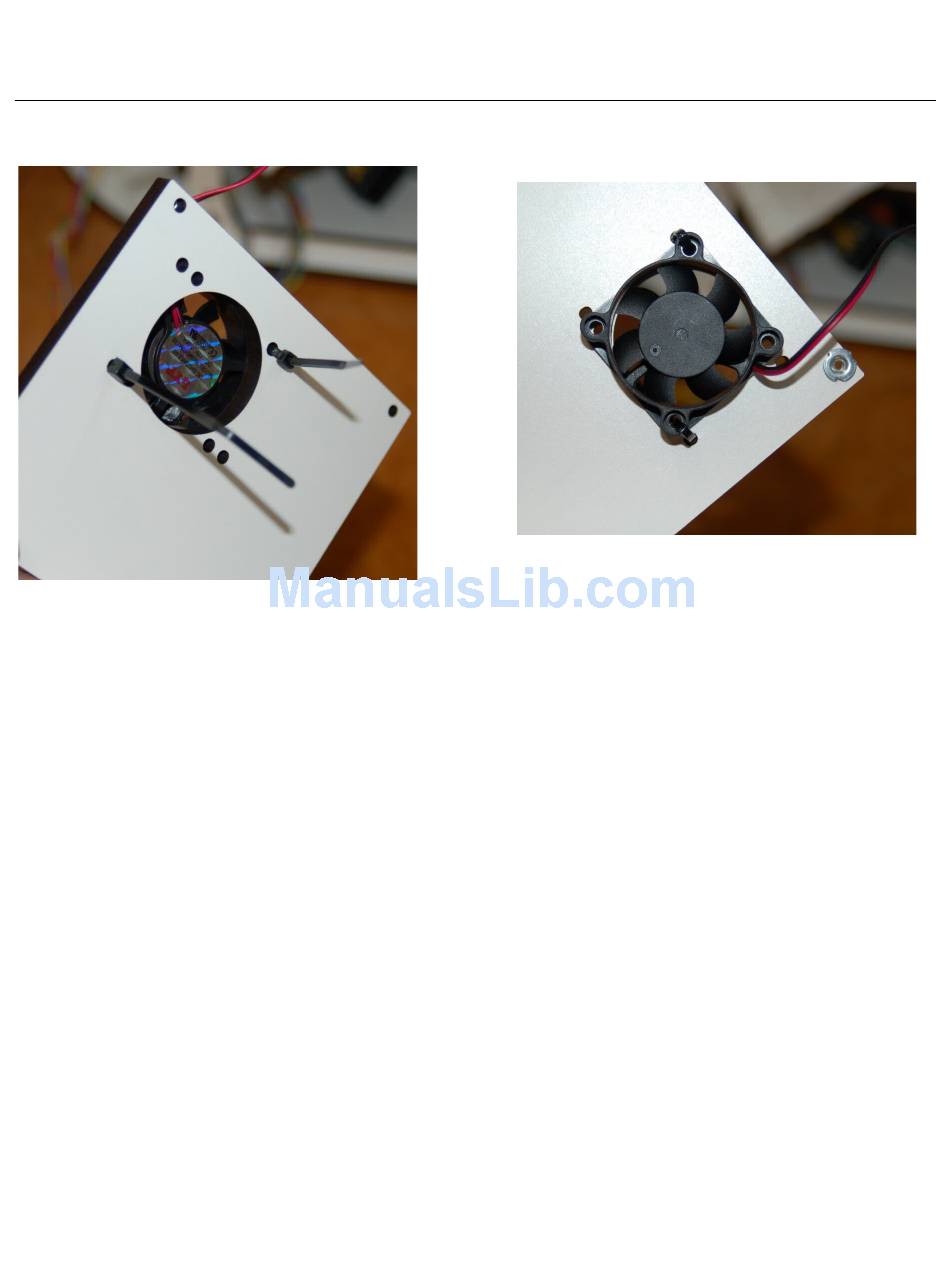

Fig. 18-3:Back view.
Fig. 18-2:Mounting the cooling fan.
Make sure you've got the fan oriented as shown in order for it to draw air from the correct side.
Trim the wire tie "tails" flush with the wire tie head.
181
