Install two of the idler bearing assemblies on the two screws you just inserted and add the tower
support plate on top. Add two #6-32 flat washers and two #6-32 Nylon lock nuts and tighten them
down only enough to start engaging the Nylon. The looseness will help install it in the bottom plate
and assist in fitting the top plate.

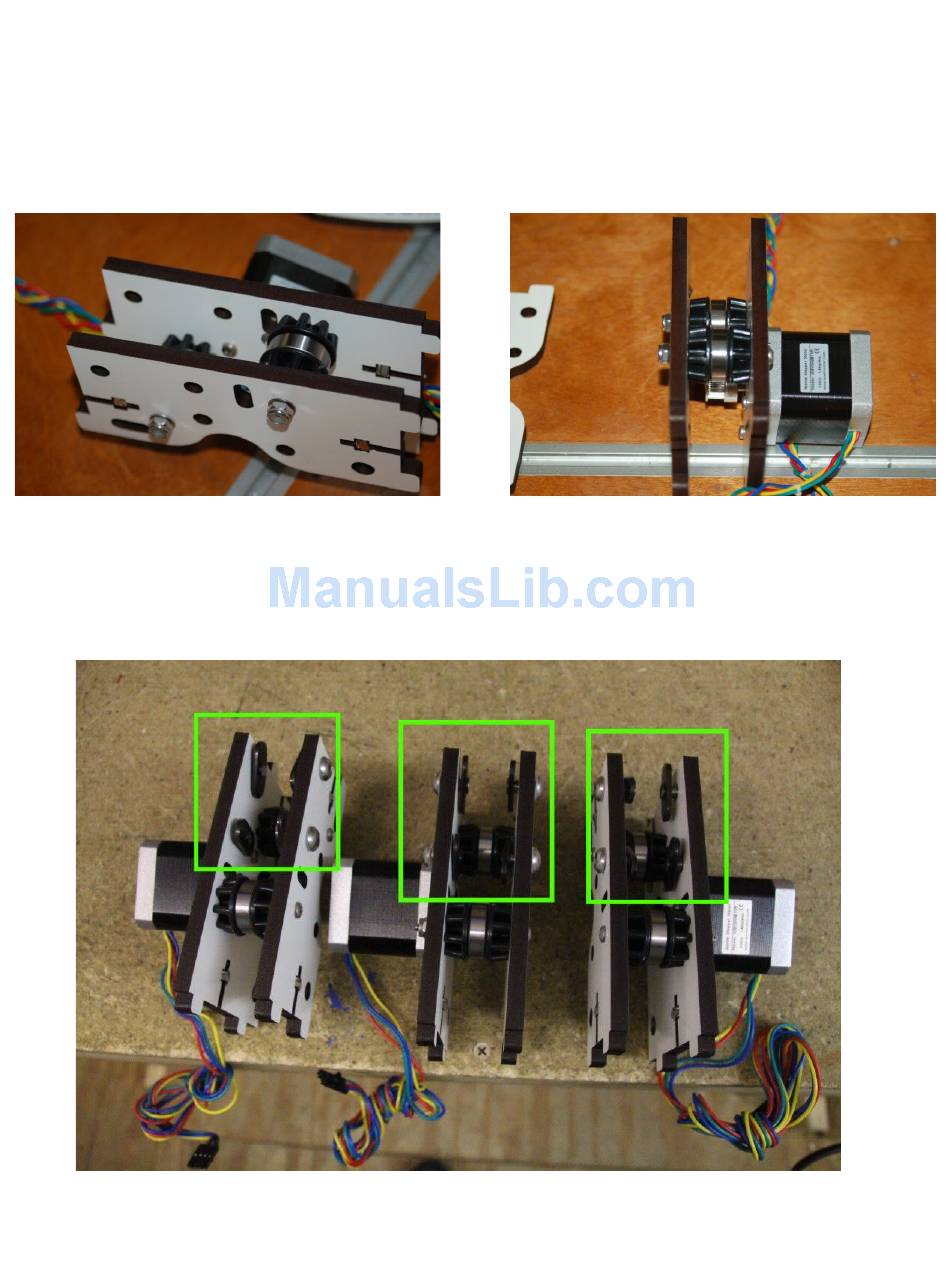

Fig. 4-31: Assembled Tower Support.
Now you need to install four of the ¼-20 cap head screws and four T-Slot nut plates into each
tower support assembly. Only thread the T-Slot nut plates enough to feel the end of the screw catch all
the threads in the plate – the space is needed to make the tower installation easier.
Fig. 4-35: Tower mounting hardware installed.
Rostock MAX v2 Assembly Guide
Fig. 4-32: Assembled Tower Support.
47
