Installing the Thermistor, Power LEDs and Power Wires

Before you begin wiring up the Onyx, please place a short length of Kapton tape over the
thermistor hole in the center of the heated bed. This will protect the top of the thermistor as well as
prevent RTV from leaking on the top of the board. You'll notice that the thermistor hole is offset from
the center – this gives a more accurate bed temperature reading. If your kit includes a Rev6 Onyx, then
the thermistor will be installed in the center, just like the Rev3 and prior.
Once you've got the Kapton applied, open up the small package that contains the thermistor and
the PTFE tubing. Cut two 1-1/4" tubes from the PTFE tubing and slide them on to the thermistor leads.
You'll then bend the thermistor the same way you did when prepping the hot end.
Rostock MAX v2 Assembly Guide

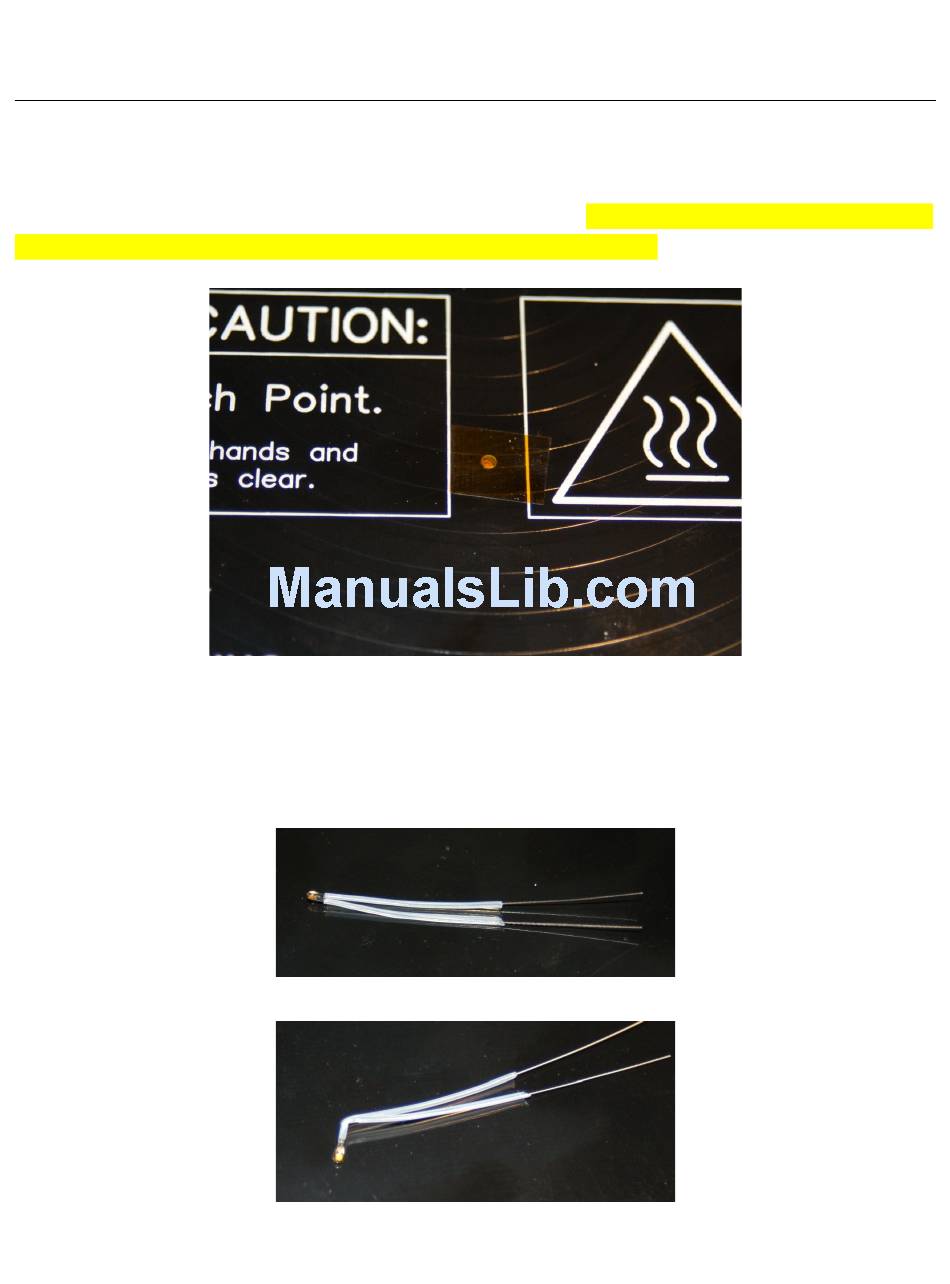

Fig. 5C-4: Covering the thermistor hole.
Fig 5C-4: Tubing over the thermistor leads.
Fig 5C-5: Thermistor and tubing bent.
