Strip off 3/8" of insulation from the 18ga black & red wires coming from the hot end loom and
crimp them into the connectors as shown.
At this point, I want you to cover the crimp connectors with a bit of Kapton tape – this will help
prevent accidental shorts. The photos of the crimp connectors from this point forward have omitted the
Kapton tape for clarity.
Fig. 13-12:Positive lead bent "up".
Carefully solder the white wire to one thermistor
lead and the green wire to the other. You may notice
that the thermistor wires shown are different than the
ones you're working with. This is okay and was a
change made after the photographs were originally
taken.
Rostock MAX v2 Assembly Guide

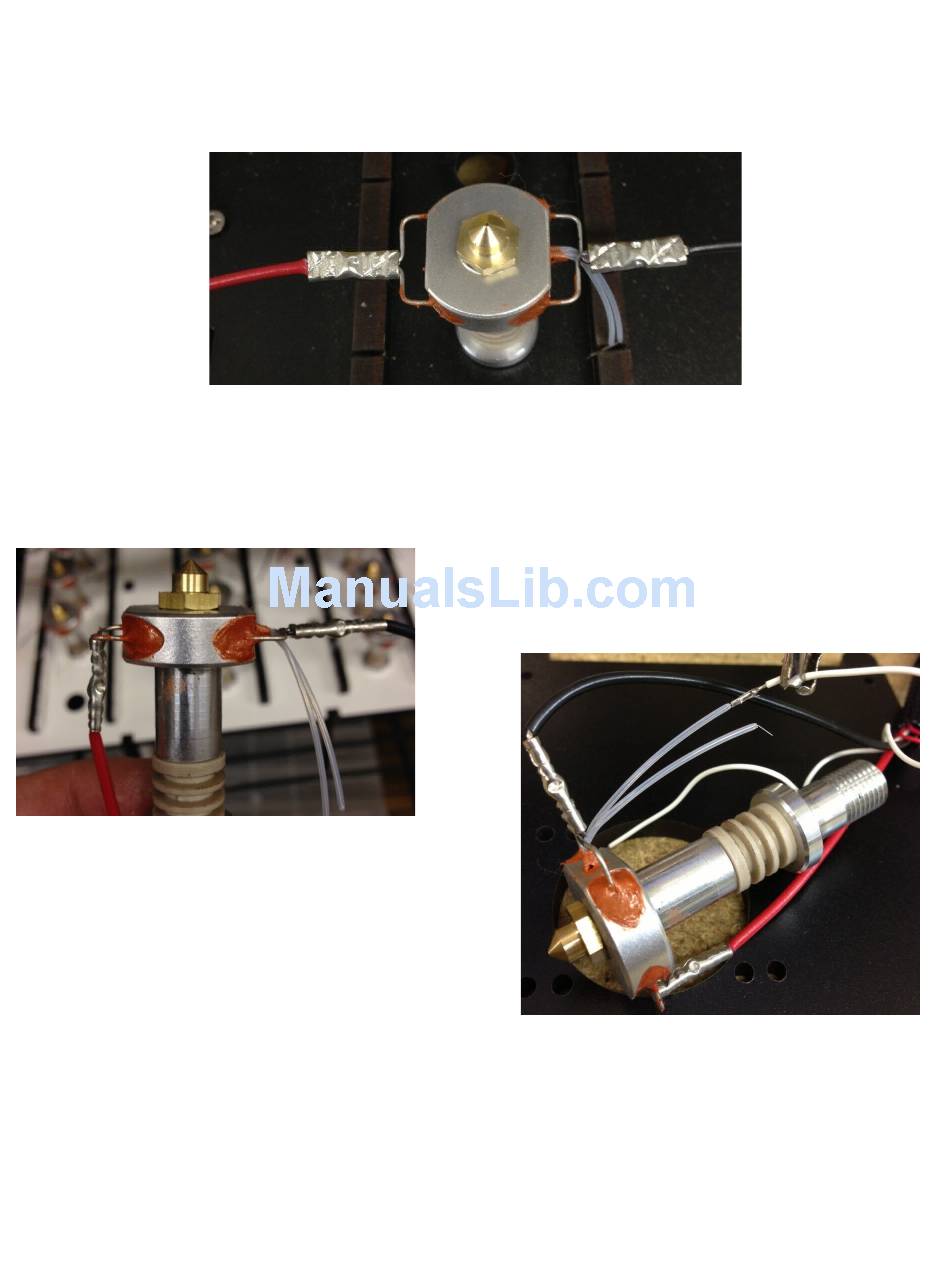

Fig. 13-11:Power wires connected.
Bend the resistor legs connected to the red wire
"up" as shown in Fig. 13-12.
Fig. 13-13:Attaching thermistor leads.
