13 – Wiring & Assembling the Hot End, Bowden Tube

Preparing the Hot End Wiring

For this task, you'll need the short length of heat shrink tubing and the 3/8" Black, Expandable
Mesh Loom.
Before we begin the task of installing the wire loom, I want to you take a second and tie down
the hot end wires. This is an earlier step that was delayed until this point.
In order to avoid electrical interference of
the X axis end-stop, you need to tie down the hot
end wires coming out of the Z axis tower such that
they cross the end stop wires exactly as shown in
Fig. 13-2. By crossing over the end-stop wires
perpendicularly, interference can be avoided.
Rostock MAX v2 Assembly Guide

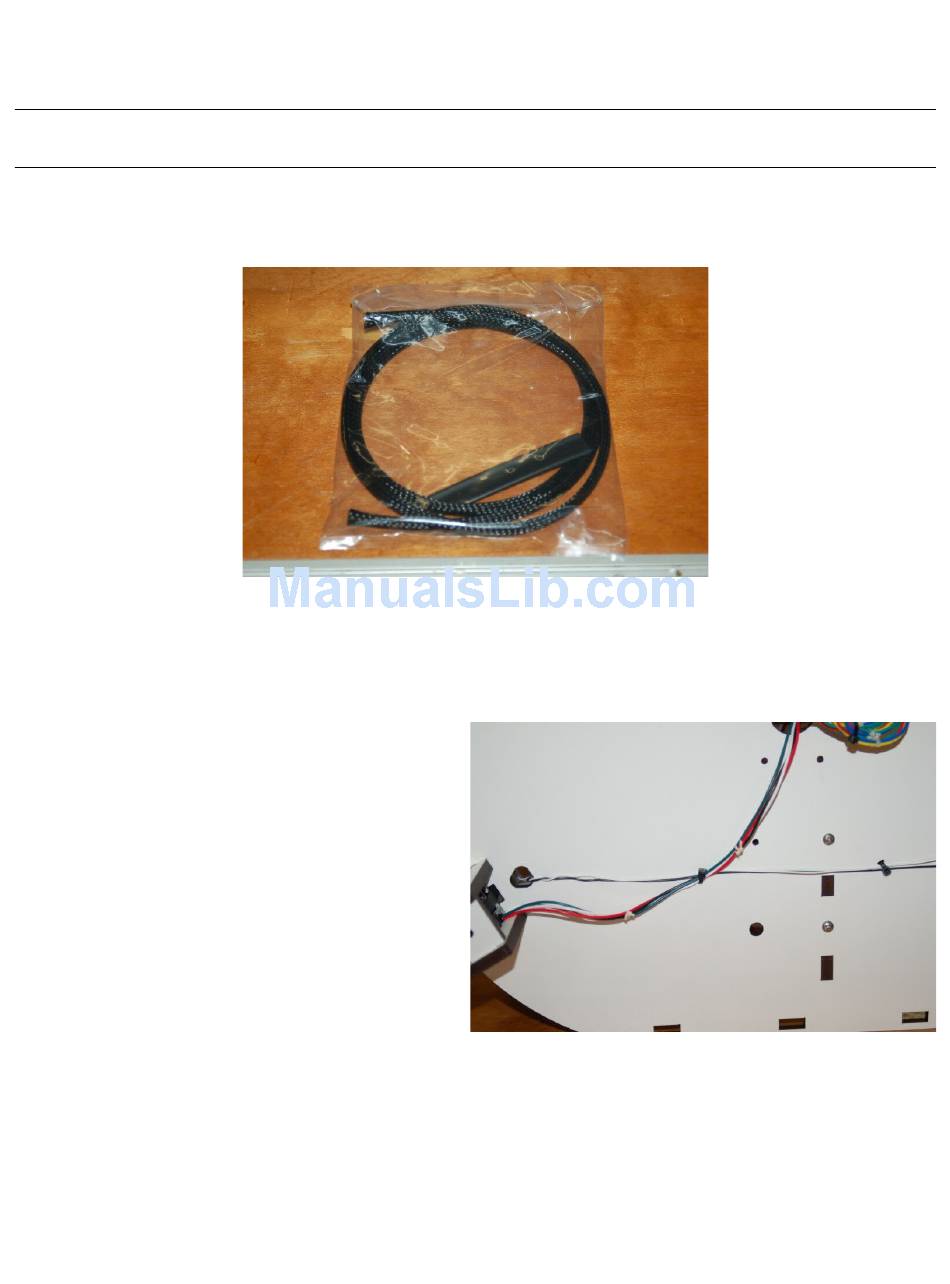

Fig. 13-1:Expandable Mesh Loom and Heat Shrink
Tubing.
Fig. 13-2:Hot end wires crossing the end stop
wires.
