Setting the Towers

Now it's time to set each tower in its respective tower support assembly.
We're going to start with the Z axis – remember, it's the one right behind the power supply.
In order to set the Z axis tower (the one with the 18ga wires!), you'll need to turn the T-Slot nut
plates such that they're oriented vertically as shown below.
Don't tilt your head, the picture is leaning a little bit. :)
Rostock MAX v2 Assembly Guide

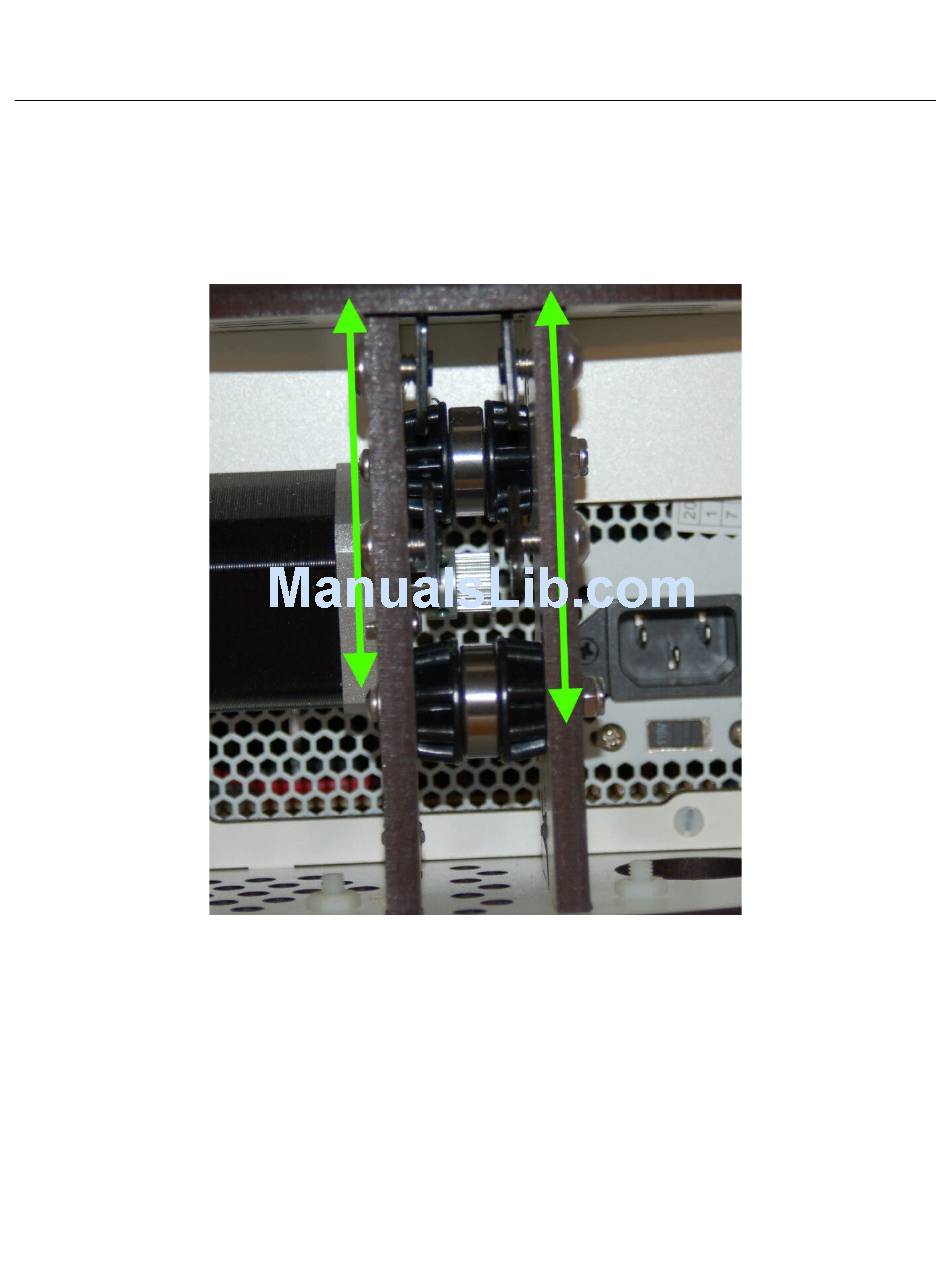

Fig. 6-11: T-Slot nut plate orientation.
