Carefully bend the acrylic over the Z axis tower and insert it just behind the vertical support on
the right. You want to set the panel such that the edge of the acrylic comes into contact with the stop
screw that's highlighted in green. Please be careful – if the acrylic is bent too much, it can break.
Rostock MAX v2 Assembly Guide

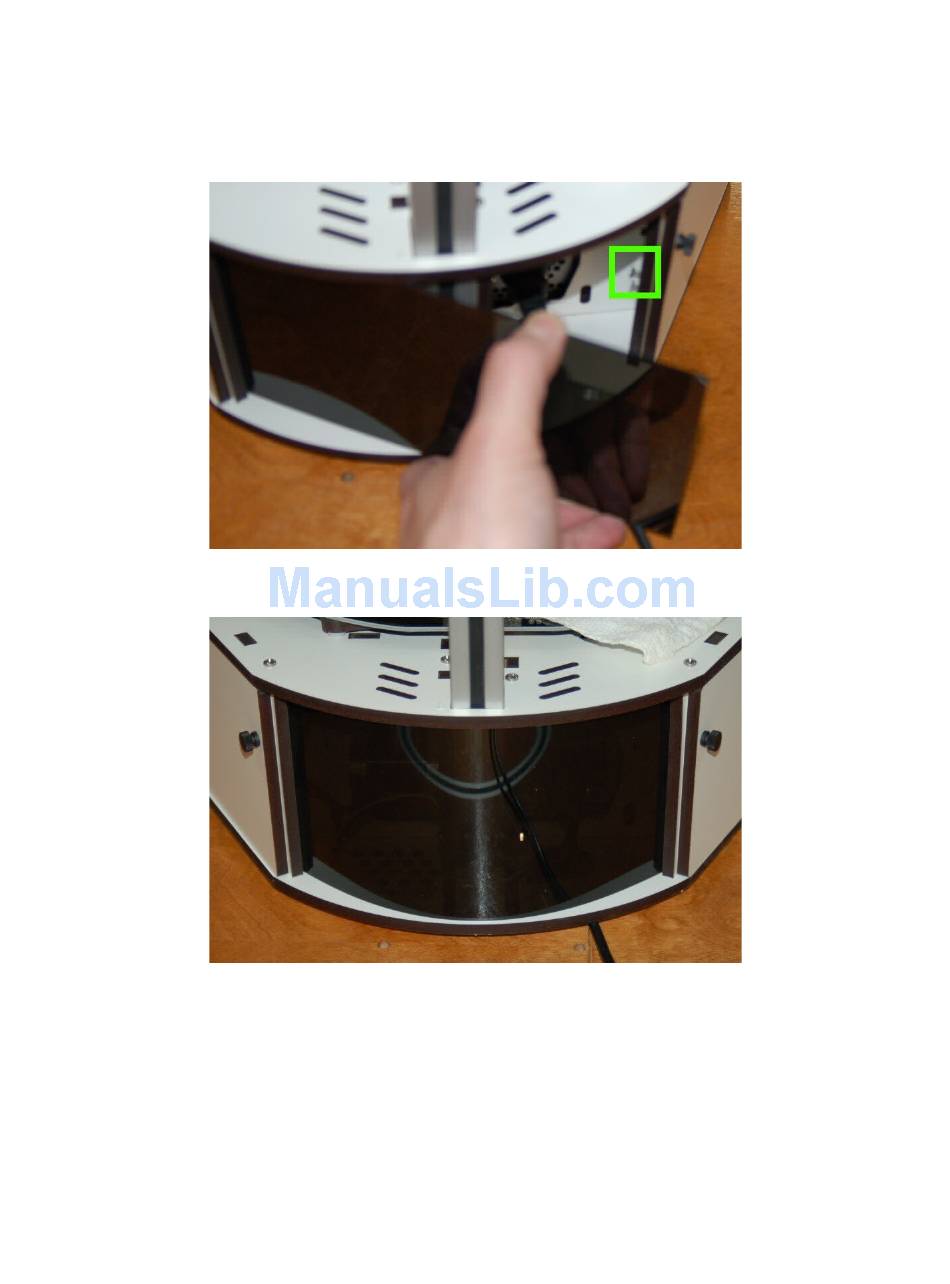

Fig. 19-13:Setting the back panel
Fig. 19-14:Panel installed.
204
