Rostock MAX v2 Assembly Guide
Mounting the EZStruder
For this step, you'll need the following components:
1. (___) Assembled EZStruder (1)
2. (___) EZStruder Mounting Bracket (1)
3. (___) EZStruder Mounting Spacers (3)
4. (___) #6-32, 2" Pan Head Screws (2)
5. (___) #6-32 Nylon Lock Nuts (2)

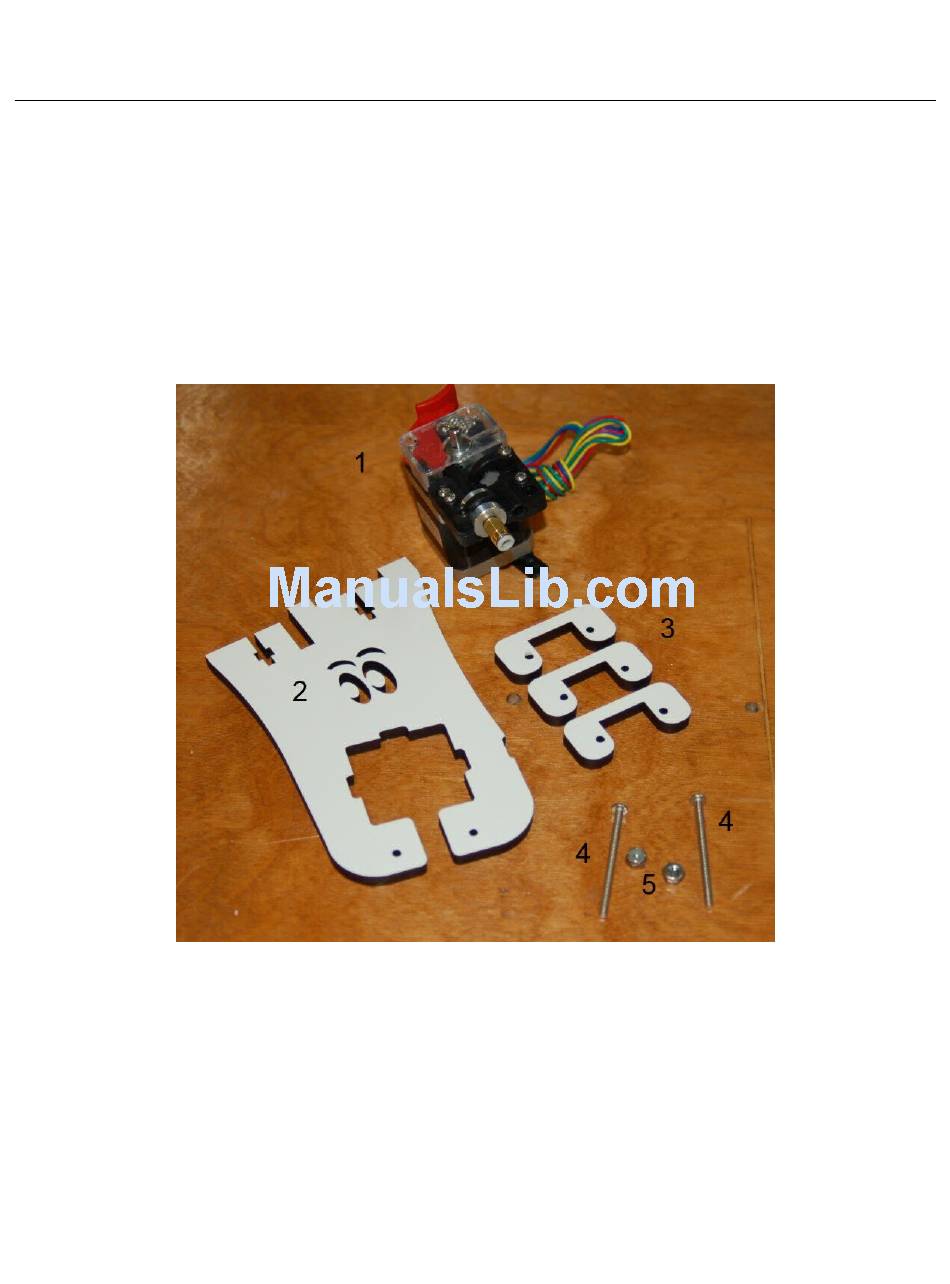

Fig. 12-7:EZStruder Mounting Parts
141
