SeeMeCNC Rostock MAX v2 Assembly Manual page 15

Rostock MAX v2 Assembly Guide

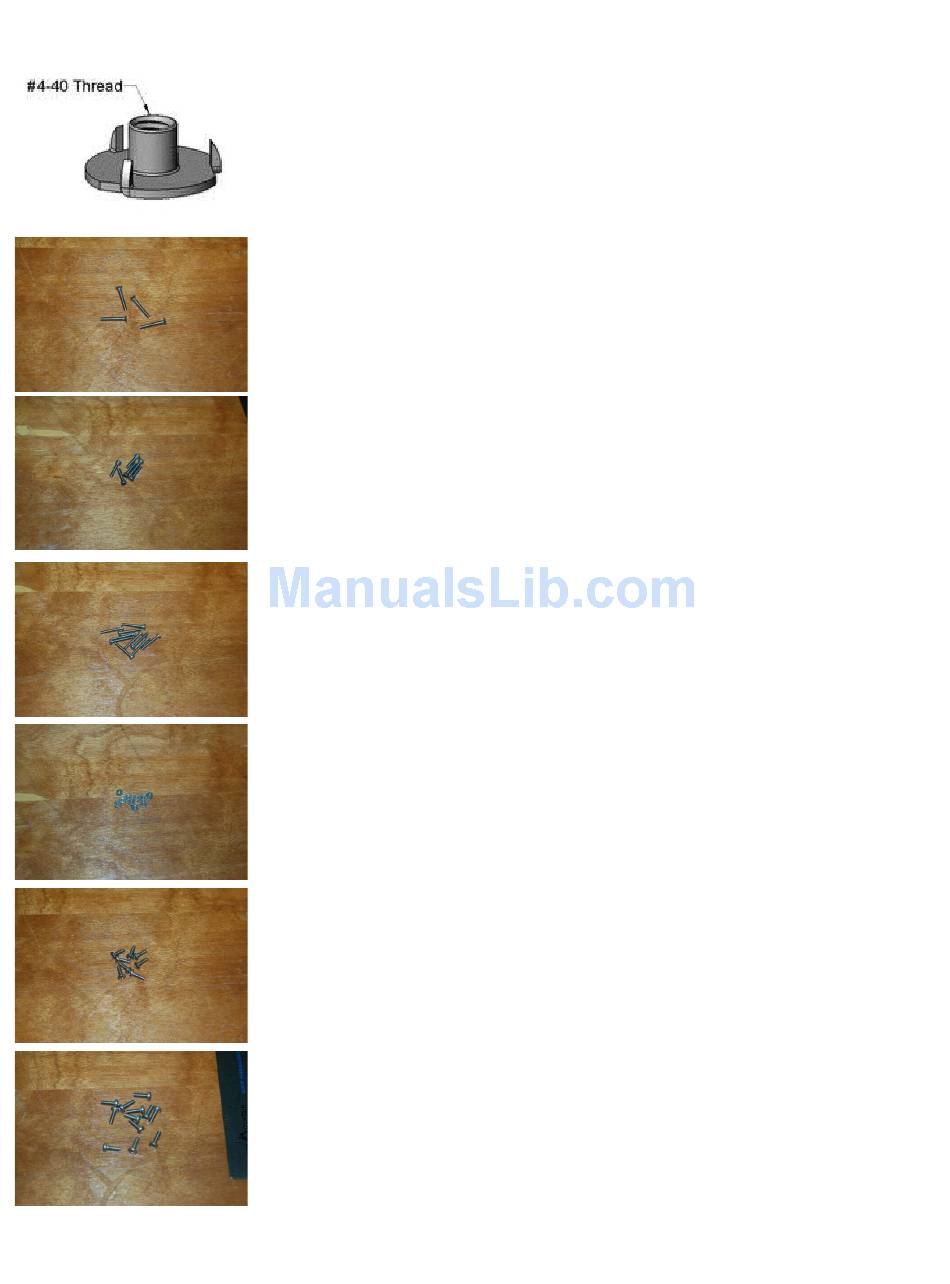

(___) 10 each, #4-40 T-Nuts. Used for belt clamps and RAMBo
mounting.
(___) 4 each, #4-40, 3/4" Phillips Flat Head Machine screws. Used for
mounting the RAMBo Controller.
(___) 6 each, #4-40, 1/2" Stainless Steel Socket Head Cap screws. Used
for the belt clamps.
(___) 14 each, #2-56, 5/8" Pan Head Phillips Machine screws. Used for
LCD mounting and end-stop switch mounting.
(___) 14 each, 2-56 Finish Nuts. Used for LCD mounting and end-stop
switch mounting.
(___) 14 each, #4, 3/8" Phillips Pan Head Sheet Metal screws. Used for
LCD sides and tower alignment guides.
(___) 12 each, M3x.5, 10mm Pan Head Machine screws. Used for
mounting the stepper motors.
15
